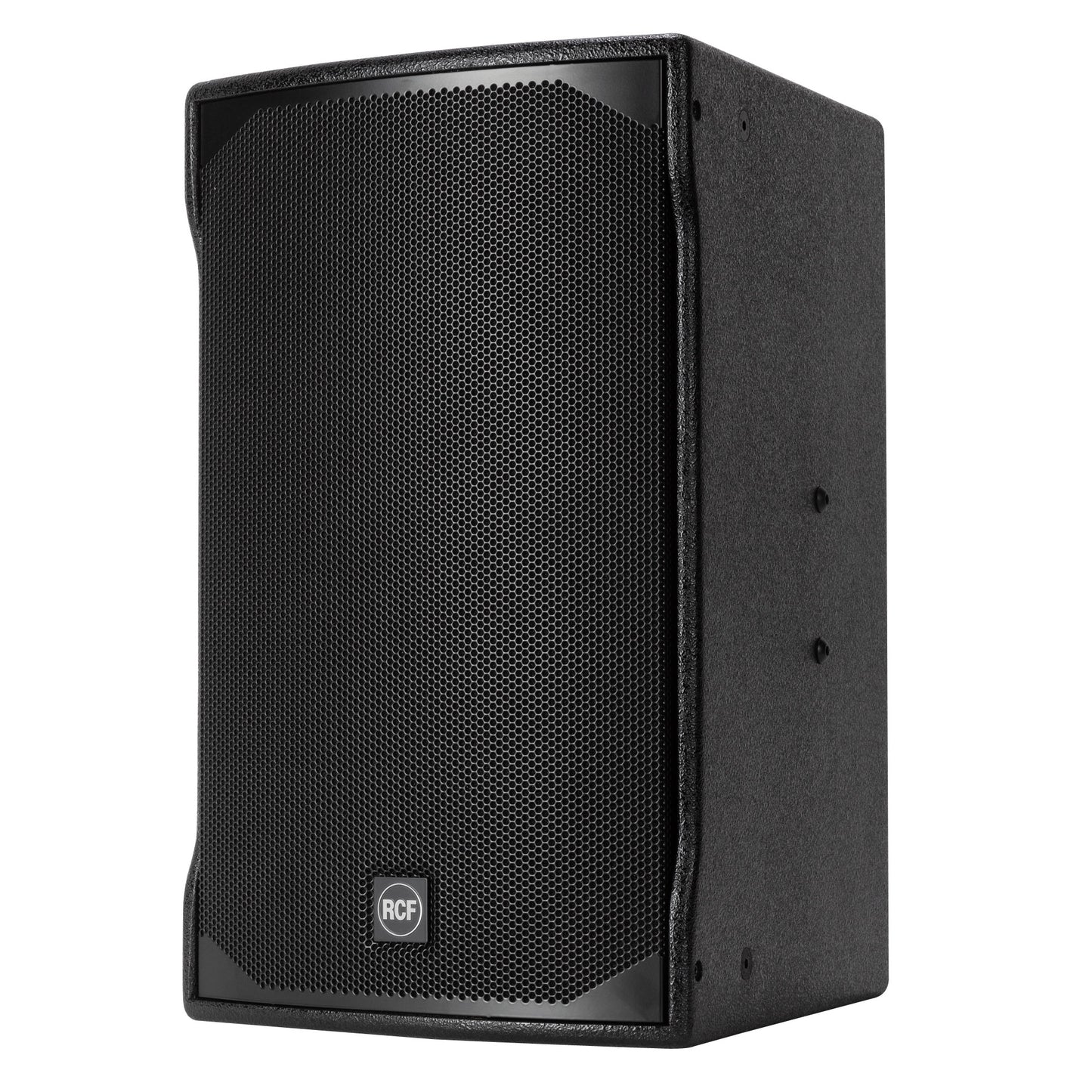

RCF E-MAX-3112 Passive 12" 2-way Speaker

SKU: E-MAX-3112
$849.00 inc. VAT
-39% $1,399.00 $849.00 inc. VAT

E-MAX 3112
FULL RANGE HIGH POWER NEARFIELD SPEAKER
  • 129 DB SPL MAX
  • 350 W AES POWER RATING
  • 55 – 20000 HZ FREQUENCY RANGE
  • 1” COMPRESSION DRIVER, 12” WOOFER HI RESOLUTION TRANSDUCERS
  • 129 dB SPL Max
  • 350 W AES power rating
  • 55 – 20000 Hz Frequency Range
  • Plywood coated with black textured acrylic paint
  • 1” Compression Driver, 12” Woofer Hi Resolution Transducers
  • Perfectly Tuned Crossover
The full-range passive two-way RCF E-MAX series has been specifically designed as club systems for entertainment, to achieve the best nearfield quality, vocal coherence and a stable tonal balance even at high volume. The heavy-duty speaker cabinet is made of plywood coated with black textured acrylic paint. Featuring a 12” woofer with a 2.5” voice and a 1.0” compression driver with 1.4” voice coil. The LICC crossover design includes an electronic protection on high-frequency device. The rotatable 90°x70° horn and the available mounting accessories allow installation of the loudspeaker either vertically or horizontally in any environment and architectural constraint.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
55 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
70°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
98 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
350 W RMS

PEAK POWER HANDLING:
1400 W PEAK

RECOMMENDED AMPLIFIER:
700 W

PROTECTIONS:
ACTIVE MOSFET

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1.0'' neo, 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
50 W AES, 100 W PEAK

SENSITIVITY (DB, 1W @ 1M):
106 dB, 1W @ 1m

WOOFER:
12'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HARDWARE:
17 x M10 2 x M8

HANDLES:
1 Top

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plywood
Size
WIDTH:
381 mm / 15 inches

DEPTH:
422 mm / 16.61 inches

HEIGHT:
614 mm / 24.17 inches

WEIGHT:
22 kg / 48.5 lbs
Shipping informations
PACKAGE WEIGHT:
26 kg / 57.32 lbs

PACKAGE DEPTH:
493 mm / 19.41 inches

PACKAGE WIDTH:
449 mm / 17.68 inches

PACKAGE HEIGHT:
684 mm / 26.93 inches
