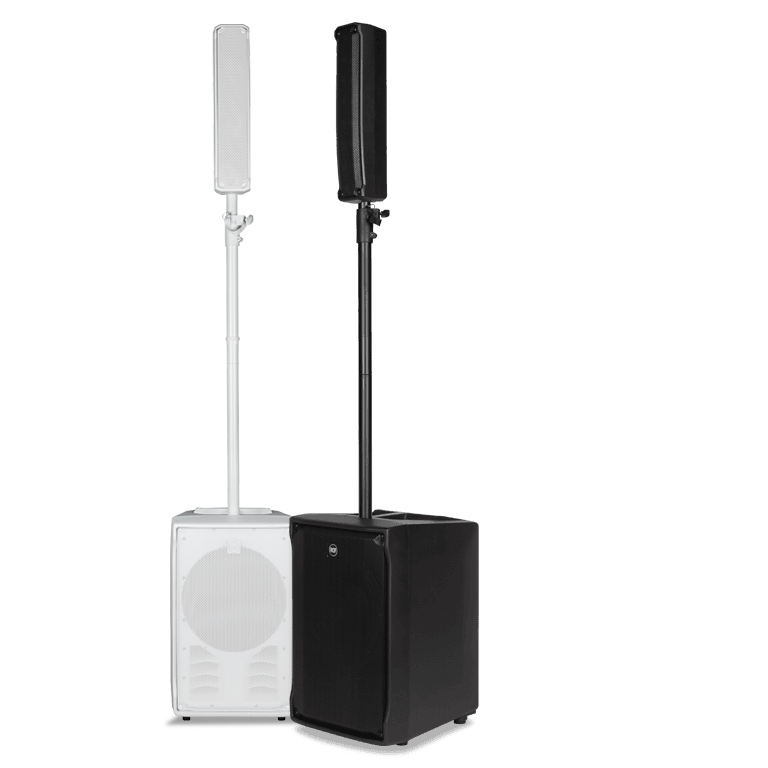

RCF EVOX JMIX8 W Composite Active Portable PA System with 8 Channel Bluetooth Mixer (White)

SKU: EVOX JMIX8 W
$1,549.00 inc. VAT
-18% $1,899.00 $1,549.00 inc. VAT
EVOX JMIX8
ACTIVE TWO WAY ARRAY MUSIC SYSTEM
  • 128 DB MAX SPL
  • 1400 WATT 2-WAY POWER
  • 8 IN DIGITAL MIXER WITH MULTIPLE FX, AMP SIMULATOR AND REMOTE CONTROL
  • DSP PROCESSING WITH FIRPHASE
  • 128 dB Max SPL
  • 1400 Watt 2-way power
  • 8 IN Digital Mixer with multiple FX, Amp Simulator and Remote Control
  • DSP Processing with FiRPHASE
  • 12" woofer, high power 2.5" voice coil
  • 8 x 2" ultra compact fullrange 1.0" voice coil
  • 2350x350x450 mm 92.5x13.77x17.71 in (HxWxD)
  • 24,4/53.8 kg/lbs
Taking the EVOX J Series one step further, RCF has added an 8-input Digital Mixer to the system. The onboard processing power of the innovative Z.CORE DSP provides not only full mix functions; it includes high-quality instrument FX and AMP simulations. An EVOX iOS/Android-compatible app allows to manage the JMIX8. Adding Bluetooth audio and Hi-Z instrument input,the EVOX JMIX8 combines the quality and reliability of RCF transducers and amplification with a powerful remote controllable 8-channel digital mixer
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 20000 Hz

HORIZONTAL COVERAGE ANGLE:
120°

MAX SPL @ 1M:
128 dB

VERTICAL COVERAGE ANGLE:
30°
Transducers
FULLRANGE:
8 x 2.0'', 1.0'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT CONNECTORS:
XLR, Jack

INPUT SENSITIVITY:
-2 dBu/+4 dBu

INPUT SIGNAL:
bal/unbal

OUTPUT CONNECTORS:
XLR
Processor section
CONTROLS:
Volume, Boost, Mic/Line

CROSSOVER FREQUENCIES:
220 Hz

LIMITER:
Soft Limiter

PROTECTIONS:
Thermal, RMS
Power section
CONNECTIONS:
VDE

COOLING:
Convection

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

TOTAL POWER:
1400 W Peak, 700 W RMS
Electronic specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 Hz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
0.004% A-Weighted
Processing
A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

DYNAMIC RANGE:
108

PROCESSING CHANNELS:
8

SIGNAL PROCESSING:
32 Bit Floating Point
Inputs
A/D DYNAMIC RANGE (DB):
108 dB

GAIN RANGE:
0 dB ÷ 45 dB

GAIN SELECTION:
0 dB ÷ 45 dB

STEREO LINE GAIN SELECTION:
0 dB ÷ 45 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-114 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
3 kohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
11 kohm

LOW CUT:
20 Hz ÷ 1000 dB

MIC:
4

PHANTOM POWER +48V:
Yes

REMOTE CONTROLLED STORABLE GAIN:
Yes

STEREO LINE:
2

STEREO LINE INPUT IMPEDENCE (KOHM):
11 kohm
Outputs
AUX OUTPUT:
1

AUX SEND:
1
Outputs specifications
AUX OUT IMPEDANCE (OHM):
150 ohm

AUX OUT LEVEL (DBU):
19 dBu

D/A DYNAMIC RANGE (DB):
108 dB

MAIN OUT IMPEDANCE (OHM):
150 ohm

MAIN OUT LEVEL (DBU):
19 dBu
Compressors
RCF COMPRESSORS:
4 mono (6 preset)
EQ
DESCRIPTION:
3 Band EQ: High and Low band shelving, Mid Band with sweepable frequencyGraphic 7 Band EQ on Main Mix and AUX send.

INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving
Auxiliary sends
AUX:
1 PRE/POST

FX POST:
1
Internal Effects
MULTIFX INSERT EFFECTS:
1

SEND EFFECTS:
1
Mastering processors
MAIN OUT PROCESSORS:
1
USB audio
PLAY TRK:
2
Other features
FOOTSWITCH:
Yes
Electrical specifications
POWER SUPPLY:
Internal
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

COLOR:
Black, White

GRILLE:
Steel
HANDLES:
1 Top
Size
DEPTH:
460 mm / 18.11 inches
HEIGHT:
623 mm / 24.53 inches
WEIGHT:
22.2 kg / 48.94 lbs
WIDTH:
400 mm / 15.75 inches
Shipping informations
PACKAGE DEPTH:
581 mm / 22.87 inches
PACKAGE HEIGHT:
676 mm / 26.61 inches
PACKAGE WEIGHT:
29 kg / 63.93 lbs
PACKAGE WIDTH:
451 mm / 17.76 inches
