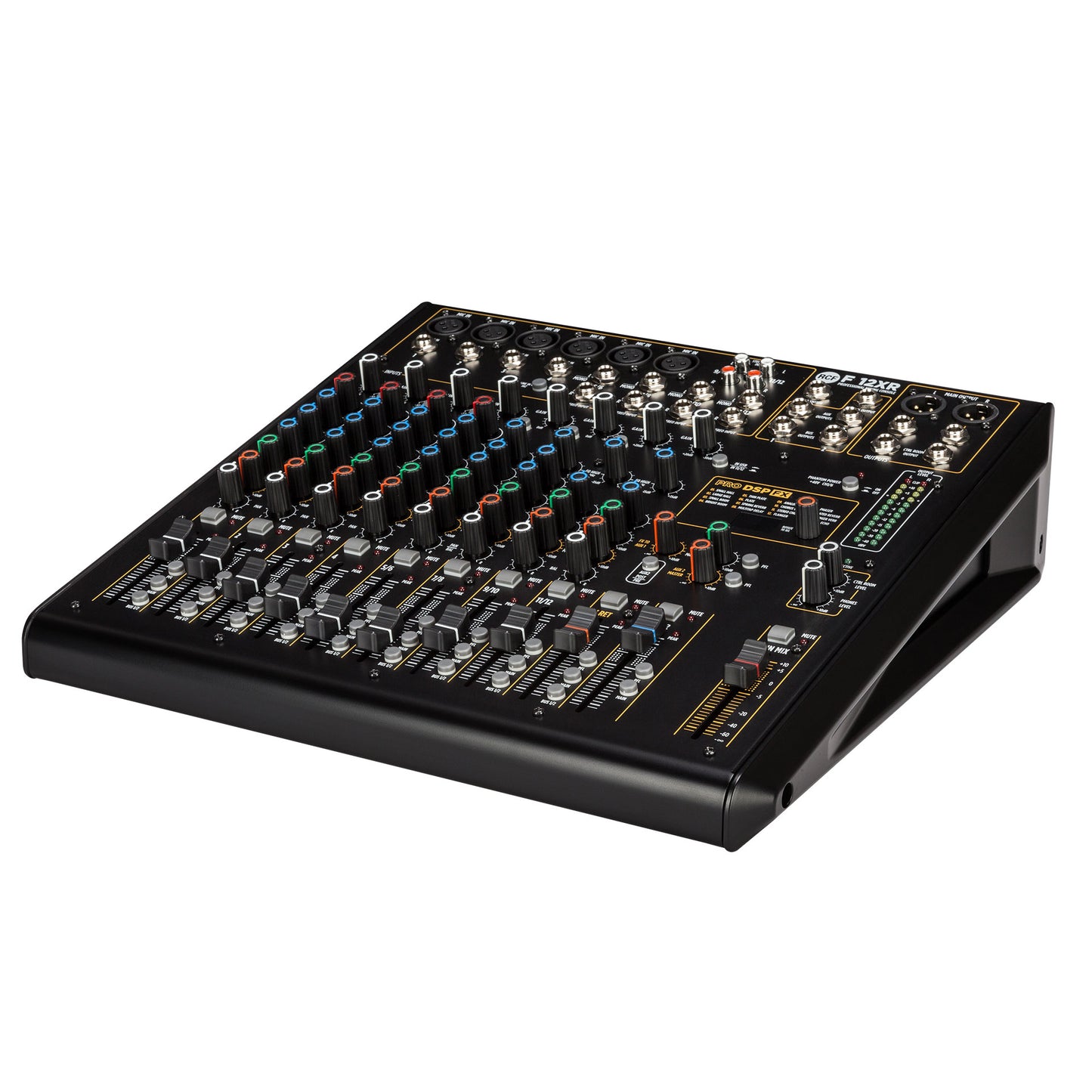

RCF F12-XR 12 Channel Mixer w/ FX and Recording

SKU: F12-XR
$319.00 inc. VAT
-20% $399.00 $319.00 inc. VAT

F 12XR
12-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
  • STURDY METAL CHASSIS
  • PRO DSP FX ONBOARD WITH 16 PRESETS
  • STEREO RECORDING AND PLAYBACK VIA USB PORT
  • BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB port
  • Balanced main output audio path from input to output
  • 4 single control compressors
  • Mono channels provided with 3-band EQ. 2-band EQ on stereo channels.
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply
The F 12XR features 6 Mic Preamp Inputs, 4 Mono Line Inputs, 4 Stereo Line Inputs plus multi-FX and Recording via USB port, with balanced +28dB main output (Stereo XLR + TRS) and 4 single control compressors. The Mono channels are provided with 3-band EQ and Stereo with 2-band. The mixer features 16 PRO DSP internal presets and 2 Aux sends (1 pre,1pre/post fader). It also features a stereo output bus and 60mm faders.
SPECIFICATIONS
Electrical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (W):
24 W
Inputs
GAIN RANGE:
0 dB ÷ -50 dB

GAIN SELECTION:
20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
14 kohm

LINE:
4

LINE INPUT IMPEDANCE (KOHM):
21 kohm

LOW CUT:
80 Hz

MIC:
6

PHANTOM POWER +48V:
Yes

STEREO LINE:
4

STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:
15 kohm
Outputs
MAIN MIX:
1

CONTROL ROOM:
Yes

FX SEND:
1

AUX SEND:
1

AUX OUTPUT:
2

GROUP OUT:
1

PHONES:
1
Outputs specifications
MAIN OUT LEVEL (DBU):
28 dBu

AUX OUT LEVEL (DBU):
28 dBu

GROUP OUT LEVEL (DBU):
28 dBu

PHONES OUT IMPEDANCE (OHM):
150 ohm
Compressors
RCF COMPRESSORS:
n° 4 Single Control Compressors on Channels 1 to 4
EQ
INPUT CHANNELS EQ:
2 Shelving / 1 Generic

DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ 1,250 kHz Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX:
1 PRE/POST

FX POST:
1
Internal Effects
SEND EFFECTS:
1
USB audio
TYPE:
B

PLAY TRK:
2

REC TRK:
2

SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0 kHz
Other features
FOOTSWITCH:
Yes
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size
DEPTH:
355 mm / 13.98 inches

HEIGHT:
97 mm / 3.82 inches

WEIGHT:
4.5 kg / 9.92 lbs

WIDTH:
373 mm / 14.69 inches
Shipping informations
PACKAGE DEPTH:
425 mm / 16.73 inches

PACKAGE HEIGHT:
140 mm / 5.51 inches

PACKAGE WEIGHT:
5.5 kg / 12.13 lbs

PACKAGE WIDTH:
400 mm / 15.75 inches
