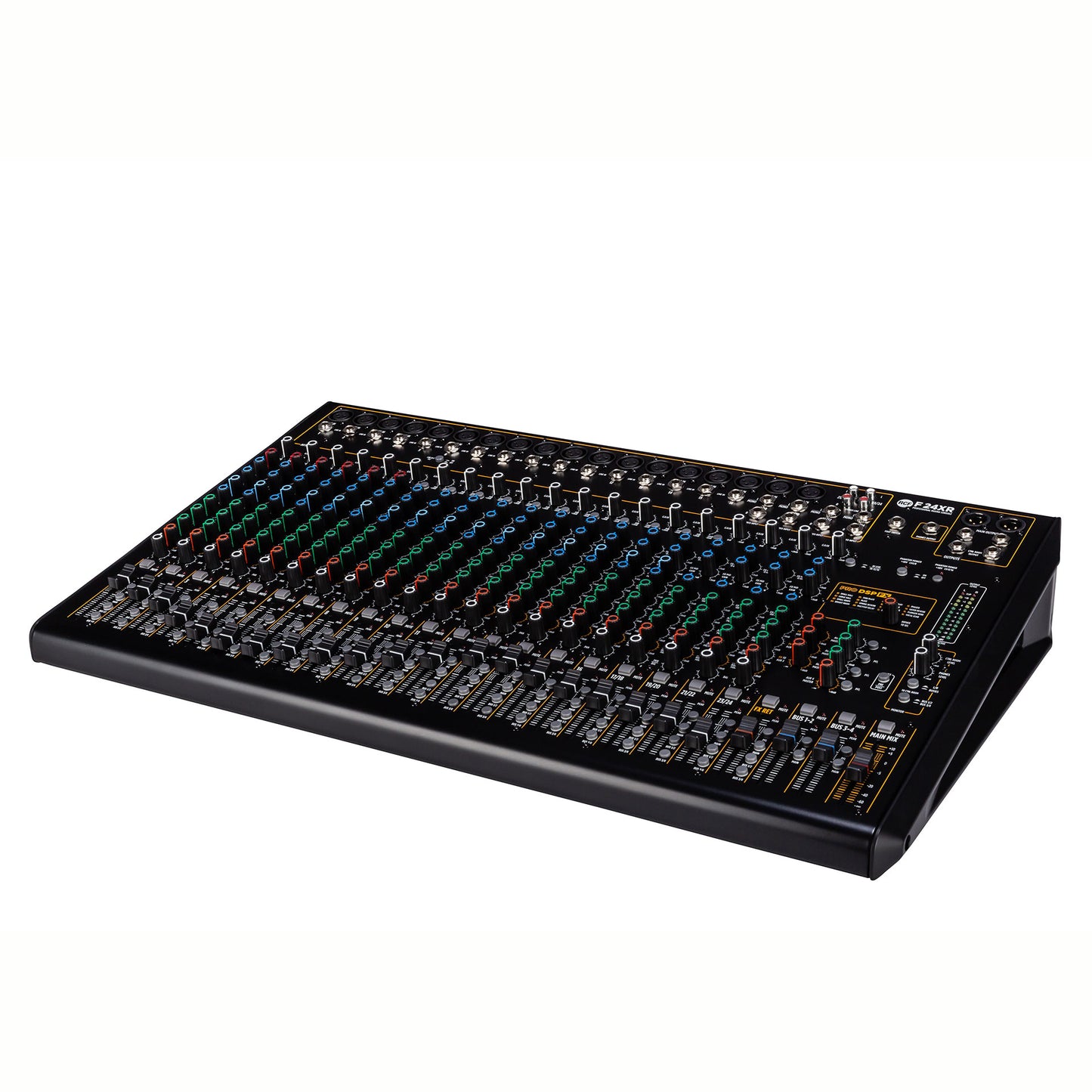

RCF F24-XR 24 Channel Mixer w/ FX and Recording

SKU: F24-XR
$699.00 inc. VAT
-13% $799.00 $699.00 inc. VAT
F 24XR
24-CHANNEL MIXING CONSOLE WITH MULTI-FX & RECORDING
  • STURDY METAL CHASSIS
  • PRO DSP FX ONBOARD WITH 16 PRESETS
  • STEREO RECORDING AND PLAYBACK VIA USB PORTS
  • BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT
  • Sturdy Metal Chassis
  • PRO DSP FX onboard with 16 presets
  • Stereo Recording and Playback via USB ports
  • Balanced main output audio path from input to output
  • 6 single control compressors
  • Mono channels provided with 3-band EQ, with selectable mid frequency
  • Robust, compact and attractive design.
  • Designed and Engineered in Italy
  • Internal Universal Power Supply
  • 60 mm faders
The F 24XR features 18 mic preamp inputs, 16 mono line inputs, 4 stereo line inputs, multi-FX, 6 single control compressors, stereo recording and playback via USB port, balanced main output (Stereo XLR + TRS) . The mono channels are provided with 3-band EQ, with selectable mid frequency, and 3-band for stereo channels. The mixer features 16 PRO DSP internal presets, two stereo output busses and 4 aux sends (2 pre, 1 pre/post, 1 post). It also features 60mm faders.
SPECIFICATIONS
Electrical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (W):
70 W
Inputs
GAIN RANGE:
0 dB ÷ -50 dB

GAIN SELECTION:
20 dB ÷ -30 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
1

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
14 kohm

LINE:
16

LINE INPUT IMPEDANCE (KOHM):
21 kohm

LOW CUT:
80 Hz

MIC:
18

PHANTOM POWER +48V:
Yes

STEREO LINE:
4

STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:
14 kohm
Outputs
MAIN MIX:
1

CONTROL ROOM:
Yes

FX SEND:
1

AUX SEND:
3

AUX OUTPUT:
4

GROUP OUT:
2

PHONES:
1
Outputs specifications
MAIN OUT LEVEL (DBU):
28 dBu

AUX OUT LEVEL (DBU):
28 dBu

GROUP OUT LEVEL (DBU):
28 dBu

PHONES OUT IMPEDANCE (OHM):
150 ohm

PHONES OUT LEVEL (DBM):
10 dBm
Compressors
RCF COMPRESSORS:
n°6 Single Control Compressors on Channels 1 to 6
EQ
INPUT CHANNELS EQ:
1 Semi Parametric / 2 Shelving

DESCRIPTION:
High: +/-15 dB @ 10 kHz Shelving Mid: +/-15 dB @ Freq. sel. from 100Hz to 8kHz - Bell Low: +/-15 dB @ 100 Hz Shelving
Auxiliary sends
AUX:
2 PRE / 1 PRE/POST

FX POST:
1
Internal Effects
SEND EFFECTS:
1
USB audio
TYPE:
B

PLAY TRK:
2

REC TRK:
2

SUPPORTED SAMPLE RATE (KHZ):
44.1, 48.0 kHz
Other features
FOOTSWITCH:
Yes
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size
DEPTH:
406 mm / 15.98 inches

HEIGHT:
107 mm / 4.21 inches

WEIGHT:
9.5 kg / 20.94 lbs

WIDTH:
720 mm / 28.35 inches
Shipping informations
PACKAGE DEPTH:
524 mm / 20.63 inches

PACKAGE HEIGHT:
201 mm / 7.91 inches

PACKAGE WEIGHT:
12.5 kg / 27.56 lbs

PACKAGE WIDTH:
759 mm / 29.88 inches
