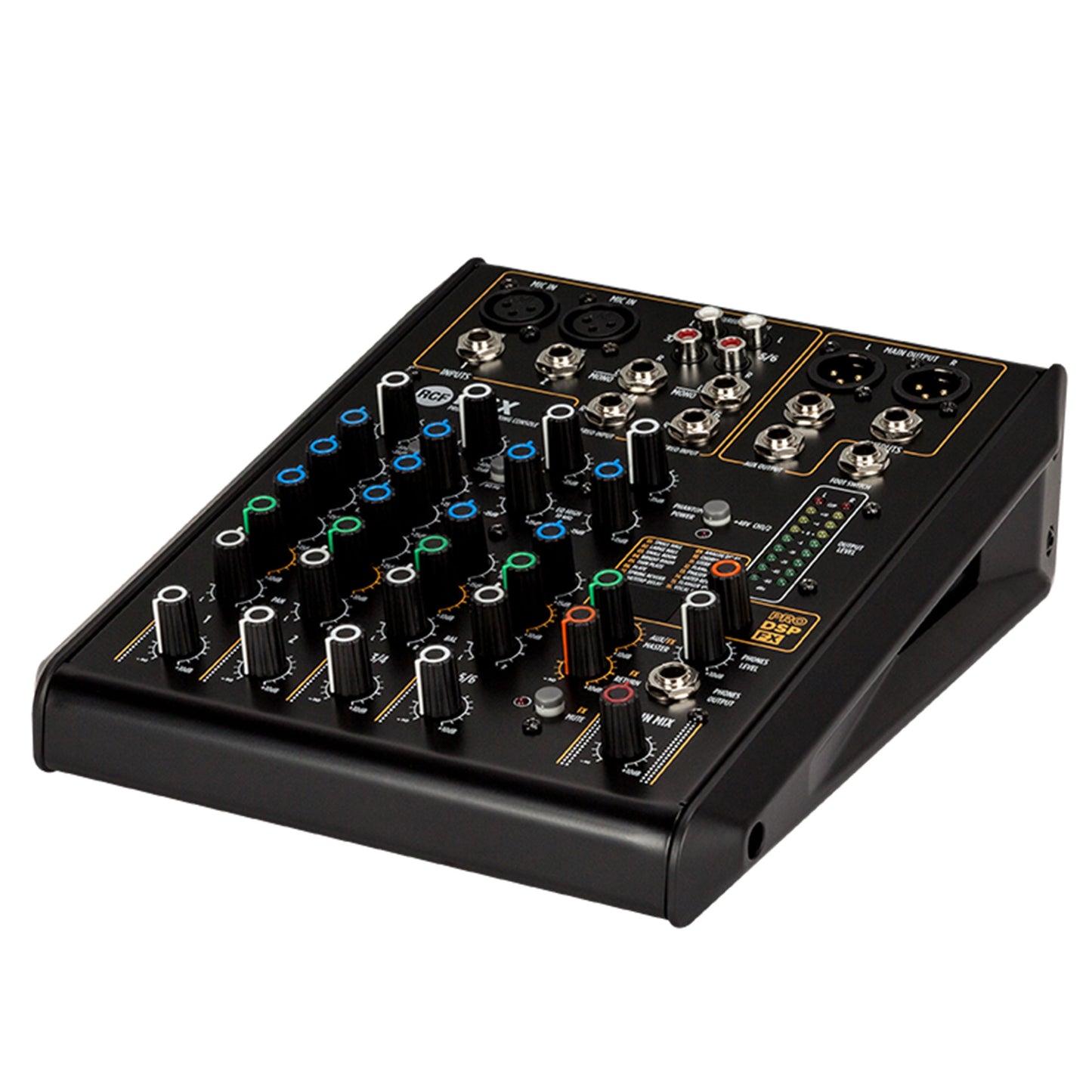

RCF F6-X 6 Channel Mixer w/ FX

SKU: F6-X
$159.00 inc. VAT
-20% $199.00 $159.00 inc. VAT
F 6X
6 CHANNEL MIXING CONSOLE WITH MULTI-FX
  • 2 MIC/LINE INPUTS
  • 2 STEREO LINE INPUTS
  • ONE AUX/FX (POST)
  • BALANCED MAIN OUTPUT AUDIO PATH FROM INPUT TO OUTPUT
  • 2 Mic/Line inputs
  • 2 stereo line inputs
  • One Aux/FX (post)
  • Balanced main output audio path from input to output
  • 16 presets PRO DSP internal FX
  • Sturdy metal chassis
  • External universal power supply
  • Designed and engineered in Italy
RCF’s next generation F Series mixers builds on the rich analog legacy found in the professional E Series, featuring high quality sound in four formats from 6 to 16 channels. A powerful tool for the musician and the sound enthusiast, entirely conceived and designed by the RCF R&D team. Housed in a sturdy metal chassis, each mixer features a full balanced audio path from input to output and the unique PRO DSP FX: 16 professional effects such as Reverbs (Halls, Rooms, Plates, Spring), Delays (Mono, Stereo and Multitap), Chorus, Flangers and Echoes. The models F-10XR, F-12XR, and F-16XR, include an USB audio interface, for stereo recording on computer-based DAW and 2-channel playback.
SPECIFICATIONS
Electrical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 20DB GAIN, 0DBU OUT (% A-WEIGHTED):
<0,02% A-Weighted

POWER SUPPLY:
External

VOLTAGE REQUIREMENTS:
100 V - 240 V

POWER CONSUMPTION (W):
12 W
Inputs
GAIN RANGE:
0 dB ÷ -50 dB

GAIN SELECTION:
20 dB ÷ -30 dB

INPUT NOISE LEVEL (DBU A-WEIGHTED):
-124 dBu A-Weighted

MIC INPUTS IMPEDANCE (KOHM):
14 kohm

LINE:
2

LINE INPUT IMPEDANCE (KOHM):
21 kohm

LOW CUT:
80 Hz

MIC:
2

PHANTOM POWER +48V:
Yes

STEREO LINE:
2

STEREO LINE GAIN SELECTION:
20 dB ÷ -30 dB

STEREO LINE INPUT IMPEDANCE:
15 kohm
Outputs
MAIN MIX:
1

FX SEND:
1

AUX OUTPUT:
1

PHONES:
1
Outputs specifications
MAIN OUT LEVEL (DBU):
28 dBu

AUX OUT LEVEL (DBU):
28 dBu

PHONES OUT IMPEDANCE (OHM):
150 ohm
EQ
INPUT CHANNELS EQ:
2 Shelving / 1 Generic

DESCRIPTION:
High:+/-15 dB @ 10 kHz Shelving, Mid:+/-15 dB @ 1,250 kHz, Bell Low:+/-15 dB @ 100 Hz Shelving.
Auxiliary sends
FX POST:
1
Internal Effects
SEND EFFECTS:
1
Other features
FOOTSWITCH:
Yes
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black
Size
DEPTH:
255 mm / 10.04 inches

HEIGHT:
79 mm / 3.11 inches

WEIGHT:
1.8 kg / 3.97 lbs

WIDTH:
210 mm / 8.27 inches
Shipping informations
PACKAGE DEPTH:
260 mm / 10.24 inches

PACKAGE HEIGHT:
122 mm / 4.8 inches

PACKAGE WEIGHT:
2.75 kg / 6.06 lbs

PACKAGE WIDTH:
378 mm / 14.88 inches
