Home » RCF HD12-A MK5 Active 1400W 2-way 12" Powered Speaker
RCF

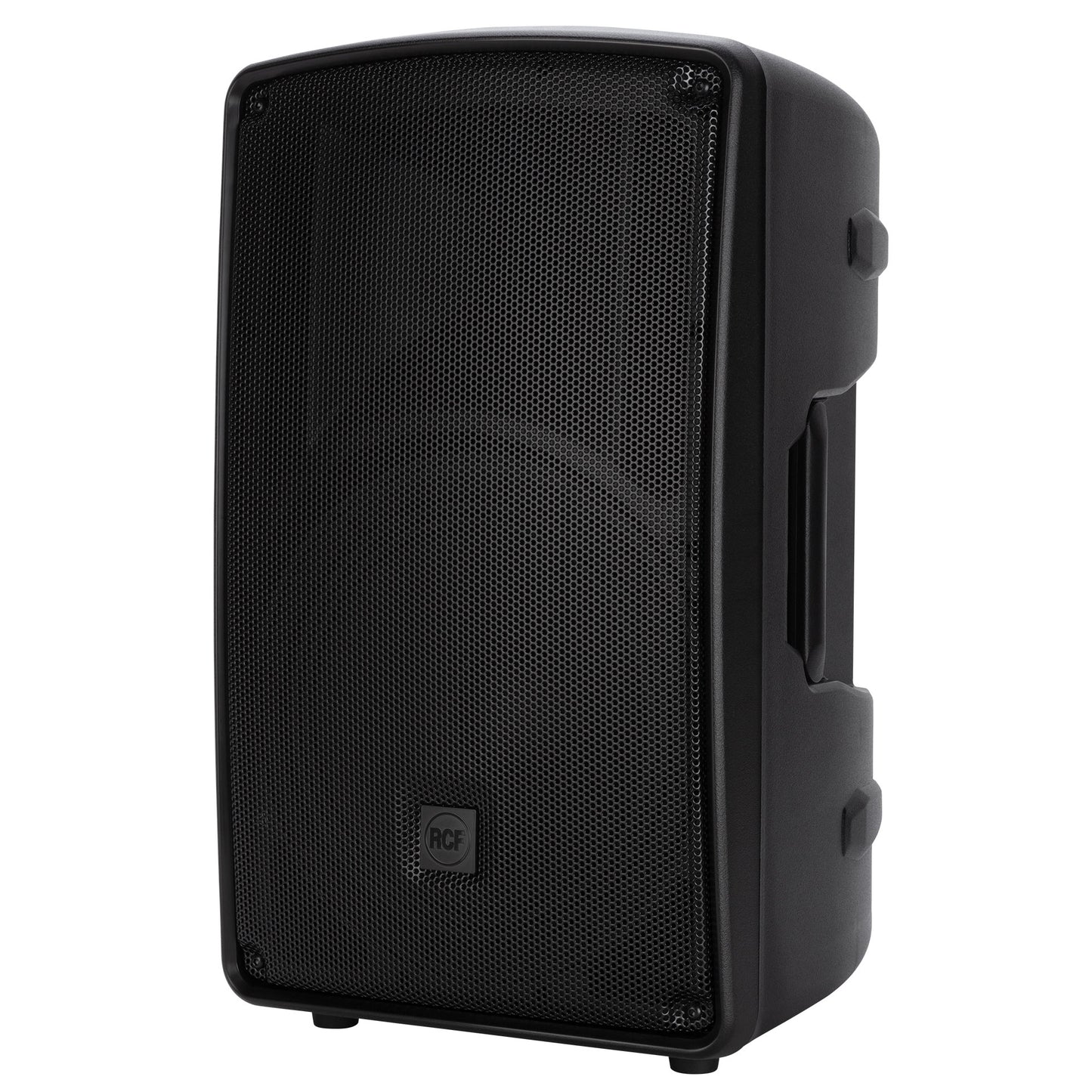

RCF HD12-A MK5 Active 1400W 2-way 12" Powered Speaker

SKU: HD12-A MK5
$649.00 inc. VAT
-24% $849.00 $649.00 inc. VAT
HD 12-A MK5
ACTIVE TWO-WAY SPEAKER
  • 130 DB MAX SPL
  • 1400 WATTS 2-WAY AMPLIFIER
  • DSP PROCESSING WITH FIRPHASE AND BASS MOTION CONTROL
  • 1.4” HF DRIVER
  • 130 dB Max SPL
  • 1400 Watts 2-way amplifier
  • DSP Processing with FiRPHASE and Bass Motion Control
  • 1.4” HF driver
  • 12” woofer, high power, 2.5” voice coil
  • 90° x 60°, wide dispersion constant directivity horn
  • Silent Fan-less Class-D Amplifier
  • Mylar/Ferrite driver - Kapton former coil
HD 12-A mk5 active speaker boosts performance with a high-power professional 12" woofer and a 1.4" HF driver, a 1400W 2ch Class-D amplifier, and innovative FiRPHASE and Bass Motion Control processing. Vocals are natural, the sound is clear at long distances, SPL power is stable at very high levels. The strength of HD series speakers comes from decades of experience building gear for the touring industry, equipping this compact cabinet with power and reliability expected for life on the road. Elegantly designed, the lightweight polypropylene cabinet with internal reinforcement offers maximum strength. The speaker also includes a steel pole mount, threaded inserts for rigging, and rubber handgrips. D-LINE offers working DJs and musicians professional sound designed with music in mind.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 top, 1 x M10 bottom, 3 x M6 bottom

HANDLES:
1 Top, 2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
647 mm / 25.47 inches

WIDTH:
380 mm / 14.96 inches

DEPTH:
380 mm / 14.96 inches

WEIGHT:
18.3 kg / 40.34 lbs
Shipping informations
PACKAGE HEIGHT:
760 mm / 29.92 inches

PACKAGE WIDTH:
500 mm / 19.69 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
21.4 kg / 47.18 lbs
