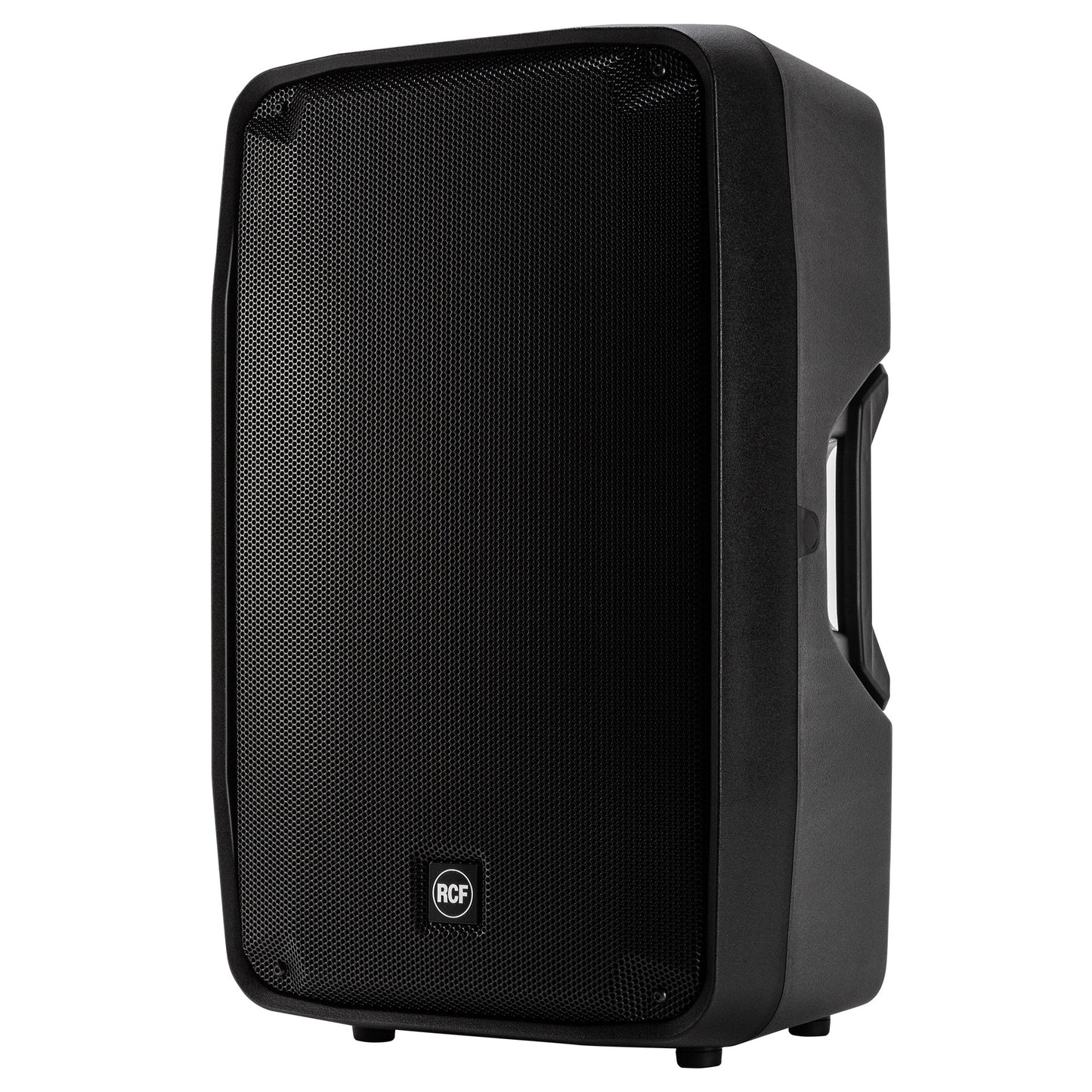

RCF HD15-A Active 1400W 2-way 15" Powered Speaker

SKU: HD15-A
$799.00 inc. VAT
-27% $1,099.00 $799.00 inc. VAT
HD 15-A
ACTIVE TWO-WAY SPEAKER
  • 130 DB MAX SPL
  • 1400 WATTS 2-WAY PEAK POWER
  • DSP PROCESSING WITH FIRPHASE
  • LIGHTWEIGHT COMPOSITE CABINET
  • 130 dB Max SPL
  • 1400 Watts 2-way peak power
  • DSP Processing with FiRPHASE
  • 1.0" Compression Driver, 1.75” v.c.
  • 15” Woofer, high power
  • Lightweight Composite Cabinet
  • 90°x60°, wide dispersion constant directivity horn
  • Silent Fanless Class-D Amplifier
The HD 15-A is a unique product in its category. The professional compression driver with custom designed dome and high-power voice coil offers exceptional vocal clarity and sound projection. The 15” high power woofer offers an extremely linear response and a precise, deep low-frequency control. The amplifier delivers 1400 watts and is controlled by a powerful DSP that takes care of crossover, equalization, FiRPHASE, soft limiting and speaker protection.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.0'', 1.75'' v.c

WOOFER:
15'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
1800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 top, 1 x M10 bottom, 2 x M10 side

HANDLES:
1 Top, 2 Side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
714 mm / 28.11 inches

WIDTH:
442 mm / 17.4 inches

DEPTH:
397 mm / 15.63 inches

WEIGHT:
22 kg / 48.5 lbs
Shipping informations
PACKAGE HEIGHT:
700 mm / 27.56 inches

PACKAGE WIDTH:
450 mm / 17.72 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
24.5 kg / 54.01 lbs
