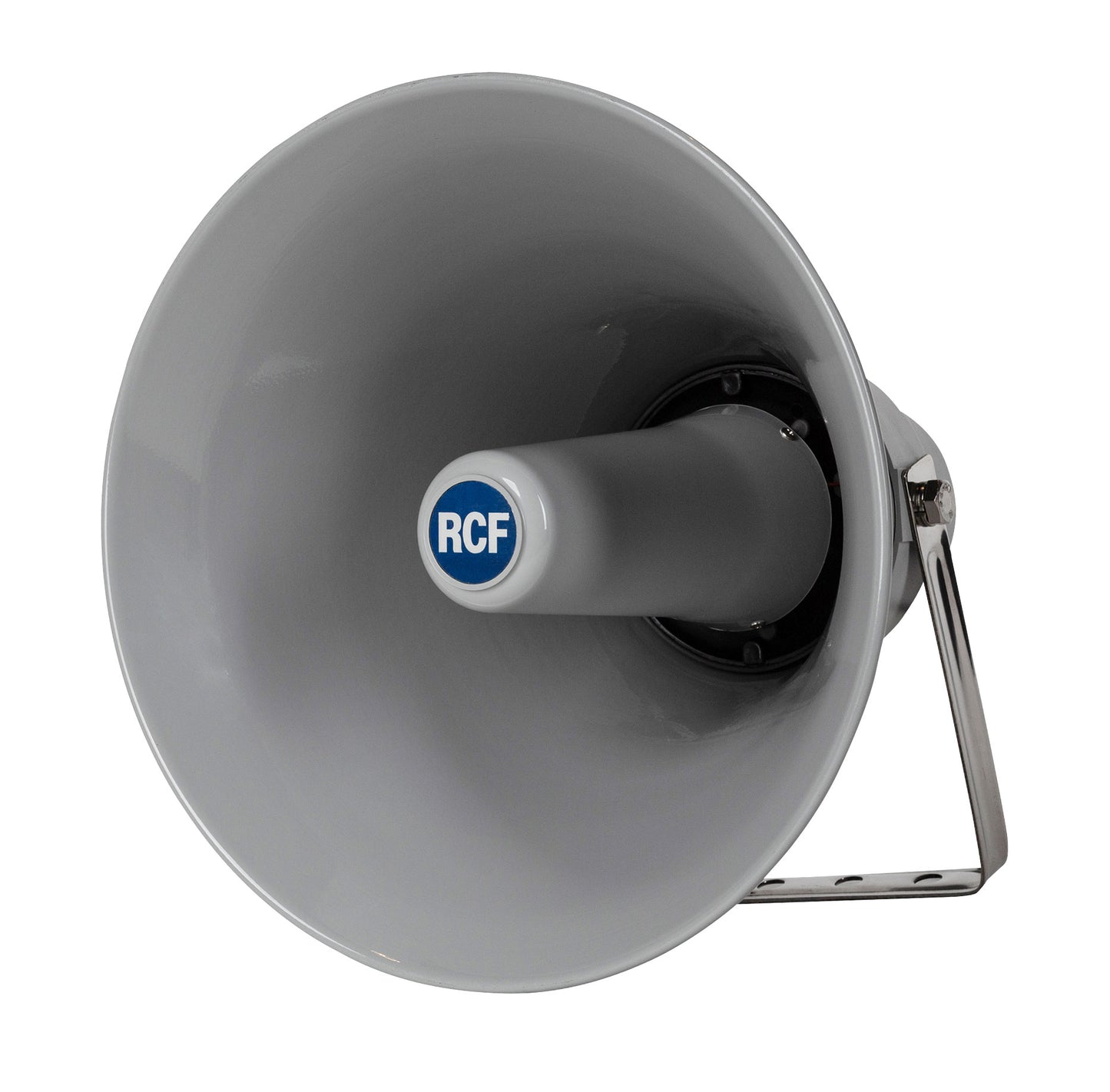

RCF HD310-T Passive Horn Speaker (8 ohm/IP66)

SKU: HD310-T
$169.00 inc. VAT
-15% $199.00 $169.00 inc. VAT
HD 310T
ALUMINIUM HORN SPEAKER WITH DRIVER AND TRANSFORMER
  • BUILT-IN LINE TRANSFORMER WITH MULTITAP POWER SELECTOR ON REAR COVER
  • HI-PASS FILTER FOR PROTECTING DRIVER AGAINST OUT-OF-RANGE LOW-FREQ
  • IP 66 CONSTRUCTION FOR INDOOR-OUTDOOR ENVIRONMENTAL TEMPERATURE BETWEEN -25°C TO +70°C
  • ALUMINIUM FLARE WITH UV-STABILIZED AUTOEXTINGUISHING UL-HB ABS REAR COVER
  • Built-in line transformer with multitap power selector on rear cover
  • Hi-pass filter for protecting driver against out-of-range low-freq
  • IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
  • Aluminium flare with UV-stabilized autoextinguishing UL-HB ABS rear cover
The HD 310/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the demnlievered power by means of a rotary dial on the rear cover
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
240 Hz ÷ 10000 Hz

MAX SPL @ 1M:
123 dB

COVERAGE ANGLE:
80°

SYSTEM SENSITIVITY:
108 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
30 W RMS

PEAK POWER HANDLING:
120 W PEAK

RECOMMENDED AMPLIFIER:
60 W
Transducers
COMPRESSION DRIVER:
1.5''
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
30 W - 333 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
15 W - 667 ohm

POWER SELECTION 4 (100 V):
10 W - 1000 ohm

POWER SELECTION 5 (100 V):
5 W - 2000 ohm

POWER SELECTION 6 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 66

CE MARKING:
Yes
Physical specifications
COLOR:
Grey - RAL 7035

HARDWARE:
Stainless steel U bracket

CABINET/CASE MATERIAL:
Aluminium
Size
DEPTH:
315 mm / 12.4 inches

DIAMETER:
310 mm / 12.2 inches

WEIGHT:
1.9 kg / 4.19 lbs
Shipping informations
PACKAGE WEIGHT:
3.53 kg / 7.78 lbs

PACKAGE DEPTH:
320 mm / 12.6 inches

PACKAGE WIDTH:
330 mm / 12.99 inches

PACKAGE HEIGHT:
360 mm / 14.17 inches
