Home » RCF HD3216 Passive Horn Speaker (8 ohm/IP66)
RCF

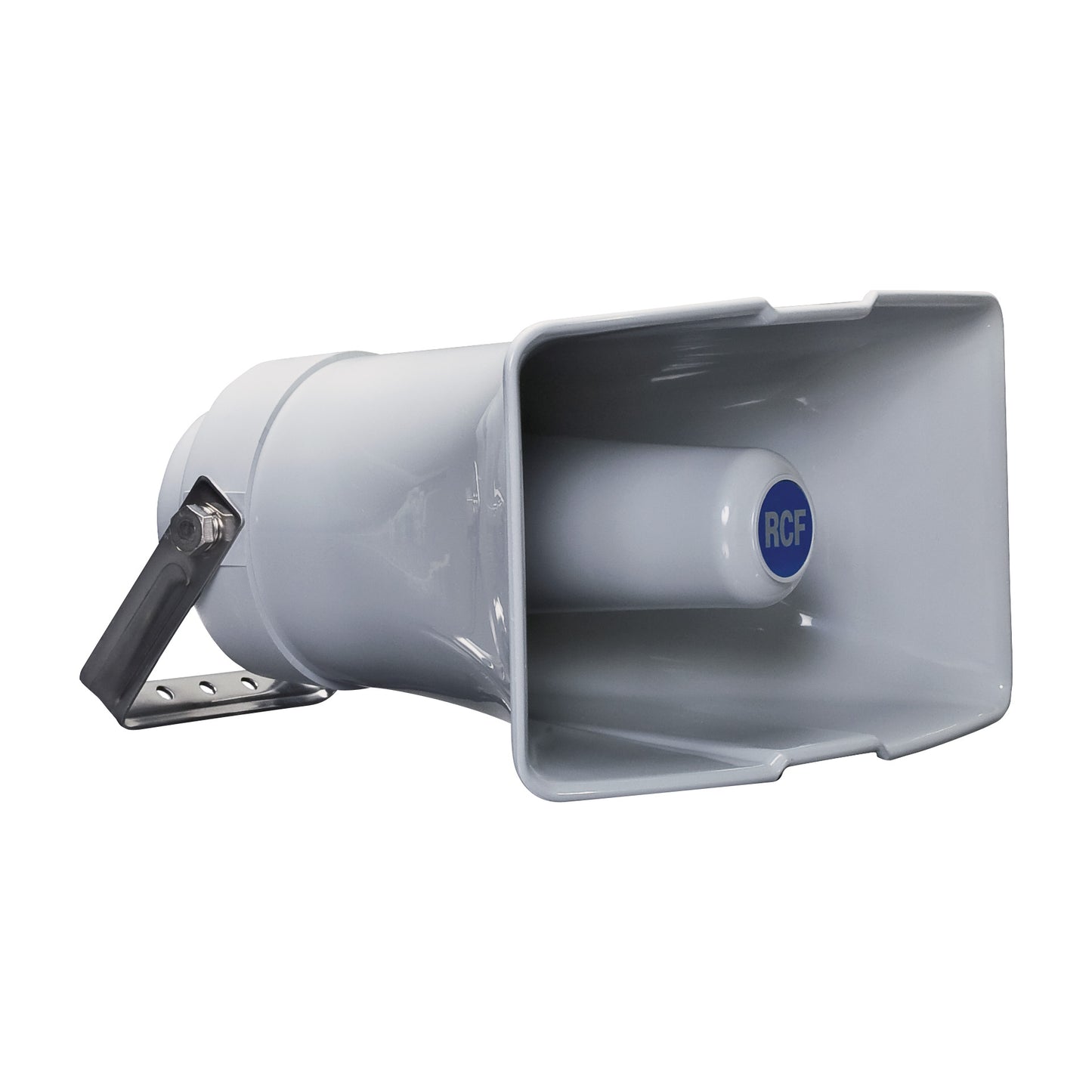

RCF HD3216 Passive Horn Speaker (8 ohm/IP66)

SKU: HD3216
$159.00 inc. VAT
-16% $189.00 $159.00 inc. VAT
HD 3216
PLASTIC HORN SPEAKER WITH DRIVER
  • HI-PASS FILTER FOR PROTECTING DRIVER AGAINST OUT-OF-RANGE LOW-FREQ
  • IP 66 CONSTRUCTION FOR INDOOR-OUTDOOR ENVIRONMENTAL TEMPERATURE BETWEEN -25°C TO +70°C
  • UV-STABILIZED AUTOEXTINGUISHING UL-HB ABS PLASTIC
  • COLOUR RAL 7035
  • Hi-pass filter for protecting driver against out-of-range low-freq
  • IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
  • UV-stabilized autoextinguishing UL-HB ABS plastic
  • Colour RAL 7035
  • Stainless-Steel mounting hardware
The HD 3216 are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
250 Hz ÷ 10000 Hz

MAX SPL @ 1M:
122 dB

HORIZONTAL COVERAGE ANGLE:
130°

VERTICAL COVERAGE ANGLE:
60°

SYSTEM SENSITIVITY:
108 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
25 W RMS

PEAK POWER HANDLING:
100 W PEAK

RECOMMENDED AMPLIFIER:
50 W
Transducers
COMPRESSION DRIVER:
1 x 1.5''
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable
Standard compliance
IP PROTECTION GRADE:
IP 66

CE MARKING:
Yes
Physical specifications
COLOR:
Grey - RAL 7035

HARDWARE:
Stainless steel U bracket

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
315 mm / 12.4 inches

DEPTH:
295 mm / 11.61 inches

HEIGHT:
170 mm / 6.69 inches

WEIGHT:
1.45 kg / 3.2 lbs
Shipping informations
PACKAGE WEIGHT:
2.61 kg / 5.75 lbs

PACKAGE DEPTH:
190 mm / 7.48 inches

PACKAGE WIDTH:
325 mm / 12.8 inches

PACKAGE HEIGHT:
305 mm / 12.01 inches
