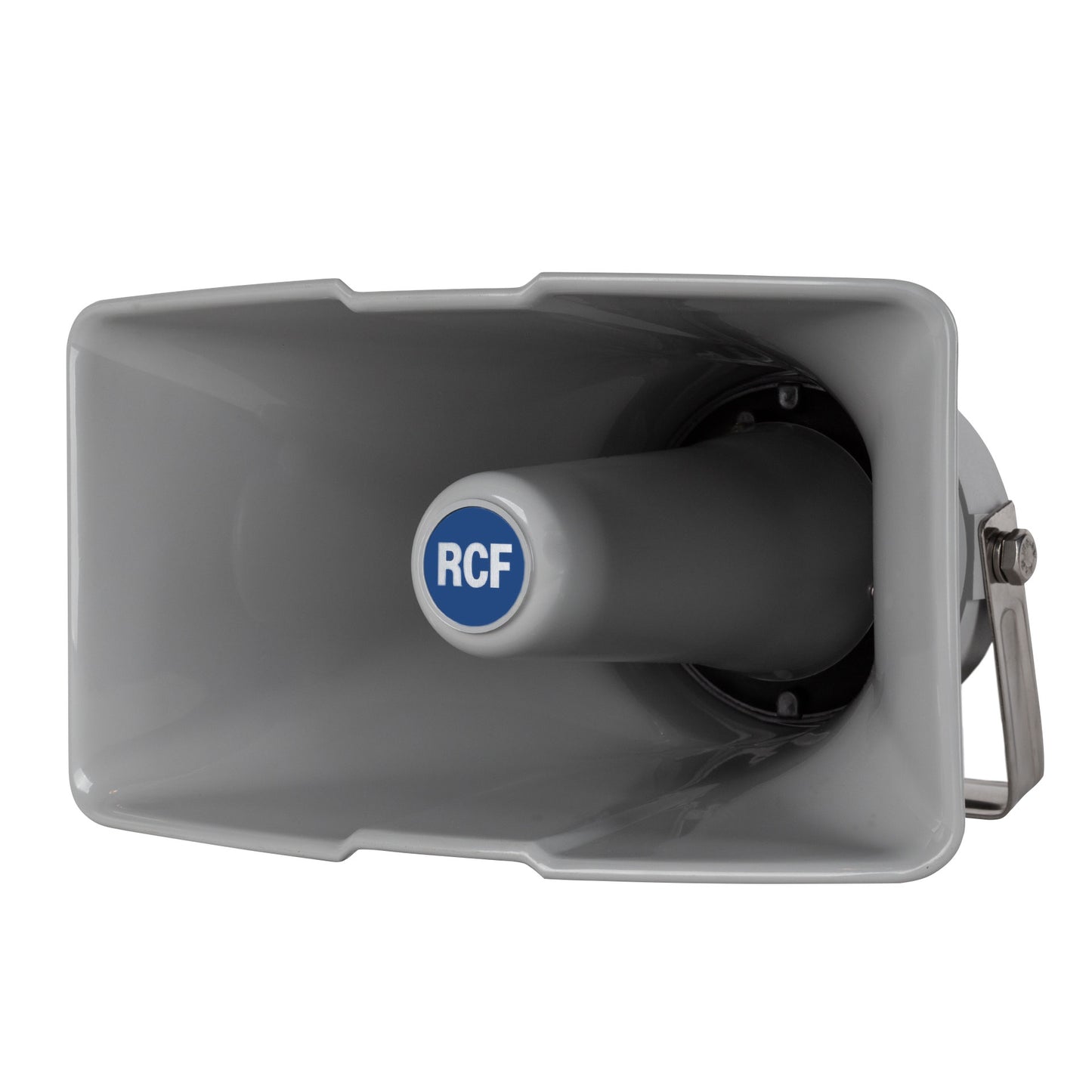

RCF HD3216-T Passive Horn Speaker (70V tappable/IP66)

SKU: HD3216-T
$159.00 inc. VAT
-16% $189.00 $159.00 inc. VAT
HD 3216T
PLASTIC HORN SPEAKER WITH DRIVER AND TRANSFORMER
  • BUILT-IN LINE TRANSFORMER WITH MULTITAP POWER SELECTOR ON REAR COVER
  • HI-PASS FILTER FOR PROTECTING DRIVER AGAINST OUT-OF-RANGE LOW-FREQ
  • IP 66 CONSTRUCTION FOR INDOOR-OUTDOOR ENVIRONMENTAL TEMPERATURE BETWEEN -25°C TO +70°C
  • UV-STABILIZED AUTOEXTINGUISHING UL-HB ABS PLASTIC
  • Built-in line transformer with multitap power selector on rear cover
  • Hi-pass filter for protecting driver against out-of-range low-freq
  • IP 66 construction for indoor-outdoor environmental temperature between -25°C to +70°C
  • UV-stabilized autoextinguishing UL-HB ABS plastic
  • Colour RAL 7035
  • Stainless-Steel mounting hardware
The HD 3216/T are compact, lightweight and watertight horn speakers. They are designed to provide high efficiency and characterized by the high intelligibility of the reproduced sound with low distortion. The built-in line transformer makes it possible to connect the horn loudspeaker to both 70 and 100 V constant voltage lines, and select the delievered power by means of a rotary dial on the rear cover
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
250 Hz ÷ 10000 Hz

MAX SPL @ 1M:
122 dB

HORIZONTAL COVERAGE ANGLE:
130°

VERTICAL COVERAGE ANGLE:
60°

SYSTEM SENSITIVITY:
108 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
25 W RMS

PEAK POWER HANDLING:
100 W PEAK

RECOMMENDED AMPLIFIER:
50 W
Transducers
COMPRESSION DRIVER:
1.5''
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
25 W - 400 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
15 W - 667 ohm

POWER SELECTION 4 (100 V):
10 W - 1000 ohm

POWER SELECTION 5 (100 V):
5 W - 2000 ohm

POWER SELECTION 6 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 66

CE MARKING:
Yes
Physical specifications
COLOR:
Grey - RAL 7035

HARDWARE:
Stainless steel U bracket

CABINET/CASE MATERIAL:
ABS
Size
WIDTH:
315 mm / 12.4 inches

DEPTH:
322 mm / 12.68 inches

HEIGHT:
170 mm / 6.69 inches

WEIGHT:
1.87 kg / 4.12 lbs
Shipping informations
PACKAGE WEIGHT:
3.1 kg / 6.83 lbs

PACKAGE DEPTH:
180 mm / 7.09 inches

PACKAGE WIDTH:
330 mm / 12.99 inches

PACKAGE HEIGHT:
390 mm / 15.35 inches
