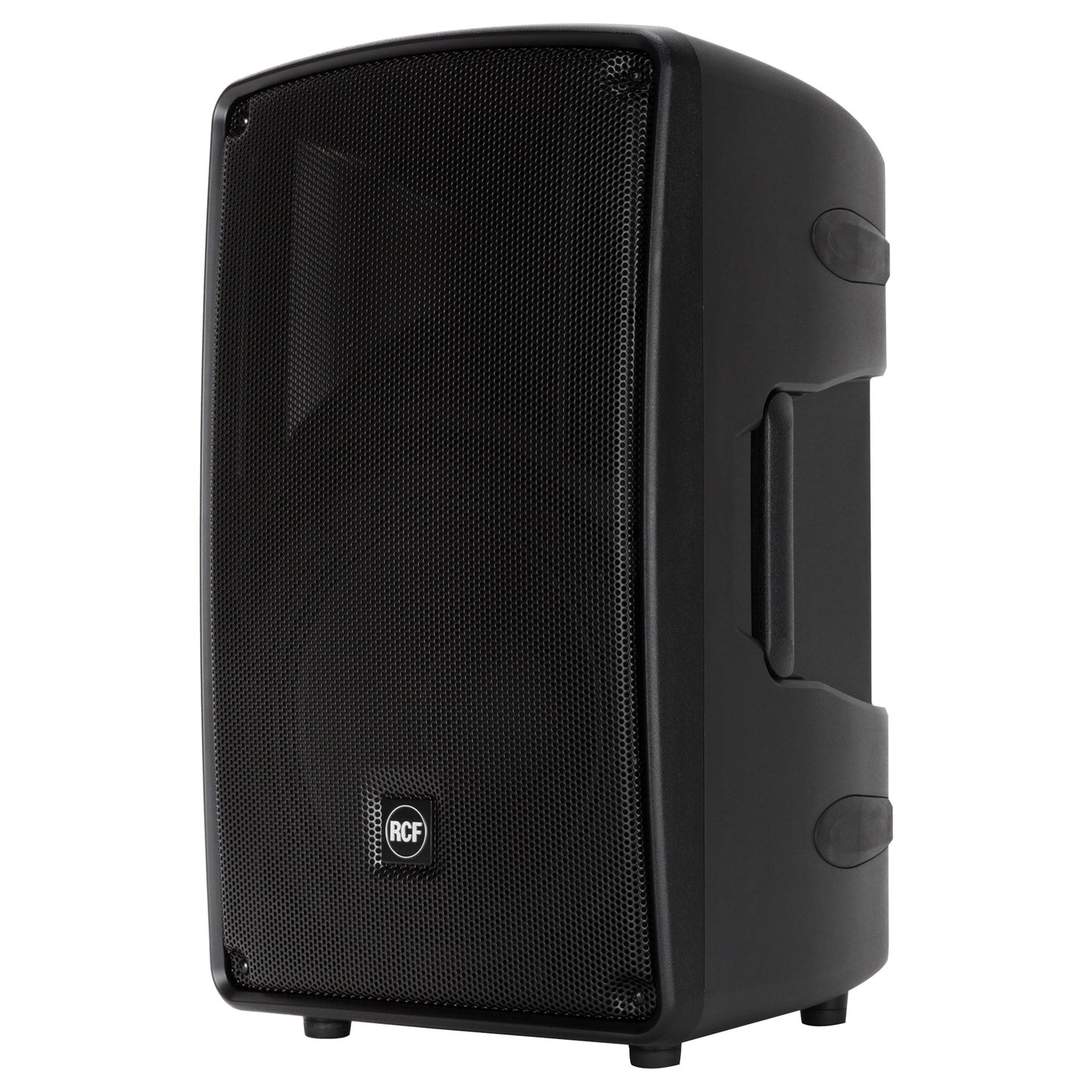

RCF HD32-A MK4 Active 1400W 2-way 12" Powered Speaker with 3" HF Driver

SKU: HD32-A MK4
$1,099.00 inc. VAT
-21% $1,399.00 $1,099.00 inc. VAT
HD 32-A MK4
ACTIVE TWO-WAY SPEAKER
  • 1400 WATT 2-WAY PEAK POWER
  • 131 DB MAX SPL
  • 12" WOOFER, HIGH POWER, 2.5" VOICE COIL
  • FIRPHASE PROCESSING
  • 1400 watt 2-way peak power
  •  131 dB max SPL
  •  Class-D Bi-amplification, SMPS
  •  DSP sound processing
  •  90° x 60°, wide dispersion constant directivity horn
  •  12" woofer, high power, 2.5" voice coil
  •  1.4" HF driver, titanium dome, neo 3.0" v.c.
  •  FiRPHASE processing
The RCF HD 32-A MK4 two way active speaker is capable of 131 dB max SPL with clear and definite sound. At the core of HD 32-A design is the new ND840 compression driver. The 3.0"; voice coil designs allow a crossover point as low as 700 Hz and therefore almost all of the vocal range can be produced by the driver. This allows even better coverage, dispersion control and superior efficiency.
The new D-Line MK4 speakers boosts the performance with a series of brand new transducers, improves the sound quality with the revolutionary FiRPHASE processing and renew the grille design to exalt the professional look. The concept of the HD-Line derives from the touring industry, bringing in a elegant and compact cabinet all the experience of RCF professional sound with the maximum reliability and strength for the intensive use on the road. Connect your microphone, your device or your mixer to the speaker and turn up the volume: real plug&play. Perfect as a main front of house in small PA systems, high powered floor monitoring and unobtrusive fixed installation.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.4'' neo, 3.0'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
700 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, Boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
1 x M10 top, 1 x M10 bottom, 3 x M6 bottom

HANDLES:
1 Top, 2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
647 mm / 25.47 inches

WIDTH:
380 mm / 14.96 inches

DEPTH:
380 mm / 14.96 inches

WEIGHT:
18 kg / 39.68 lbs
Shipping informations
PACKAGE HEIGHT:
760 mm / 29.92 inches

PACKAGE WIDTH:
500 mm / 19.69 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
22 kg / 48.5 lbs
