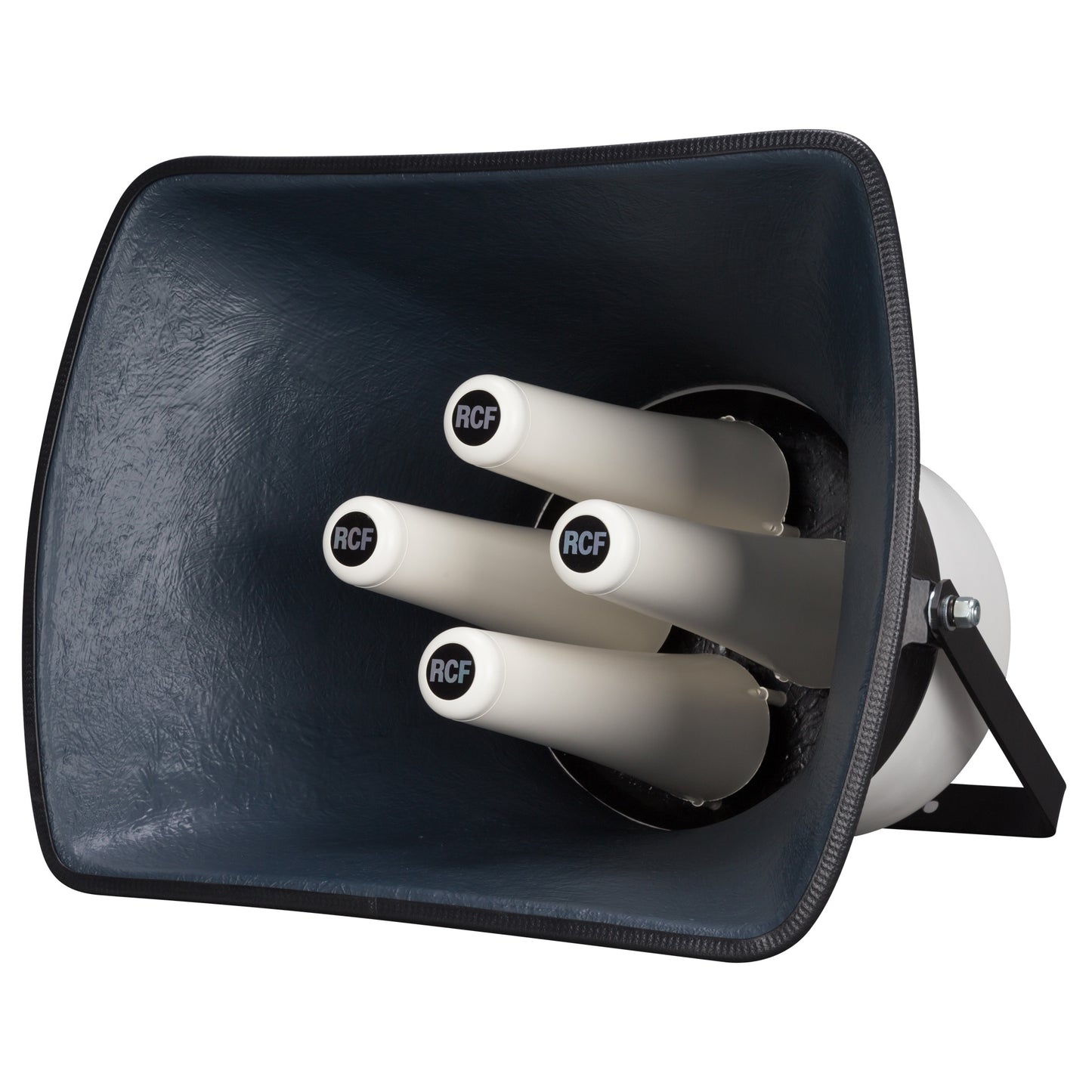

RCF HD6045-EN Passive Long Throw Horn Speaker (100V/IP65)

SKU: HD6045-EN
$2,499.00 inc. VAT
-21% $3,179.00 $2,499.00 inc. VAT
HD 6045EN
LONG-THROW FIBERGLASS HORN SPEAKER
  • 4 X 2" COMPRESSION DRIVERS.
  • RATED POWER (100 V): 200 W.
  • 110 DB SENSITIVITY.
  • COLOUR WHITE RAL 9003.
  • 4 x 2" compression drivers.
  • Rated power (100 V): 200 W.
  • 110 dB sensitivity.
  • Colour white RAL 9003.
  • Fiberglass body.
  • In/out ceramic terminal block.
  • Thermal fuse protection.
  • Protection grade IP65.
HD 6045EN is a fiberglass horn designed to withstand the most adverse weather conditions, offering high sound reproduction quality and sound pressure levels. A high level of efficiency and sound pressure can be obtained thanks to the use of 4 dynamic compression driver units. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
200 Hz ÷ 10000 Hz

MAX SPL @ 1M:
133 dB

MAX SPL @ 4M:
114 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
50°

SYSTEM SENSITIVITY:
110 dB

SYSTEM SENSITIVITY 1W @ 4M:
91 dB
Power section
POWER HANDLING:
200 W RMS

PEAK POWER HANDLING:
800 W PEAK

RECOMMENDED AMPLIFIER:
400 W

PROTECTIONS:
Thermal fuse
Transducers
COMPRESSION DRIVER:
4 x 2.0''
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals

OUTPUT CONNECTORS:
Ceramic screw terminals

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
200 W - 50 ohm
Standard compliance
CPR NUMBER:
0068-CPR-030/2015

IP PROTECTION GRADE:
IP 65

EN54-24 CERTIFIED:
Yes

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003

CABINET/CASE MATERIAL:
Fiberglass
Size
WIDTH:
620 mm / 24.41 inches

DEPTH:
564 mm / 22.2 inches

HEIGHT:
475 mm / 18.7 inches

WEIGHT:
21.4 kg / 47.18 lbs
Shipping informations
PACKAGE WEIGHT:
23.6 kg / 52.03 lbs

PACKAGE DEPTH:
495 mm / 19.49 inches

PACKAGE WIDTH:
645 mm / 25.39 inches

PACKAGE HEIGHT:
615 mm / 24.21 inches
