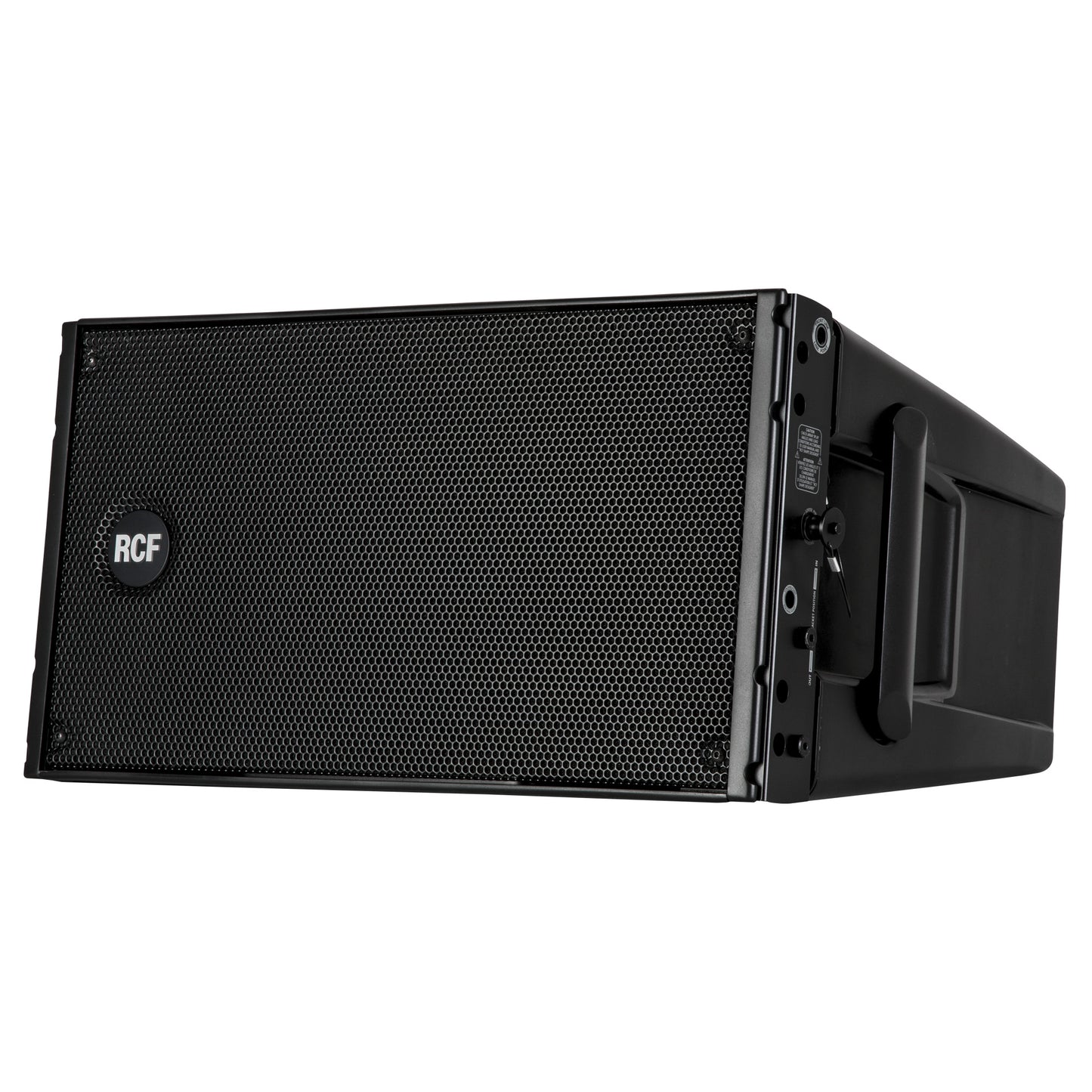

RCF HDL10-A Active 2-way Line Array (Blk)

SKU: HDL10-A
$1,999.00 inc. VAT
-20% $2,499.00 $1,999.00 inc. VAT
HDL 10-A
ACTIVE LINE ARRAY MODULE
  • 1400 WATT PEAK POWER - 700 WATT RMS
  • 2 X 8" WOOFERS
  • 133 DB MAX SPL
  • 65 HZ 20 KHZ FREQUENCY RESPONSE
  • 1400 Watt Peak power - 700 Watt RMS
  • 133 dB max SPL
  • 65 Hz 20 kHz frequency response
  • 2 x 8" Woofers
  • 1 x 2" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced
The very compact size, no compromise transducers and a unique composite cabinet design make the HDL 10-A the perfect tool in many situations. Ideal in live sound reinforcement and reliable installed situations. The HDL 10-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The HDL 15-AS is the ideal flyable bass complement for the HDL 10-A array system.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz

MAX SPL @ 1M:
133 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 2.0'', 2.5'' v.c

WOOFER:
2 x 8'', 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
Rigging flyware

HANDLES:
2 side

GRILLE:
Steel

COLOR:
Black, White
Size
HEIGHT:
294 mm / 11.57 inches

WIDTH:
569 mm / 22.4 inches

DEPTH:
434 mm / 17.09 inches

WEIGHT:
20.4 kg / 44.97 lbs
Shipping informations
PACKAGE HEIGHT:
375 mm / 14.76 inches

PACKAGE WIDTH:
650 mm / 25.59 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
23 kg / 50.71 lbs
