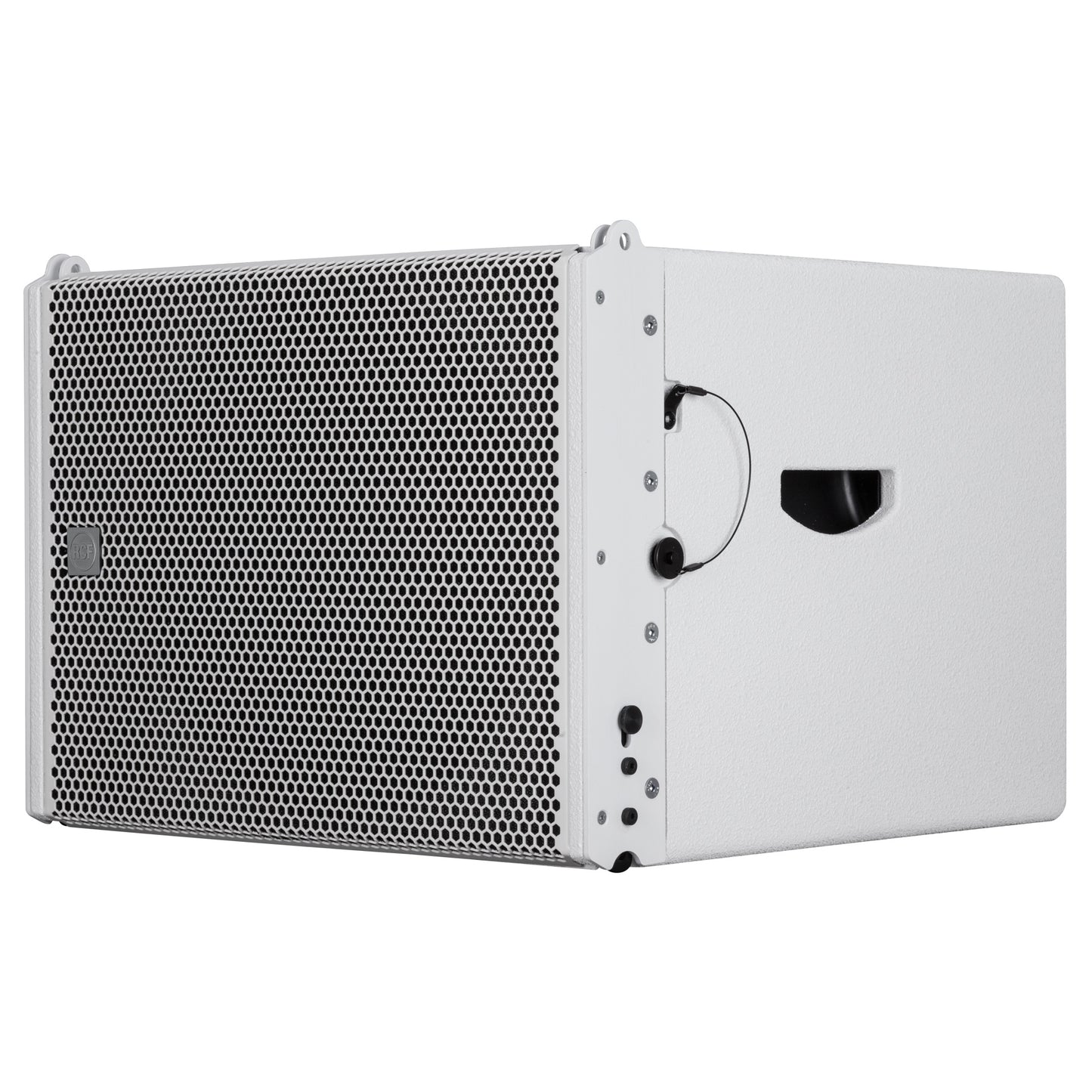

RCF HDL12-AS W Active Compact Flyable Subwoofer (White)

SKU: HDL12-AS W
$1,999.00 inc. VAT
-20% $2,499.00 $1,999.00 inc. VAT
HDL 12-AS
ACTIVE FLYABLE HIGH POWER SUBWOOFER
  • 1400 WATT PEAK POWER - 700 WATT RMS
  • 1 X 12" WOOFER
  • 40 HZ - 120 HZ FREQUENCY RESPONSE
  • 131 DB MAX SPL
  • 1400 Watt Peak power - 700 Watt RMS
  • 131 dB max SPL
  • 40 Hz - 120 Hz frequency response
  • 1 x 12" Woofer
  • Stereo crossover
  • Switchable crossover frequencies
  • Designed to compliment the HDL 6-A speaker system
  • Polarity reverse switch
The HDL 12-AS is the companion subwoofer for HDL 6-A. Housing a 12” woofer, the HDL 12-AS, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to create flown HDL 6-A clusters with outstanding performance. It features a built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the HDL 6-A line array module or a satellite. The integrated mechanics are both fast and reliable. The heavy-duty front grille is power coated. A special transparent-to-sound foam backing inside helps the further protection of the transducers from dust.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 120 Hz

MAX SPL @ 1M:
131 dB
Transducers
WOOFER:
12'', 3.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
40Hz

LOW-PASS FREQUENCIES:
80Hz, 110Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, EQ, Phase, Xover
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
Array fittings, pole

HANDLES:
2 side

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
379 mm / 14.92 inches

WIDTH:
470 mm / 18.5 inches

DEPTH:
508 mm / 20 inches

WEIGHT:
25 kg / 55.12 lbs
Shipping informations
PACKAGE HEIGHT:
435 mm / 17.13 inches

PACKAGE WIDTH:
560 mm / 22.05 inches

PACKAGE DEPTH:
520 mm / 20.47 inches

PACKAGE WEIGHT:
28 kg / 61.73 lbs
