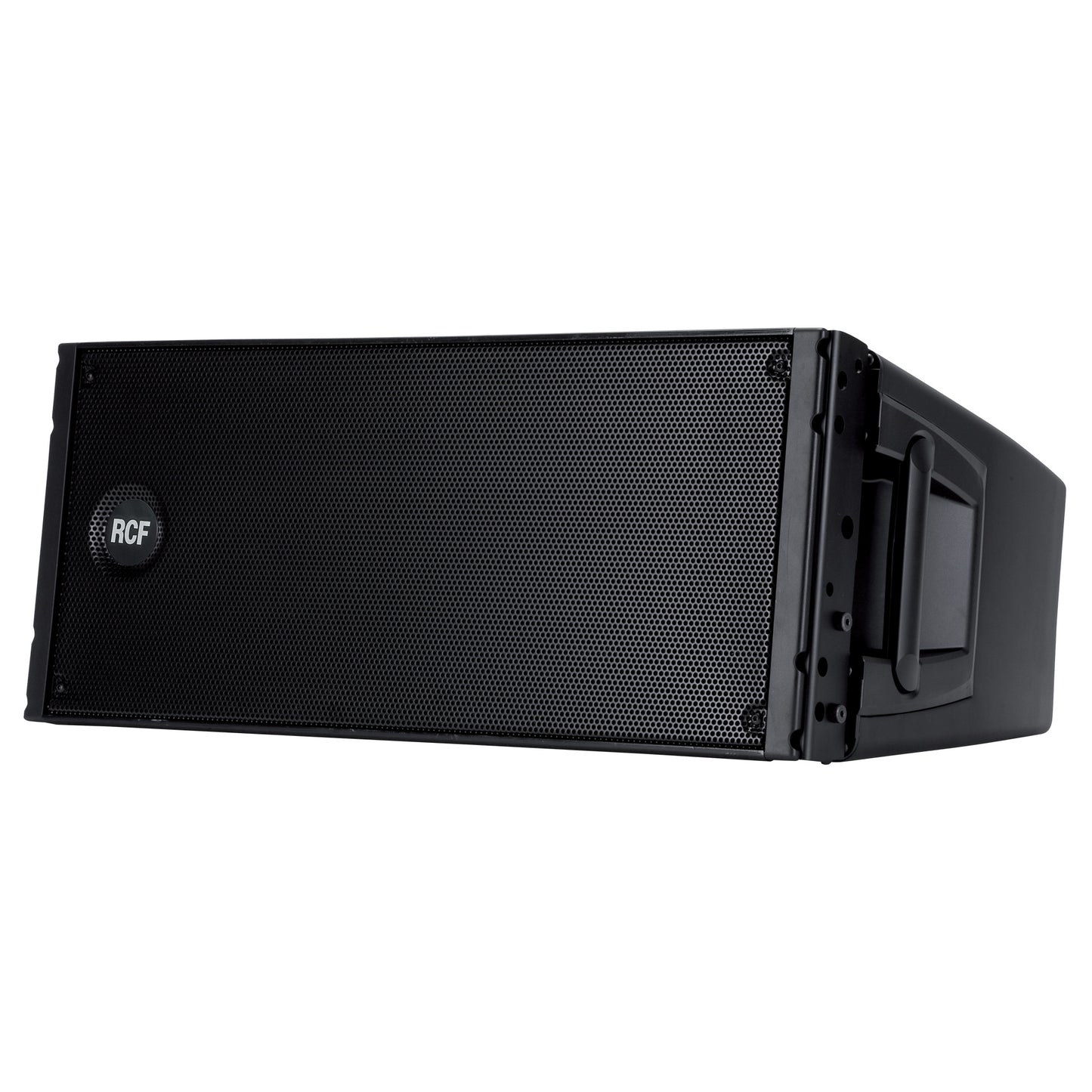

RCF HDL20-A Active 2-way Line Array (Blk)

SKU: HDL20-A
$3,199.00 inc. VAT
-29% $4,499.00 $3,199.00 inc. VAT
HDL 20-A
ACTIVE LINE ARRAY MODULE
  • 1400 WATT PEAK POWER - 700 WATT RMS
  • 2 X 10" WOOFERS
  • 55 HZ 20 KHZ FREQUENCY RESPONSE
  • DSP CONTROLLED INPUT SECTION WITH SELECTABLE PRESETS
  • 1400 Watt Peak power - 700 Watt RMS
  • 135 dB max SPL
  • 55 Hz 20 kHz frequency response
  • 2 x 10" Woofers
  • 1 x 3" Compression Driver
  • DSP controlled Input section with selectable presets
  • Tour grade safe and solid variable mechanics
  • Composite PP enclosure structurally wooden reinforced
The careful acoustic design, no compromise transducers and a unique, composite cabinet, design make the HDL 20-A the preferred tool of many professionals. Perfect in live sound reinforcement and reliable installed situations. The HDL 20-A is the ideal choice when line array performance is needed and a fast and easy set up is a must. The system is powered from a 1400 Watt Peak Power 2 way digital amplifier, sound is processed from a powerful DSP. The processing includes cluster and HF projection correction and special new presets for indoor and high curving situations. The system features state of the art RCF transducers, two powerful 10” for a solid bass reproduction and a large format 3” voice coil compression driver to deliver vocal clarity and high definition with an incredible dynamic. The HDL 18-AS is the ideal flyable bass complement for the HDL 20-A array system.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
55 Hz ÷ 20000 Hz

MAX SPL @ 1M:
135 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
15°
Transducers
COMPRESSION DRIVER:
1 x 2.0'', 3.0'' v.c

WOOFER:
2 x 10'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
800 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Cluster, HF, High curving, Indoor
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
Rigging flyware

HANDLES:
2 side, 2 back

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
294 mm / 11.57 inches

WIDTH:
705 mm / 27.76 inches

DEPTH:
445 mm / 17.52 inches

WEIGHT:
30.2 kg / 66.58 lbs
Shipping informations
PACKAGE HEIGHT:
375 mm / 14.76 inches

PACKAGE WIDTH:
800 mm / 31.5 inches

PACKAGE DEPTH:
500 mm / 19.69 inches

PACKAGE WEIGHT:
33.2 kg / 73.19 lbs
