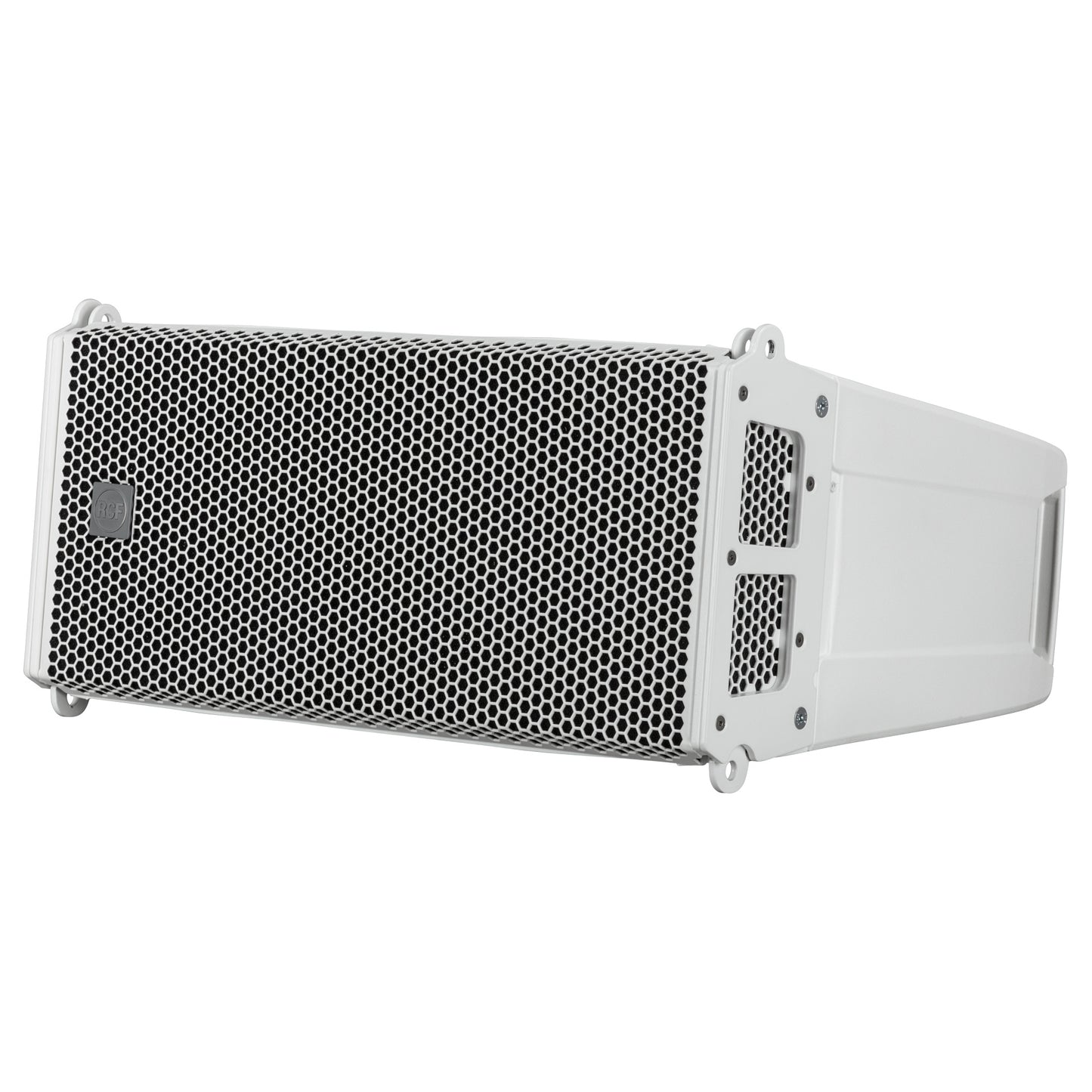

RCF HDL6-A W Active Compact 2-way Lina Array (White)

SKU: HDL6-A W
$1,699.00 inc. VAT
-23% $2,199.00 $1,699.00 inc. VAT

HDL 6-A
ACTIVE LINE ARRAY MODULE
  • 1400 W, TWO-WAY AMPLIFICATION
  • 1.7" VOICE COIL NEODYMIUM COMPRESSION DRIVER
  • 2 X HIGH POWER NEODYMIUM 6.0"WOOFERS
  • FIRPHASE PROCESSING
  • 1400 W, two-way amplification
  • 131 dB max SPL
  • 1.7" voice coil neodymium compression driver
  • 2 x high power neodymium 6.0"woofers
  • 48 kHz, 32 bit floating point DSP processing
  • Symmetrical design
  • Extremely low weight
  • FiRPHASE processing
The HDL6-A is the ideal choice when line array performance is needed and a fast and easy set-up a must. A 1400 W 2-channel class-D amplifier powers the system. A powerful DSP processes the sound including crossover, phase correction, limiting and protection. The system features state-of-the-art RCF transducers – two powerful 6.0” woofers for a solid bass reproduction plus a high powered 1.7” voice coil compression driver mounted on a precise 100° x 10° waveguide delivers vocal clarity with high definition and an incredible dynamic. The HDL 12-AS is the ideal flyable bass complement for the HDL 6-A array system.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
65 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
10°
Transducers
COMPRESSION DRIVER:
1 x 1.0'' neo, 1.75'' v.c

WOOFER:
2 x 6.0'' neo, 2.0'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
+4 dBu
Processor section
CROSSOVER FREQUENCIES:
900 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
HF correction
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
PP Composite

HARDWARE:
Array fittings

HANDLES:
2 Back

GRILLE:
Steel

COLOR:
Black, White
Size
HEIGHT:
237 mm / 9.33 inches

WIDTH:
470 mm / 18.5 inches

DEPTH:
377 mm / 14.84 inches

WEIGHT:
11.6 kg / 25.57 lbs
Shipping informations
PACKAGE HEIGHT:
260 mm / 10.24 inches

PACKAGE WIDTH:
550 mm / 21.65 inches

PACKAGE DEPTH:
425 mm / 16.73 inches

PACKAGE WEIGHT:
13 kg / 28.66 lbs
