Home » RCF IPS-1700 2 Channel AB-H Power Amplifier
RCF

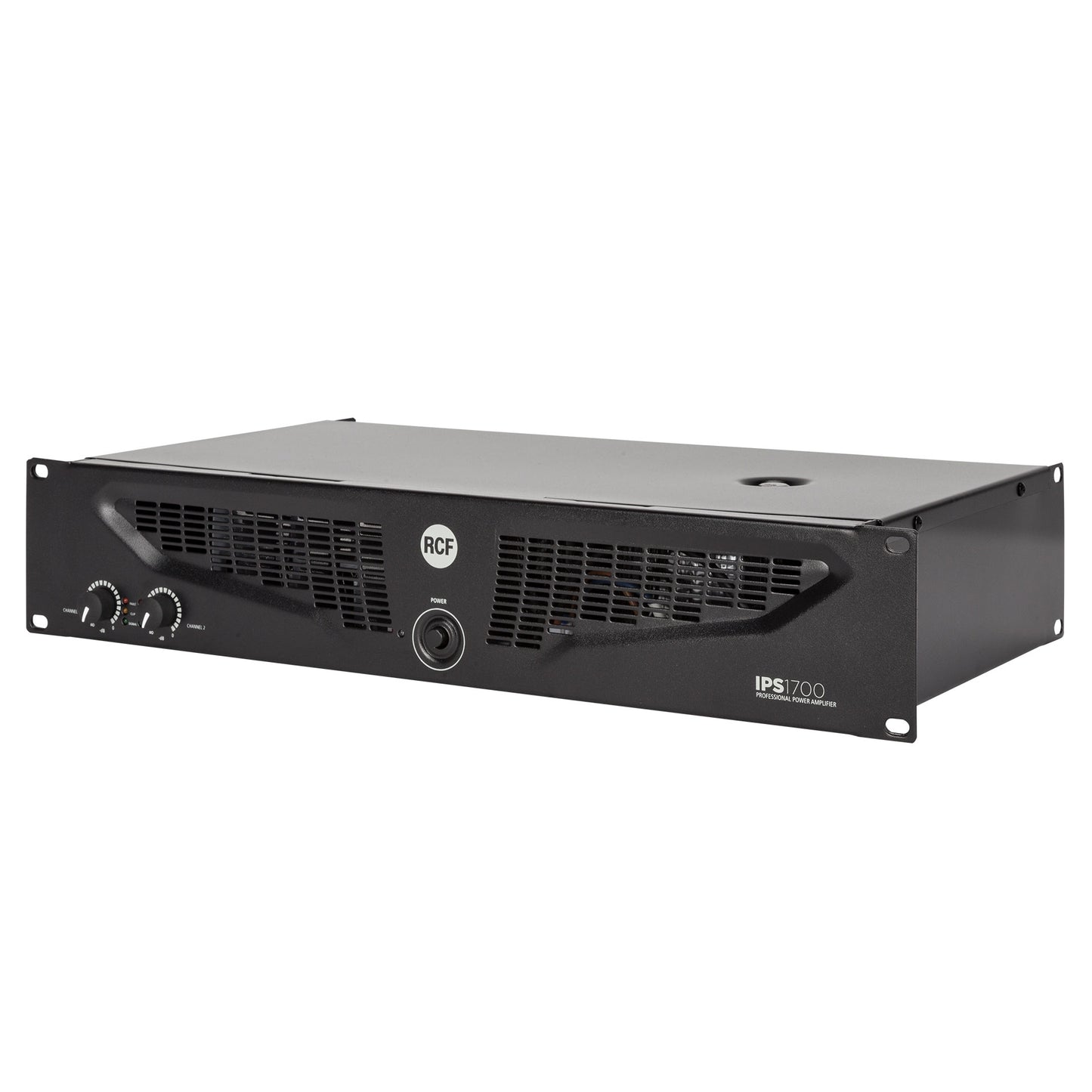

RCF IPS-1700 2 Channel AB-H Power Amplifier

SKU: IPS-1700
$599.00 inc. VAT
-14% $699.00 $599.00 inc. VAT
IPS 1700
2 X 450 W CLASS H PROFESSIONAL POWER AMPLIFIER
  • 2 UNIT 19" RACK, EASY TRANSPORTATION
  • FAST RESPONSE AND LOW DISTORTIONS
  • EASY TO CONFIGURE IN STEREO / MONO / BRIDGE MODES
  • EXTENSIVE PROTECTIVE CIRCUITS ENSURE HIGH RELIABILITY AND OPERATING SAFETY.
  • 2 unit 19" rack, easy transportation
  •  Fast response and low distortions
  •  Easy to configure in stereo / mono / bridge modes
  •  Extensive protective circuits ensure high reliability and operating safety.
  •  Front panel signal / clip / protect LED indicators
  •  XLR input connectors
  •  SPEAKON NL4 output connectors
IPS Series is a range of two-way professional amplifiers that combines high quality performance and reliability with the latest power amplifications technologies. This high value power-to-cost designs offer, in compact lightweight 2 rack unit space, the sound quality and the durability of traditional class AB and class H designs with the innovation of the latest power devices available. IPS 1700 is a 2 channel power amplifier that delivers up to 2 x 450 W RMS @ 4 O (900 W RMS bridged @ 8 O), weighing just 12,7 kg. It features independent gain dials, signal – clip and fault LEDs, stereo XLR input and Output link, 1.4 V to 0.775 V input sensitivity switch, mono – stereo – bridge switch, powercon outputs. Moreover, it is protected against shorts and open circuits. Thanks to its high efficiency heat sinks and high speed DC fans, the IPS 1700 can withstand the hardest heat conditions ensuring great reliability.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
2

POWER OUTPUT PER CHANNEL (@ 4 OHM):
450 W RMS

POWER OUTPUT PER CHANNEL (@ 8 OHM):
330 W RMS

POWER OUTPUT (BRIDGED @ 8 OHM):
900 W RMS

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 20 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>100 dB

CROSSTALK (@ 1 KHZ):
<75 dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.5 %
Input section
BALANCED:
2

LINE CONNECTORS:
XLR

LINE INPUTS:
2

MONO:
2

TOTAL NUMBER OF INPUTS:
2
Output section
SIGNAL OUTPUT NUMBER:
2

SIGNAL OUTPUT CONNECTORS:
XLR

POWER OUTPUT CONNECTORS:
Speakon
Controls
CONFIGURATION:
DIP switch, Front panel
Protections
COOLING:
Forced

SHORT CIRCUIT:
Yes

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60Hz

POWER CONSUMPTION:
350 W
Standard compliance
CE MARKING:
Yes

EN54-16 CERTIFIED:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 2U
Size
DEPTH:
255 mm / 10.04 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
11.1 kg / 24.47 lbs

WIDTH:
482 mm / 18.98 inches
Shipping informations
PACKAGE DEPTH:
570 mm / 22.44 inches

PACKAGE HEIGHT:
150 mm / 5.91 inches

PACKAGE WEIGHT:
13.8 kg / 30.42 lbs

PACKAGE WIDTH:
580 mm / 22.83 inches
