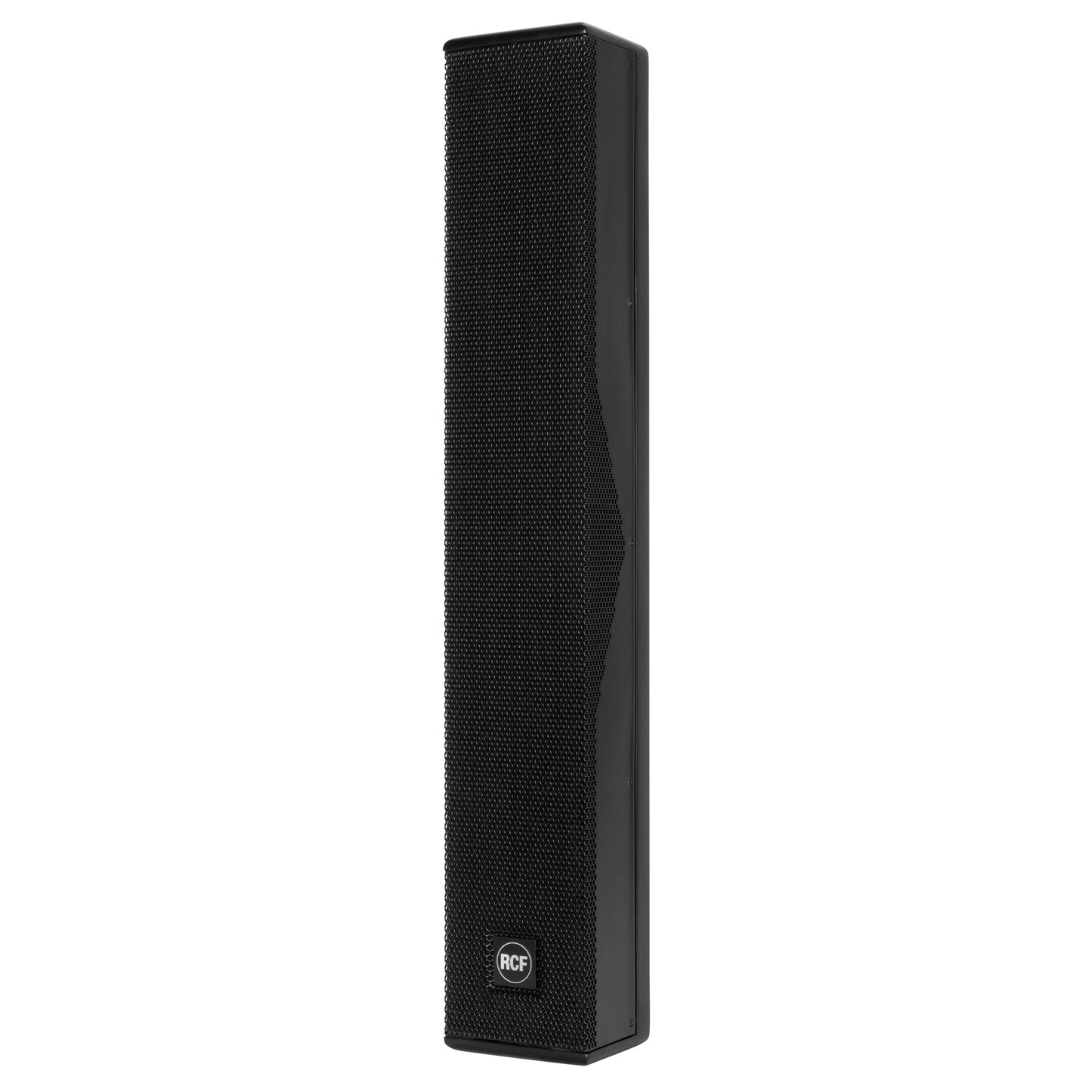

RCF L2406-T Passive 5" Column (70v/8ohm)

SKU: L2406-T
$1,199.00 inc. VAT
-20% $1,499.00 $1,199.00 inc. VAT
L 2406T
THREE WAY SPEAKER COLUMN ARRAY
  • 126 DB MAX SPL
  • 6 X 5" WOOFERS
  • SPEECH ENHANCER FILTER
  • 100 ÷ 20000 HZ FREQUENCY RANGE
  • 200 W RMS power handling
  • 126 dB max SPL
  • 100 ÷ 20000 Hz frequency range
  • 150° x 30° constant directivity coverage angle
  • 6 x 5" woofers
  • 4 x 1" dome tweeters
  • Baltic birch plywood cabinet
  • Speech enhancer filter
  • Built-in wall mounting accessories
The L2406-T is a full range high intelligibility compact 3 way column speaker array with vertical controlled directivity for medium to large size installations. It is equipped with six 5" woofers and four 1" dome tweeters mounted in front of the two central woofers. This particular design permits coherent sound dispersion minimizing lobing in a very compact enclosure. The two central woofers are controlled differently from the other four because of the tweeters in front of them, in order to improve the directivity providing a true cardioid column operation.The wide coverage horizontal angle and the controlled vertical dispersion allow correct sound reproduction serving a wide area and assistance in limiting feedback and reverberated sound. A speech filter can be activated for enhancing the voice frequencies and improving speech intelligibility. The crossover is designed to avoid secondary lobing creation. Mounting accessories are provided and are designed to keep the column as close as possible to the wall and simplify the installation allowing suitable tilting. The L2406-T can be used connected to a low impedance amplifier to handle 200 W RMS power. It also includes a 60 W line transformer for 100 V systems. The crossover is equipped with a circuit to protect the four 1" dome tweeters.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
100 Hz ÷ 20000 Hz

MAX SPL @ 1M:
126 dB

HORIZONTAL COVERAGE ANGLE:
150°

VERTICAL COVERAGE ANGLE:
30°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
97 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
200 W RMS

PEAK POWER HANDLING:
800 W PEAK

RECOMMENDED AMPLIFIER:
400 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
2000 Hz
Transducers
DOME TWEETER:
4 x 1.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m

WOOFER:
6 x 5.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
30 W AES, 60 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
90 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
60 W - 167 ohm

POWER SELECTION 2 (100 V):
30 W - 333 ohm

POWER SELECTION 3 (100 V):
15 W - 667 ohm

POWER SELECTION 4 (100 V):
10 W - 1000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black, White

HARDWARE:
4 x M5 inserts

GRILLE:
Steel

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
135 mm / 5.31 inches

DEPTH:
140 mm / 5.51 inches

HEIGHT:
826 mm / 32.52 inches

WEIGHT:
12.8 kg / 28.22 lbs
Shipping informations
PACKAGE WEIGHT:
14.4 kg / 31.75 lbs

PACKAGE DEPTH:
219 mm / 8.62 inches

PACKAGE WIDTH:
219 mm / 8.62 inches

PACKAGE HEIGHT:
994 mm / 39.13 inches
