Home » RCF M18 18 Channel Digital Mixer (IOS/Android)
RCF

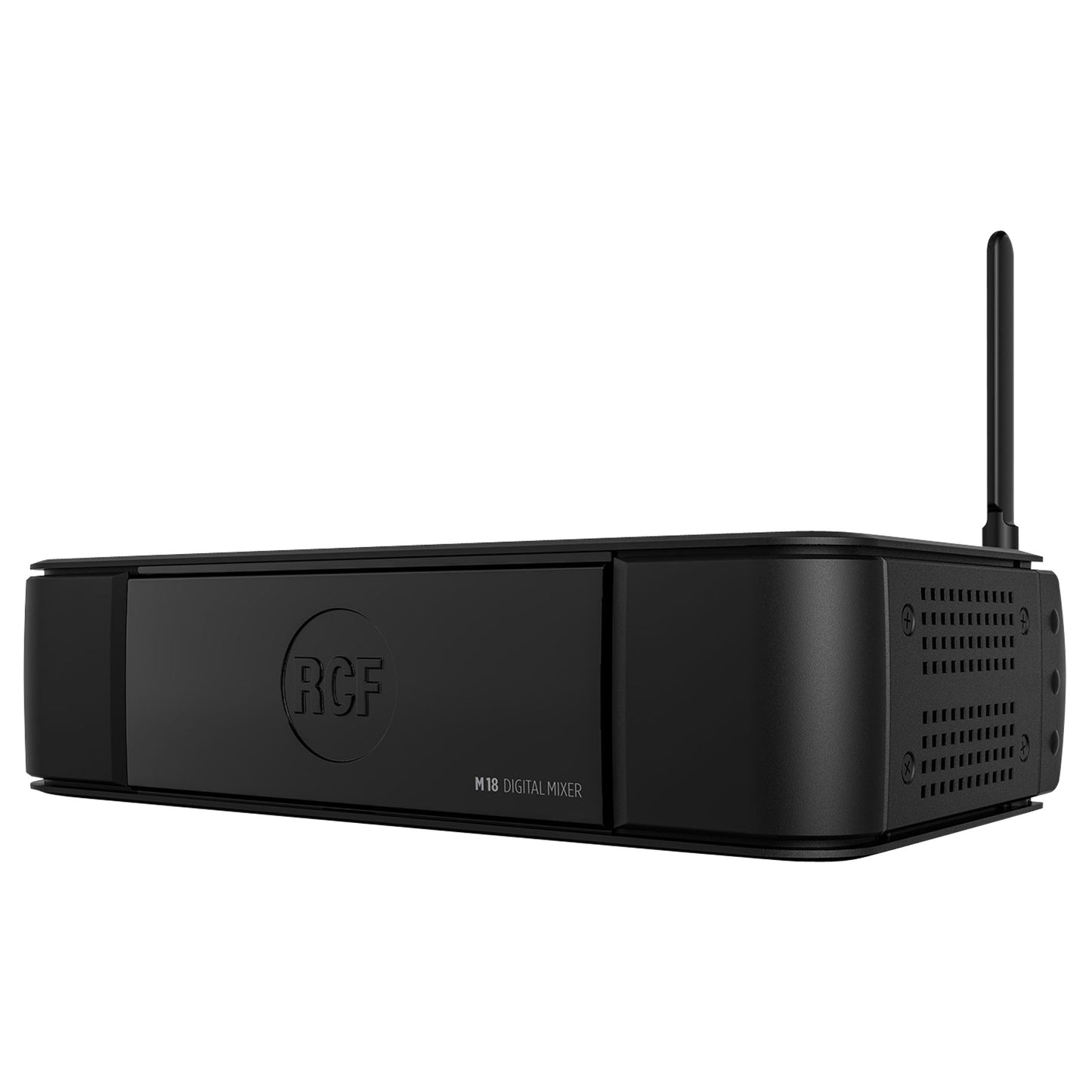

RCF M18 18 Channel Digital Mixer (IOS/Android)

SKU: M18
$749.00 inc. VAT
-17% $899.00 $749.00 inc. VAT
M 18
SMALL-FORMAT WIFI-CONTROLLED DIGITAL MIXER
  • 18 ANALOG INPUT CHANNELS, 8 MIC PREAMPS AND 10 LINE INPUTS INCLUDING 2 HIZ SWITCHABLE INPUTS
  • 19 SIMULTANEOUS STUDIO-GRADE EFFECTS, INCLUDING GUITAR & BASS EMULATIONS DEVELOPED BY OVERLOUD
  • MIDI IN AND OUT PORTS
  • VALVE WARMER, XCITER, MAXIMIZER AND STEREO GRAPHIC EQ ON MAIN MIX
  • 18 analog input channels, 8 mic preamps and 10 Line inputs including 2 HiZ switchable inputs
  • Three internal FX: Reverb, Delay, Modulation
  • 19 simultaneous studio-grade effects, including Guitar & Bass emulations developed by Overloud
  • MixRemote app ensuring a comprehensive control
  • Valve warmer, Xciter, Maximizer and Stereo Graphic EQ on Main Mix
  • 1 stereo main out and 6 aux outputs
  • USB port for the internal four-track player and two-track recorder
  • MIDI IN and OUT ports
  • 1 dual footswitch connector
  • Internal power supply
Fader-free, all-in-one M 18 has an on-board WiFi access point with both external and internal antennas, enabling full wireless control from up to 5 tablets. It features a total of 18 analog inputs, 8 mic preamps, up to 19 simultaneous studio-grade effects and a full suite of plug-in algorithms and professional internal effects, including a high-quality stereo reverb and classic emulations of guitar and bass amplifiers.
The input EQs (Standard, Vintage and Smooth) enable a wide range of sounds and a flexible sound-sculpting environment. A Mastering processor on the main outputs allows a final fine-tuning of the overall sound. A USB port for the internal two-track player and recorder, MIDI ports and footswitch input provide maximum flexibility.
SPECIFICATIONS
Electrical specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20000 kHz

POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS:
90 V - 240 V

POWER CONSUMPTION (W):
40 W
Processing
PROCESSING CHANNELS:
20

SIGNAL PROCESSING:
32 Bit Floating Point

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

DYNAMIC RANGE:
114
Wireless specifications
DUAL BAND:
Yes

EXTERNAL ANTENNAS:
1

IEEE802.11 B/G STANDARD (GHZ):
2.4 / 5.0 - US version: 2.4 GHz only

INTERNAL ANTENNAS:
2

INTERNAL ACCESS POINT:
Yes
Inputs
A/D DYNAMIC RANGE (DB):
114 dB

GAIN RANGE:
0 dB ÷ 60 dB

GAIN SELECTION:
-10 dB ÷ 4 dB

HI-Z LINE INPUTS IMPEDANCE (MOHM):
1 Mohm

HI-Z LINE INPUTS:
2

MIC INPUTS IMPEDANCE (KOHM):
1 kohm

LINE:
10

LINE INPUT IMPEDANCE (KOHM):
10 kohm

LOW CUT:
10 Hz ÷ 500 dB

MIC:
8

PHANTOM POWER +48V:
Yes
Outputs
MAIN MIX:
2

FX SEND:
3

AUX SEND:
6

AUX OUTPUT:
6

PHONES:
1
Outputs specifications
MAIN OUT IMPEDANCE (OHM):
50 ohm

MAIN OUT LEVEL (DBU):
21 dBu

AUX OUT IMPEDANCE (OHM):
50 ohm

AUX OUT LEVEL (DBU):
21 dBu

PHONES OUT IMPEDANCE (OHM):
40 ohm

PHONES OUT LEVEL (DBM):
35 dBm

D/A DYNAMIC RANGE (DB):
114 dB
Gates
RCF GATES:
"Gates present on all input channel"
Compressors
RCF COMPRESSORS:
Compressor on each input channel
EQ
INPUT CHANNELS EQ:
2 Full Parametric / 2 Semi Parametric / 2 Shelving / 4 Generic

AUX OUTPUT EQ:
2 Full Parametric / 2 Shelving
Auxiliary sends
AUX:
4 PRE / 2 PRE/POST

FX POST:
3
Internal Effects
SEND EFFECTS:
3

MULTIFX INSERT EFFECTS:
16
Mastering processors
MAIN OUT PROCESSORS:
4.00

MAIN OUT TYPE:
"Valve Warmer, Xciter, Maximizer, 31 band Graphic EQ present on MAIN MIX"
USB audio
TYPE:
A

PLAY TRK:
2

REC TRK:
2

SUPPORTED SAMPLE RATE (KHZ):
48.0

SUPPORTED PLAY FORMATS:
MP3, WAV, AIFF

COMPRESSED FILE FORMAT PLAY (UP TO) (KBPS):
320 Kbps

SUPPORTED REC FORMAT:
WAV
Other features
FOOTSWITCH:
Yes

MIDI IN:
Yes

MIDI OUT:
Yes

LAN PORT:
Yes
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
ABS

COLOR:
Black

RACK MOUNTING:
2U , Optional rack mounting accessory required
Size
DEPTH:
180 mm / 7.09 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
2.5 kg / 5.51 lbs

WIDTH:
340 mm / 13.39 inches
Shipping informations
PACKAGE DEPTH:
132 mm / 5.2 inches

PACKAGE HEIGHT:
378 mm / 14.88 inches

PACKAGE WEIGHT:
3.4 kg / 7.5 lbs

PACKAGE WIDTH:
253 mm / 9.96 inches
