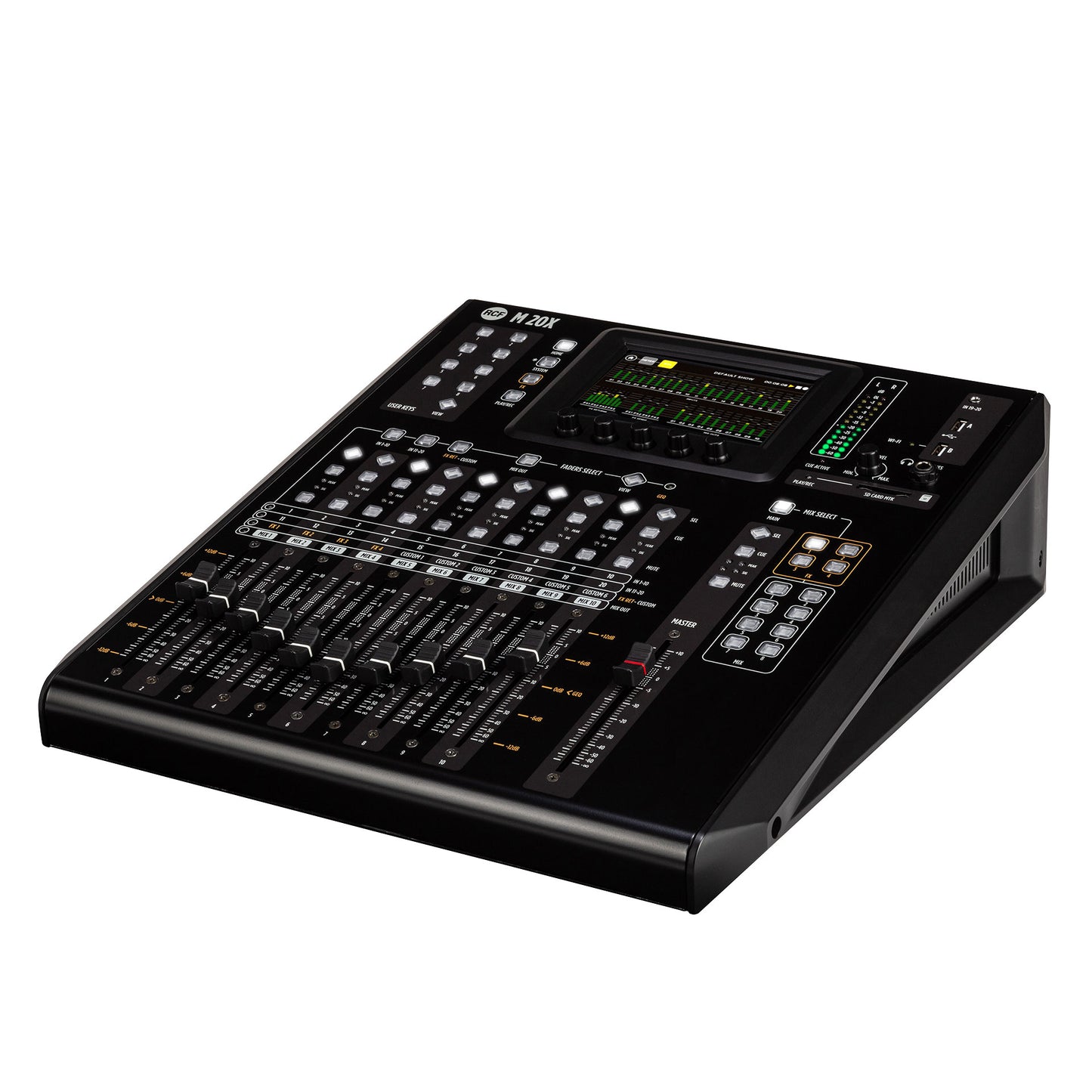

RCF M20X 20 Channel Desktop Digital Mixer

SKU: M20X
Regular price $1,799.00 inc. VAT
Regular price -28% $2,499.00 Sale price $1,799.00 inc. VAT
M 20X
DESKTOP DIGITAL MIXER
  • 20 ANALOG INPUTS, 16 MIC PREAMPS AND 4 LINE INPUTS
  • 12 BALANCED OUTPUTS + PHONES
  • 20-TRACKS SD CARD PLAY/REC
  • 24 X 24 CH USB AUDIO INTERFACE (24-BIT/48 KHZ)
  • 20 analog inputs, 16 mic preamps and 4 line inputs
  • 12 balanced outputs + phones
  • 20-tracks sd card play/rec
  • 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
  • 11 motorized Faders
  • Smooth User Interface with 5” Touchscreen
  • AES Digital Output
  • LAN / WiFi Remote Control
M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.
SPECIFICATIONS
Electronic specifications
FREQUENCY RESPONSE:
20 Hz ÷ 20 kHz

THD+N, 0DB GAIN, 0DBU OUT:
< 0.02% A-Weighted

DYNAMC RANGE, ANALOG TO ANALOG:
109 dB A-Weighted

RESIDUAL NOISE LEVEL, MAIN OUT, MUTED:
-85 dBu A-Weighted
Inputs
MIC (BALANCED XLR):8

REMOTE CONTROLLED STORABLE GAIN:Yes

GAIN RANGE:0 dB ÷ 60 dB

MIC INPUT IMPEDANCE:3.3 kohm

MAXIMUM INPUT LEVEL:18 dBu

PHANTOM POWER +48V:Yes

MIC/LINE (XLR/TRS COMBO):8

REMOTE CONTROLLED STORABLE GAIN:Yes

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

GAIN RANGE:0 dB ÷ 60 dB

MIC INPUTS IMPEDANCE (XLR):
3.3 kohm

LINE INPUTS IMPEDANCE (TRS):12.8 kohm

MAXIMUM INPUT LEVEL (XLR):18 dBu

MAXIMUM INPUT LEVEL (TRS):29 dBu

PHANTOM POWER +48V:Yes

BALANCED LINE (1/4 TRS):2

GAIN RANGE:0 dB ÷ dB

LINE INPUTS IMPEDANCE (TRS):18 kohm

MAXIMUM INPUT LEVEL (TRS):18 dBu

STEREO LINE (3,5MM JACK):1

GAIN RANGE:0 dB ÷ dB

LINE INPUTS IMPEDANCE (TRS):15 kohm

MAXIMUM INPUT LEVEL (TRS):18 dBu
Outputs
MAIN OUT (BALANCED XLR):2

OUTPUT IMPEDANCE:50 ohm

MAXIMUM OUTPUT LEVEL:24 dBu

MIX OUT (BALANCED XLR):8

MIX OUT (1/4 TRS):2

OUTPUT IMPEDANCE:150 ohm

MAXIMUM OUTPUT LEVEL:24 dBu

PHONES (6,8MM JACK STEREO LINE):1

OUTPUT IMPEDANCE:50 ohm

MAXIMUM OUTPUT LEVEL:18 dBu

AES3 (XLR):1
Processing
SIGNAL PROCESSING:32 Bit Floating Point

HEADROOM:20 dB

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz

BUSS:16
Input processing
SOURCE SELECTOR:Yes

POLARITY:Yes

HIGH PASS FILTER:Yes

DELAY:100 ms

GATE:with Gain Reduction meter

PEQ:4 Band

COMPRESSOR / DE-ESSER ON INPUTS:
1 ÷ 16 (with Gain Reduction meter)
Output processing
DELAY:250 ms

GEQ:30 Band

PEQ:8 Band

COMPRESSOR / LIMITER:
with Gain Reduction meter

MIX OUT:[1 ÷ 8]

DELAY:250 ms

PEQ:8 Band

COMPRESSOR / LIMITER:with Gain Reduction meter

REAL TIME ANALYZER:Yes

DELAY:250 ms
Effects
INTERNAL FX:4

FX1:Reverb (Hall, Room, Plate, Ambience)

FX2:Reverb (Hall, Room, Plate, Ambience)

FX3:Delay (Stereo, Modern, Vintage, Dual, ER)

FX4:
Modulation (Chorus, Flanger, Tremolo)
Multitrack
SD MULTITRACK FORMAT: WAV, 24Bit, 48.0kHz

NUMBER OF TRACKS:20
A/D-D/A CONVERSION:24 Bit @ 48.0 kHz
RECORDING: 20 Channels
PLAYBACK: 20 Channels
USB AUDIO INTERFACE FORMAT: WAV, 24Bit, 48.0kHz

A/D-D/A CONVERSION:
24 Bit @ 48.0 kHz
UPSTREAM:24 Channels

DOWNSTREAM:24 Channels
USB drive play/rec
USB DRIVE RECORDING:2 Channels @ WAV, 24Bit, 48.0kHz
A/D-D/A CONVERSION:24 Bit @ 48.0 kHz

A/D-D/A CONVERSION:16 Bit @ 44.1, 48.0, 88.2, 96.0 kHz
USB DRIVE PLAYBACK:
2 Channels @ WAV/MP3/AIFF, 16Bit, 44.1, 48.0, 88.2, 96.0kHz
Control interfaces
LAN PORT:
1000-BaseTX for remote control

DESCRIPTION:
MIDI interface, WiFi dongle (must be en
USB PORTS:
2 Type A
Electrical specifications
POWER SUPPLY:
Internal

VOLTAGE REQUIREMENTS: 100 V - 240 V
POWER CONSUMPTION (MAX) (W): 70 W
Standard compliance
CE MARKING: Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal
Size
WEIGHT: 7.9 kg / 17.42 lbs
WIDTH: 388 mm / 15.28 inches
HEIGHT: 131 mm / 5.16 inches
DEPTH: 428 mm / 16.85 inches
Shipping informations
PACKAGE HEIGHT: 215 mm / 8.46 inches
PACKAGE WEIGHT: 9 kg / 19.84 lbs
PACKAGE DEPTH: 506 mm / 19.92 inches
PACKAGE WIDTH: 580 mm / 22.83 inches
