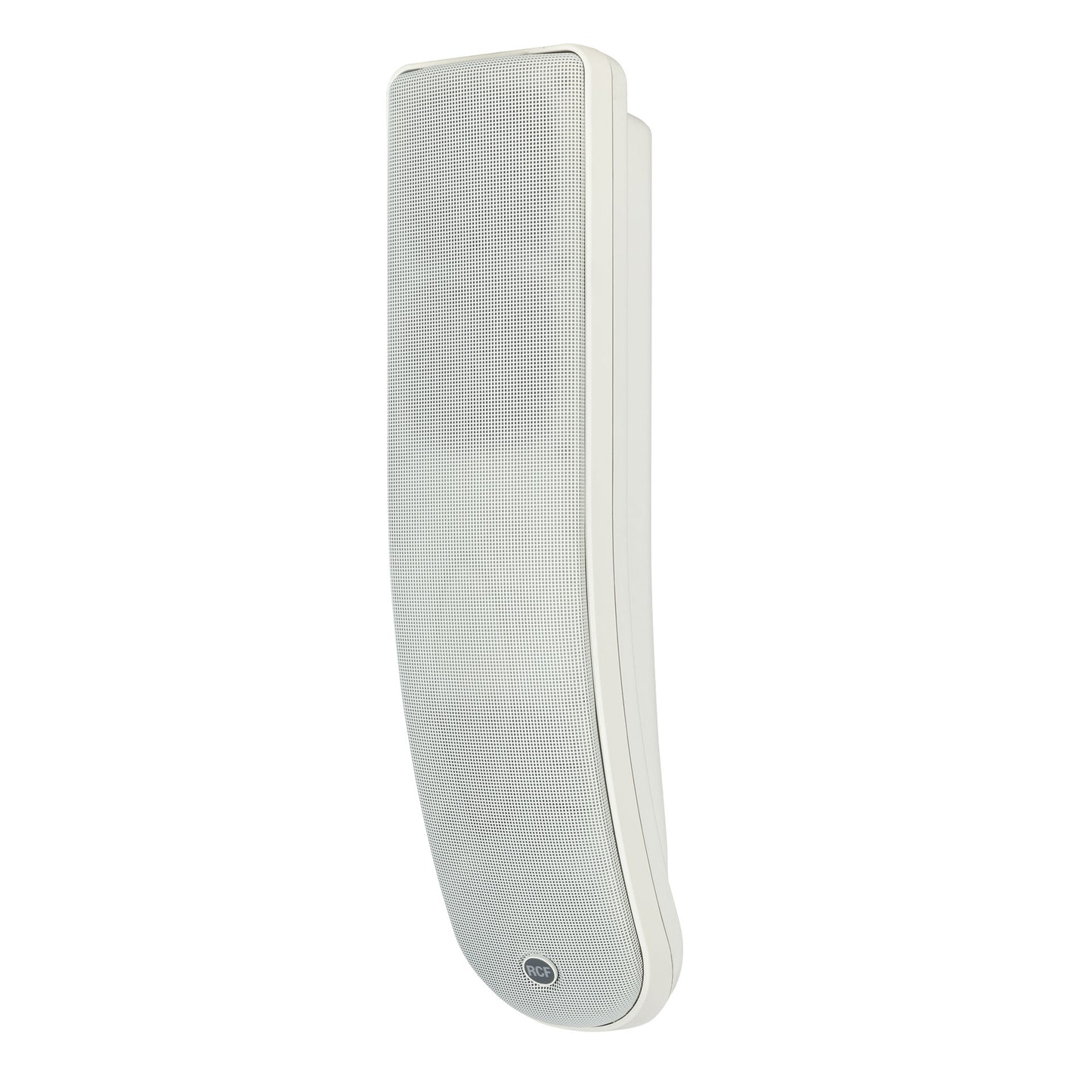

RCF MQ-100L-W Passive 3-way Column Speaker (16 ohm/70V) (Wht)

SKU: MQ-100L-W
$279.00 inc. VAT
-20% $349.00 $279.00 inc. VAT
MQ 100L
THREE-WAY COLUMN LOUDSPEAKER
  • 2 X 3.5" WOOFER, 2 X 3.5 MIDRANGE AND 2 X 0.75 DOME TWEETER
  • POWER SELECTABLE (100 V): 40 W – 20 W – 10 W – 5 W
  • 93 DB SENSITIVITY
  • COLOUR WHITE RAL 9016 AND BLACK RAL 9005
  • 2 x 3.5" woofer, 2 x 3.5 midrange and 2 x 0.75 dome tweeter
  • Power selectable (100 V): 40 W – 20 W – 10 W – 5 W
  • 93 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Plastic body, steel grille
MQ 100L (available in black and white) is a 3 way column loudspeaker providing natural hi-fi delity sound of both speech and music, suitable for sound system having fixed loudspeakers where the environment is acoustically critical or with architectural constraints. The wide horizontal coverage angle (180°) and the vertical dispersion (60°) allow the correct sound reproduction in a wide space, in order to limit feedback and improve the sound directivity which is important, for instance, in halls having a long reverberation time. The mounting accessories are included. These have been engineered to keep the column as close as possible to the wall and simplify the installation. Its tilt angle can be chosen among 0° – 5° – 10°. The 60° vertical dispersion is asymmetric: it is the difference between 20° upwards and 40° downwards. The vertical dispersion axis is in fact already angled 10° downwards, making it unnecessary to tilt the sound column excessively.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
130 Hz ÷ 20000 Hz

MAX SPL @ 1M:
112 dB

HORIZONTAL COVERAGE ANGLE:
180°

VERTICAL COVERAGE ANGLE:
60°

SYSTEM SENSITIVITY:
93 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
80 W RMS

PEAK POWER HANDLING:
320 W PEAK

RECOMMENDED AMPLIFIER:
160 W

PROTECTIONS:
PTC on tweeter

CROSSOVER FREQUENCIES:
2000 Hz
Transducers
DOME TWEETER:
2 x 0.75''

MIDRANGE:
2 x 3.5''

WOOFER:
2 x 3.5''
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
40 W - 250 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016, Black - RAL 9005

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
120 mm / 4.72 inches

DEPTH:
167 mm / 6.57 inches

HEIGHT:
500 mm / 19.69 inches

WEIGHT:
2.73 kg / 6.02 lbs
Shipping informations
PACKAGE WEIGHT:
4.8 kg / 10.58 lbs

PACKAGE DEPTH:
180 mm / 7.09 inches

PACKAGE WIDTH:
180 mm / 7.09 inches

PACKAGE HEIGHT:
550 mm / 21.65 inches
