Home » RCF MQ50C-W Passive 5" 2-way Ceiling Speaker with backcan (16 ohm/70V) (Wht)
RCF

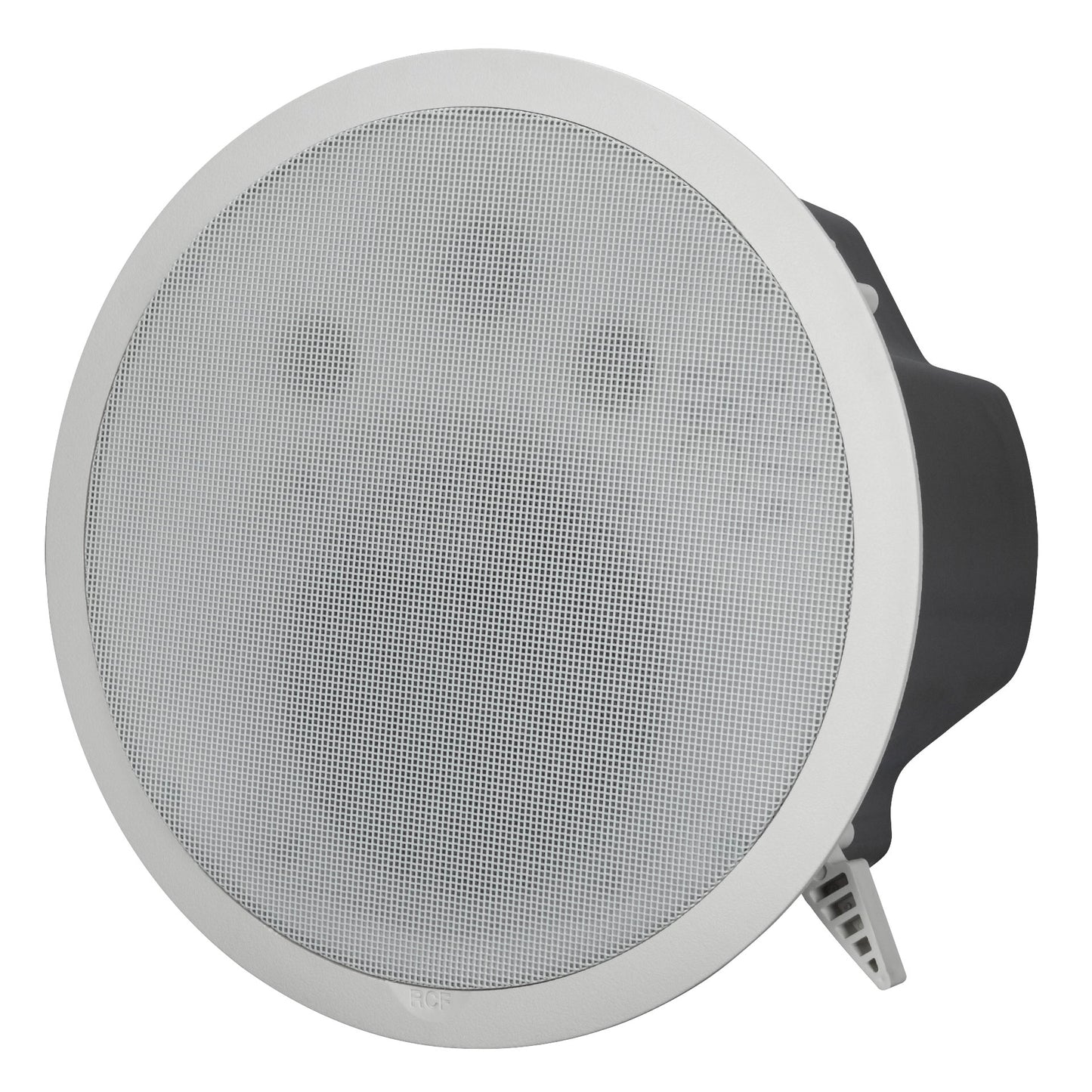

RCF MQ50C-W Passive 5" 2-way Ceiling Speaker with backcan (16 ohm/70V) (Wht)

SKU: MQ50C-W
$169.00 inc. VAT
-8% $183.00 $169.00 inc. VAT
MQ 50C
TWO-WAY CEILING SPEAKER
  • 5" WOOFER WITH 1" DOME TWEETER
  • POWER SELECTABLE (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 DB SENSITIVITY
  • COLOUR WHITE RAL 9016 AND BLACK RAL 9005
MQ 50C
TWO-WAY CEILING SPEAKER
  • 5" WOOFER WITH 1" DOME TWEETER
  • POWER SELECTABLE (100 V): 30 W – 20 W – 10 W – 5 W
  • 91 DB SENSITIVITY
  • COLOUR WHITE RAL 9016 AND BLACK RAL 9005
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
112 dB

COVERAGE ANGLE:
120°

SYSTEM SENSITIVITY:
91 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
60 W RMS

PEAK POWER HANDLING:
240 W PEAK

RECOMMENDED AMPLIFIER:
120 W

CROSSOVER FREQUENCIES:
3000 Hz
Transducers
DOME TWEETER:
1.0'' neo

WOOFER:
5.0'' neo
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
30 W - 333 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016, Black - RAL 9005

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
DEPTH:
156 mm / 6.14 inches

DIAMETER:
266 mm / 10.47 inches

WEIGHT:
2.1 kg / 4.63 lbs
Shipping informations
PACKAGE WEIGHT:
2.99 kg / 6.59 lbs

PACKAGE DEPTH:
310 mm / 12.2 inches

PACKAGE WIDTH:
310 mm / 12.2 inches

PACKAGE HEIGHT:
235 mm / 9.25 inches
