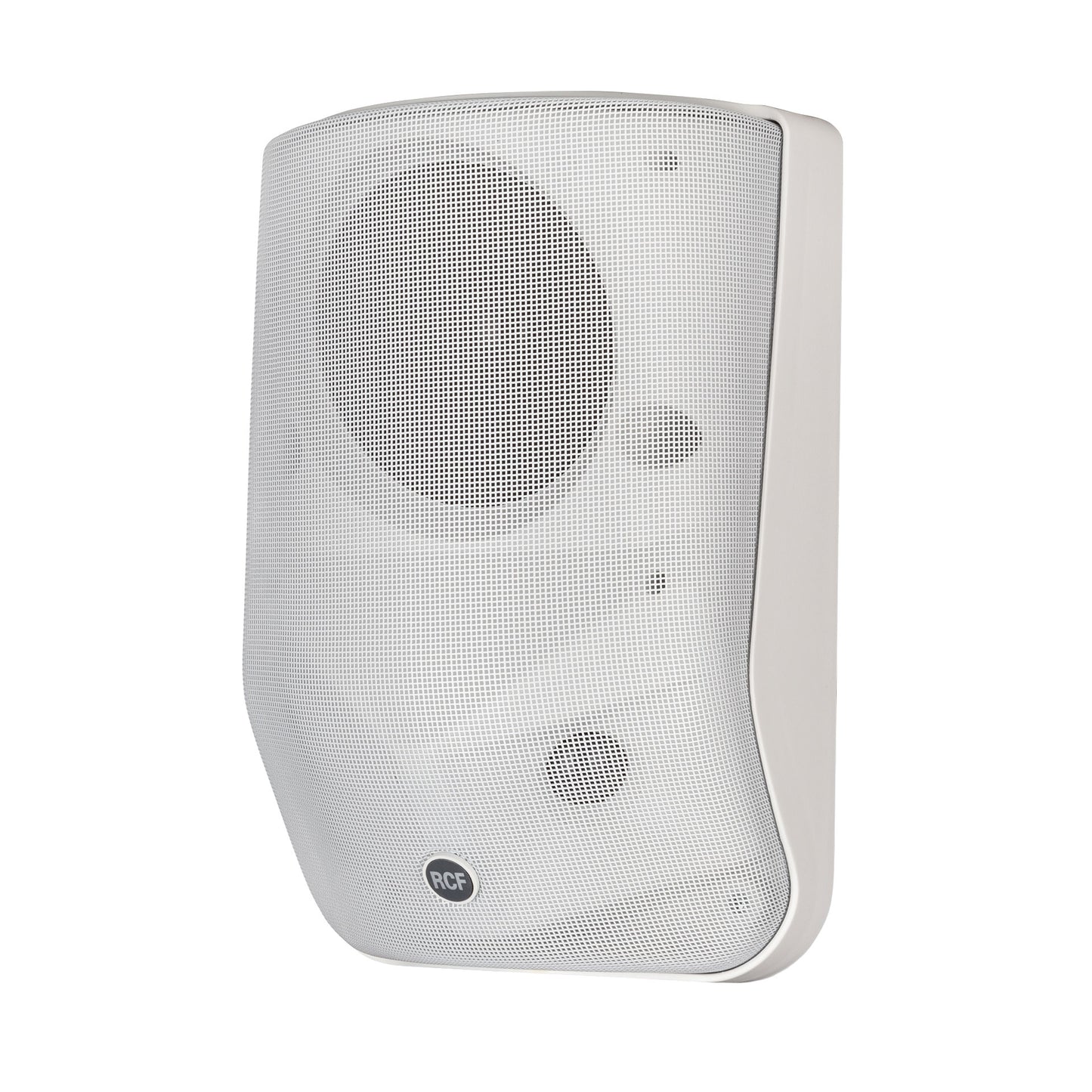

RCF MQ-60H-W Passive 5" 2-way Wall Mount Speaker (16 ohm/70V) (Wht)

SKU: MQ-60H-W
$199.00 inc. VAT
-33% $299.00 $199.00 inc. VAT
MQ 60H
TWO-WAY WALL MOUNT SPEAKER
  • 5" WOOFER WITH 2 X 1" DOME TWEETER
  • POWER SELECTABLE (100 V): 30 W – 20 W – 10 W – 5 W
  • 88 DB SENSITIVITY
  • COLOUR WHITE RAL 9016 AND BLACK RAL 9005
  • 5" woofer with 2 x 1" dome tweeter
  • Power selectable (100 V): 30 W – 20 W – 10 W – 5 W
  • 88 dB sensitivity
  • Colour white RAL 9016 and black RAL 9005
  • Plastic body, steel grille
The MQ60H is a wall mount monitor speaker designed to guarantee uniform coverage of a large area in order to limit the number of speakers and therefore the installation points. It is a two-way speaker with three transducers: the 5“ woofer and the two horn-loaded dome tweeters with constant directivity are positioned in such a way as to ensure the maximum listening comfort within the area covered. Installation is carried out in two phases: first, you mount the support on the wall and make the electrical connections; when all the works are completed, you insert the speaker and make a quick connection.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
100 Hz ÷ 19000 Hz

MAX SPL @ 1M:
109 dB

HORIZONTAL COVERAGE ANGLE:
180°

VERTICAL COVERAGE ANGLE:
100°

SYSTEM SENSITIVITY:
88 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
60 W RMS

PEAK POWER HANDLING:
240 W PEAK

RECOMMENDED AMPLIFIER:
120 W

CROSSOVER FREQUENCIES:
2000 Hz
Transducers
DOME TWEETER:
2 x 1.0''

WOOFER:
5.0''
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
30 W - 333 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016, Black - RAL 9005

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
198 mm / 7.8 inches

DEPTH:
122 mm / 4.8 inches

HEIGHT:
297 mm / 11.69 inches

WEIGHT:
2.85 kg / 6.28 lbs
Shipping informations
PACKAGE WEIGHT:
3.39 kg / 7.47 lbs

PACKAGE DEPTH:
180 mm / 7.09 inches

PACKAGE WIDTH:
265 mm / 10.43 inches

PACKAGE HEIGHT:
340 mm / 13.39 inches
