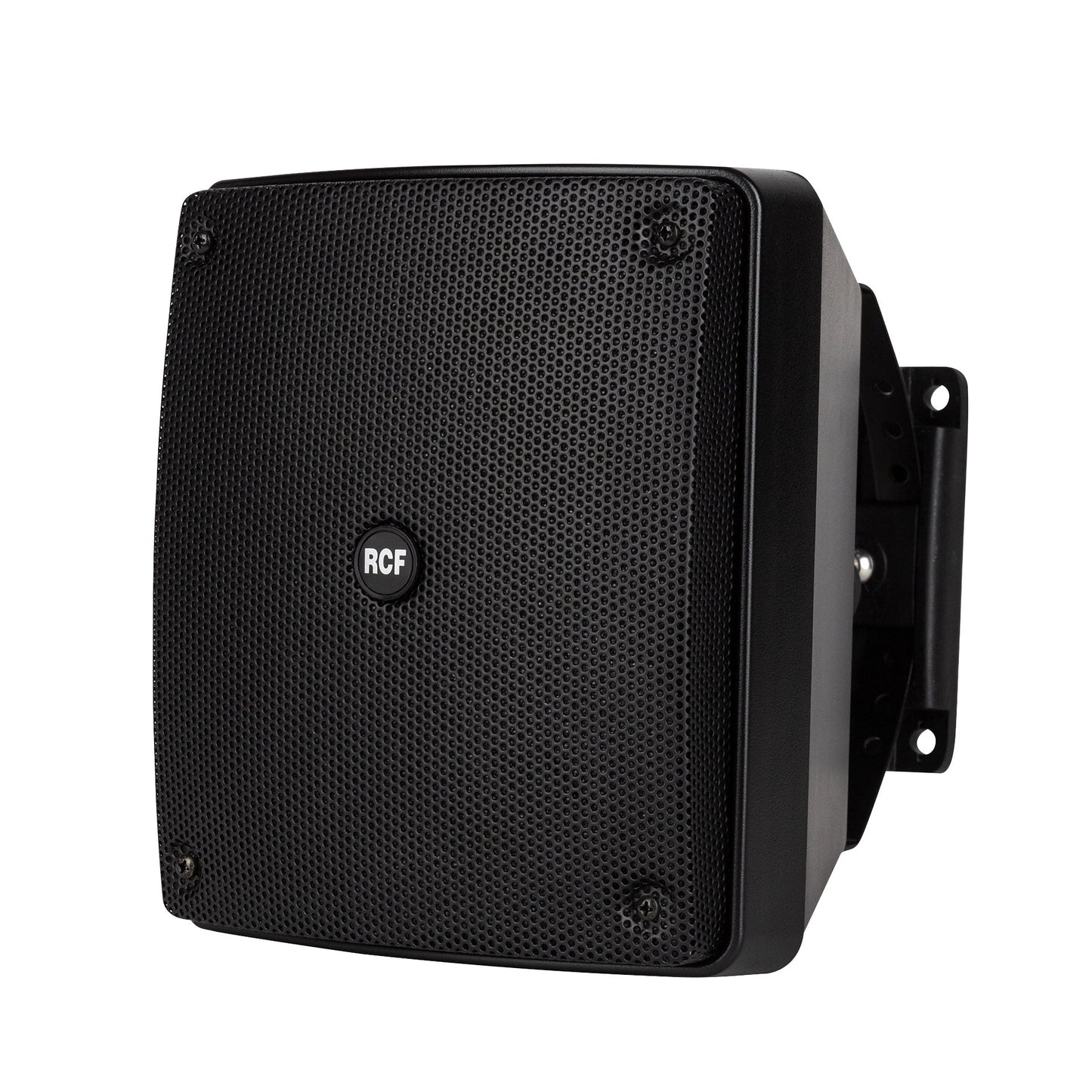

RCF MQ80P-B Passive 5" 2-way Speaker (8 ohm/70V/IP55) (Blk)

SKU: MQ80P-B
$229.00 inc. VAT
-28% $319.00 $229.00 inc. VAT
MQ 80P
TWO-WAY INDOOR OUTDOOR SPEAKER
  • 5" WOOFER WITH 1" COMPRESSION DRIVER
  • POWER SELECTABLE (100 V): 30 W – 10 W – 10 W – 5 W
  • 94 DB SENSITIVITY
  • COLOUR WHITE RAL 9016 AND BLACK RAL 7021
  • 5" woofer with 1" compression driver
  • Power selectable (100 V): 30 W – 10 W – 10 W – 5 W
  • 94 dB sensitivity
  • Colour white RAL 9016 and black RAL 7021
  • Plastic body, steel grille
  • Protection grade IP 55
High intelligibility, high efficiency and compact design make the RCF MQ80P 2-way horn-loaded sound projector speaker system the ideal solution to get clear voice and music reproduction in mid-size environment. Suitable for PA systems and background/foreground music systems. Thanks to its 90° X 60°constant directivity and to simple accessories it can be combined in clusters of 2 or more pieces to get wide and smooth coverage and to reduce the installation points. It is suitable for both indoor and outdoor installations (IP 55). The woofer is a high-excursion, PP coated paper cone – rubber surround design mounted in a tuned enclosure (port can be sealed for full outdoor installation). The tweeter is a horn-loaded compression driver with phase plug, the only way to get real and crispy intelligible voice reproduction even in wide and noisy environments. Installation of the MQ80P is quick thanks to the unique bracket with several fixing points and aiming facilities.Connections are made by a multi-pole cable. Wattage taps and voltage adjustments together with 8-ohm operation are selectable by means of a Rotary switch, accessible under a sealed cover. The enclosure is constructed of high density UV resistant self-extinguishing polystyrene with robust steel grill.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
100 Hz ÷ 20000 Hz

MAX SPL @ 1M:
114 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

SYSTEM SENSITIVITY:
94 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
60 W RMS

PEAK POWER HANDLING:
240 W PEAK

RECOMMENDED AMPLIFIER:
120 W

CROSSOVER FREQUENCIES:
3000 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0''

WOOFER:
5.0''
Input/Output section
INPUT CONNECTORS:
Cable

OUTPUT CONNECTORS:
Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
30 W - 333 ohm

POWER SELECTION 2 (100 V):
20 W - 500 ohm

POWER SELECTION 3 (100 V):
10 W - 1000 ohm

POWER SELECTION 4 (100 V):
5 W - 2000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9016, Black - RAL 7021

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
191 mm / 7.52 inches

DEPTH:
236 mm / 9.29 inches

HEIGHT:
223 mm / 8.78 inches

WEIGHT:
3.65 kg / 8.05 lbs
Shipping informations
PACKAGE WEIGHT:
4.36 kg / 9.61 lbs

PACKAGE DEPTH:
250 mm / 9.84 inches

PACKAGE WIDTH:
305 mm / 12.01 inches

PACKAGE HEIGHT:
285 mm / 11.22 inches
