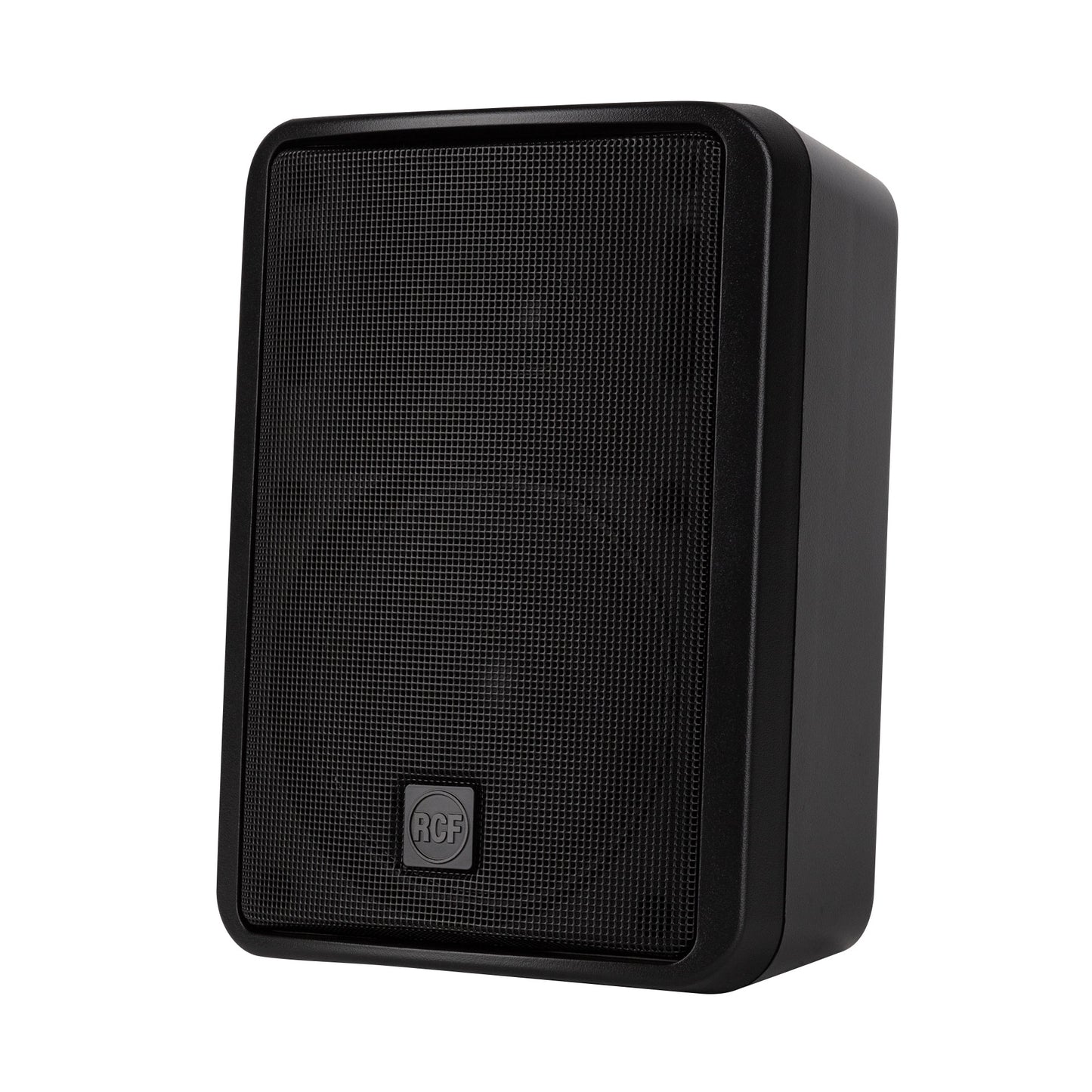

RCF MR40 Two-Way Bass Reflex Speaker 4" (Blk)

SKU: MR40
$219.00 inc. VAT
-27% $299.00 $219.00 inc. VAT
MR 40
TWO-WAY PASSIVE SPEAKER
  • 40 W (8 OHM) POWER HANDLING
  • 108 DB MAX SPL
  • SELF-EXTINGUISHING PLASTIC CABINET
  • SWIVEL WALL MOUNT ACCESSORY INCLUDED
  • 40 W (8 ohm) power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" neodyminum dome tweeter (0.8’’ v.c.)
  • Colour black RAL 9005 and white RAL 9003
  • Swivel wall mount accessory included
  • M6 inserts available for optional U bracket
  • 4 pole EUROBLOCK connector
MR 40 is a bass- reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make the MR 40 the perfect speaker for listening in demanding applications.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
108 dB

HORIZONTAL COVERAGE ANGLE:
110°

VERTICAL COVERAGE ANGLE:
100°

DIRECTIVITY INDEX Q:
7

SYSTEM SENSITIVITY:
86 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
40 W RMS

PEAK POWER HANDLING:
160 W PEAK

RECOMMENDED AMPLIFIER:
80 W

PROTECTIONS:
Bulb lamp

CROSSOVER FREQUENCIES:
3000 Hz
Transducers
DOME TWEETER:
1.0'' neo, 0.8'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
93 dB, 1W @ 1m

WOOFER:
4.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
40 W AES, 80 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
86 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005, White - RAL 9003

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
154 mm / 6.06 inches

DEPTH:
135 mm / 5.31 inches

HEIGHT:
216 mm / 8.5 inches

WEIGHT:
2.2 kg / 4.85 lbs
Shipping informations
PACKAGE WEIGHT:
5.3 kg / 11.68 lbs

PACKAGE DEPTH:
235 mm / 9.25 inches

PACKAGE WIDTH:
400 mm / 15.75 inches

PACKAGE HEIGHT:
285 mm / 11.22 inches
