Home » RCF MR40-T Two-Way Bass Reflex Speaker 4" w/ Transformer (Blk)
RCF

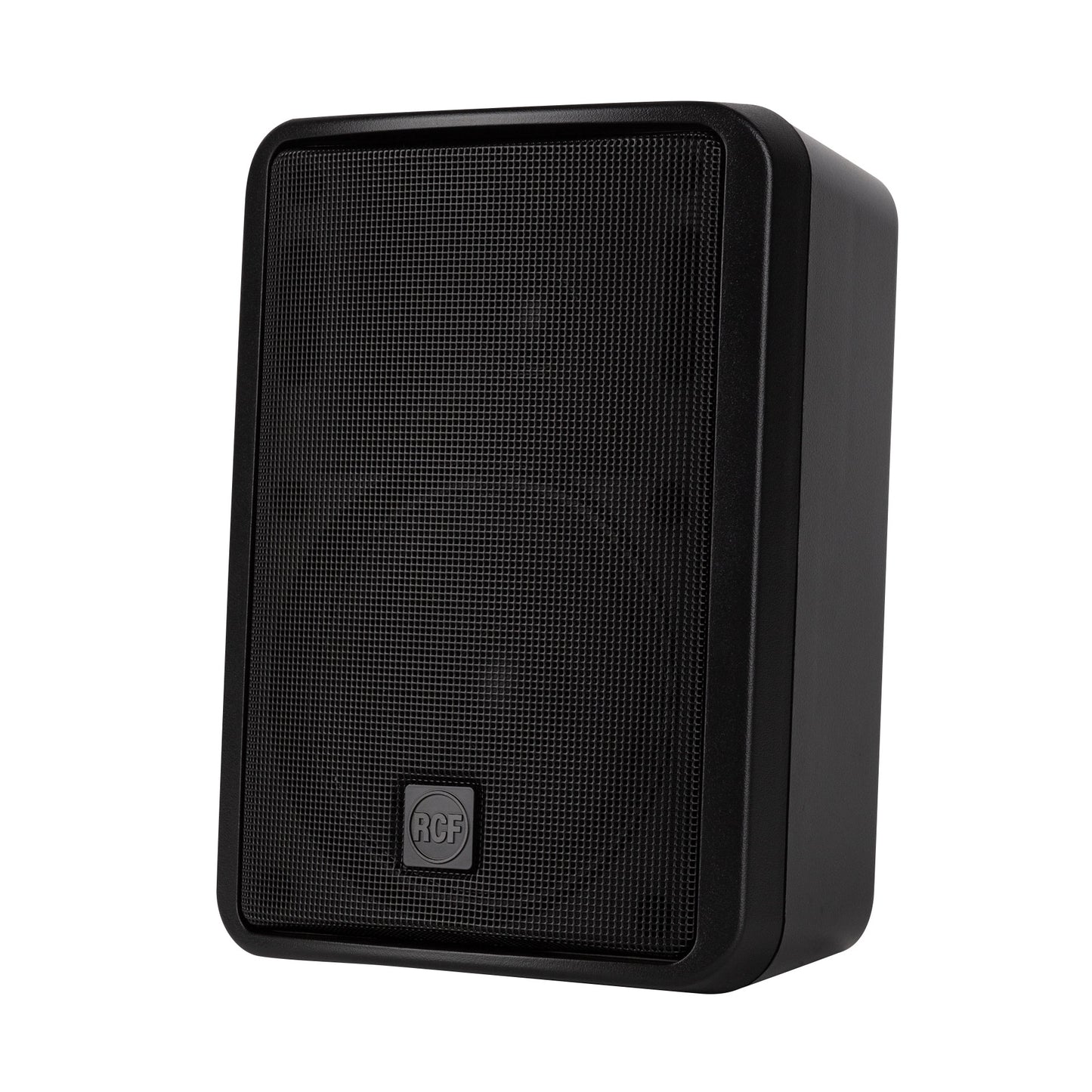

RCF MR40-T Two-Way Bass Reflex Speaker 4" w/ Transformer (Blk)

SKU: MR40-T
$249.00 inc. VAT
-24% $329.00 $249.00 inc. VAT
MR 40T
TWO-WAY PASSIVE SPEAKER WITH TRANSFORMER
  • 40 W (8 OHM) / 20 W - 10 W - 5 W - 2.5 W (70/100V) POWER HANDLING
  • 108 DB MAX SPL
  • SELF-EXTINGUISHING PLASTIC CABINET
  • SWIVEL WALL MOUNT ACCESSORY INCLUDED
  • 40 W (8 ohm) / 20 W - 10 W - 5 W - 2.5 W (70/100V) power handling
  • 108 dB max SPL
  • 70 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 4" woofer (1’’ v.c.)
  • 1 x 1" neodymium dome tweeter (0.8’’ v.c.)
  • Colour black RAL 9005 and white RAL 9003
  • Swivel wall mount accessory included
  • M6 inserts available for optional U bracket
  • 4 pole EUROBLOCK connector
MR 40T is a bass- reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 40T the perfect speaker for listening in the most demanding applications.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
70 Hz ÷ 20000 Hz

MAX SPL @ 1M:
108 dB

HORIZONTAL COVERAGE ANGLE:
110°

VERTICAL COVERAGE ANGLE:
100°

DIRECTIVITY INDEX Q:
7

SYSTEM SENSITIVITY:
86 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
40 W RMS

PEAK POWER HANDLING:
160 W PEAK

RECOMMENDED AMPLIFIER:
80 W

PROTECTIONS:
Bulb lamp

CROSSOVER FREQUENCIES:
3000 Hz
Transducers
DOME TWEETER:
1.0'' neo, 0.8'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
93 dB, 1W @ 1m

WOOFER:
4.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
40 W AES, 80 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
86 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
20 W - 500 ohm

POWER SELECTION 2 (100 V):
10 W - 1000 ohm

POWER SELECTION 3 (100 V):
5 W - 2000 ohm

POWER SELECTION 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005, White - RAL 9003

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
154 mm / 6.06 inches

DEPTH:
135 mm / 5.31 inches

HEIGHT:
216 mm / 8.5 inches

WEIGHT:
2.3 kg / 5.07 lbs
Shipping informations
PACKAGE WEIGHT:
5.5 kg / 12.13 lbs

PACKAGE DEPTH:
235 mm / 9.25 inches

PACKAGE WIDTH:
400 mm / 15.75 inches

PACKAGE HEIGHT:
285 mm / 11.22 inches
