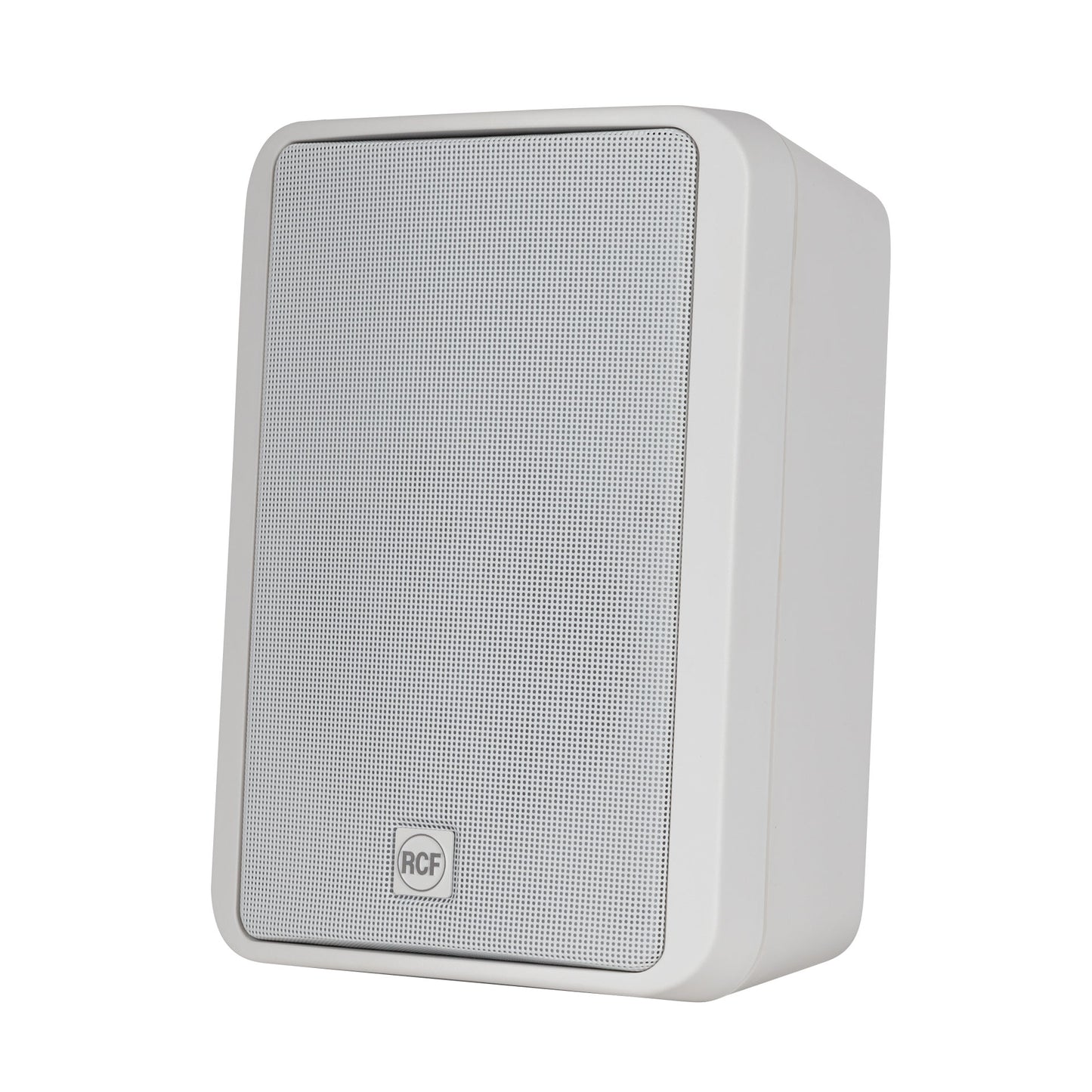

RCF MR50-W Two-Way Bass Reflex Speaker 5" (Wht)

SKU: MR50-W
$249.00 inc. VAT
-24% $329.00 $249.00 inc. VAT
MR 50
TWO-WAY PASSIVE SPEAKER
  • 60W RMS POWER HANDLING
  • 110 DB MAX SPL
  • SELF-EXTINGUISHING PLASTIC CABINET
  • SWIVEL WALL MOUNT ACCESSORY INCLUDED
  • 60 W (8 ohm) power handling
  • 110 dB max SPL
  • 60 ÷ 20000 Hz frequency range
  • 110° x 100° coverage angles
  • 1 x 5" woofer (1’’ v.c.)
  • 1 x 1" neodymium dome tweeter (0.8’’ v.c.)
  • Colour black RAL 9005 and white RAL 9003
  • Swivel wall mount accessory included
  • M6 inserts available for optional U bracket
  • 4 pole EUROBLOCK connector
MR 50 is a bass- reflex two-way speaker designed to deliver uncompromised audio performance and high reliability in fixed installations. Blend in with any environment and deliver deep bass, smooth midrange, and finely-detailed high-frequency response. Quality components and careful acoustic design make MR 50 the perfect speaker for listening in the most demanding applications.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
110 dB

HORIZONTAL COVERAGE ANGLE:
110°

VERTICAL COVERAGE ANGLE:
100°

DIRECTIVITY INDEX Q:
7

SYSTEM SENSITIVITY:
87 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
60 W RMS

PEAK POWER HANDLING:
240 W PEAK

RECOMMENDED AMPLIFIER:
120 W

PROTECTIONS:
Bulb lamp

CROSSOVER FREQUENCIES:
3000 Hz
Transducers
DOME TWEETER:
1.0'' neo, 0.8'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
10 W AES, 20 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
93 dB, 1W @ 1m

WOOFER:
5.0'', 1.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
60 W AES, 120 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
87 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black - RAL 9005, White - RAL 9003

HARDWARE:
Wall mount bracket

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
WIDTH:
187 mm / 7.36 inches

DEPTH:
167 mm / 6.57 inches

HEIGHT:
270 mm / 10.63 inches

WEIGHT:
3.8 kg / 8.38 lbs
Shipping informations
PACKAGE WEIGHT:
8.5 kg / 18.74 lbs

PACKAGE DEPTH:
250 mm / 9.84 inches

PACKAGE WIDTH:
510 mm / 20.08 inches

PACKAGE HEIGHT:
370 mm / 14.57 inches
