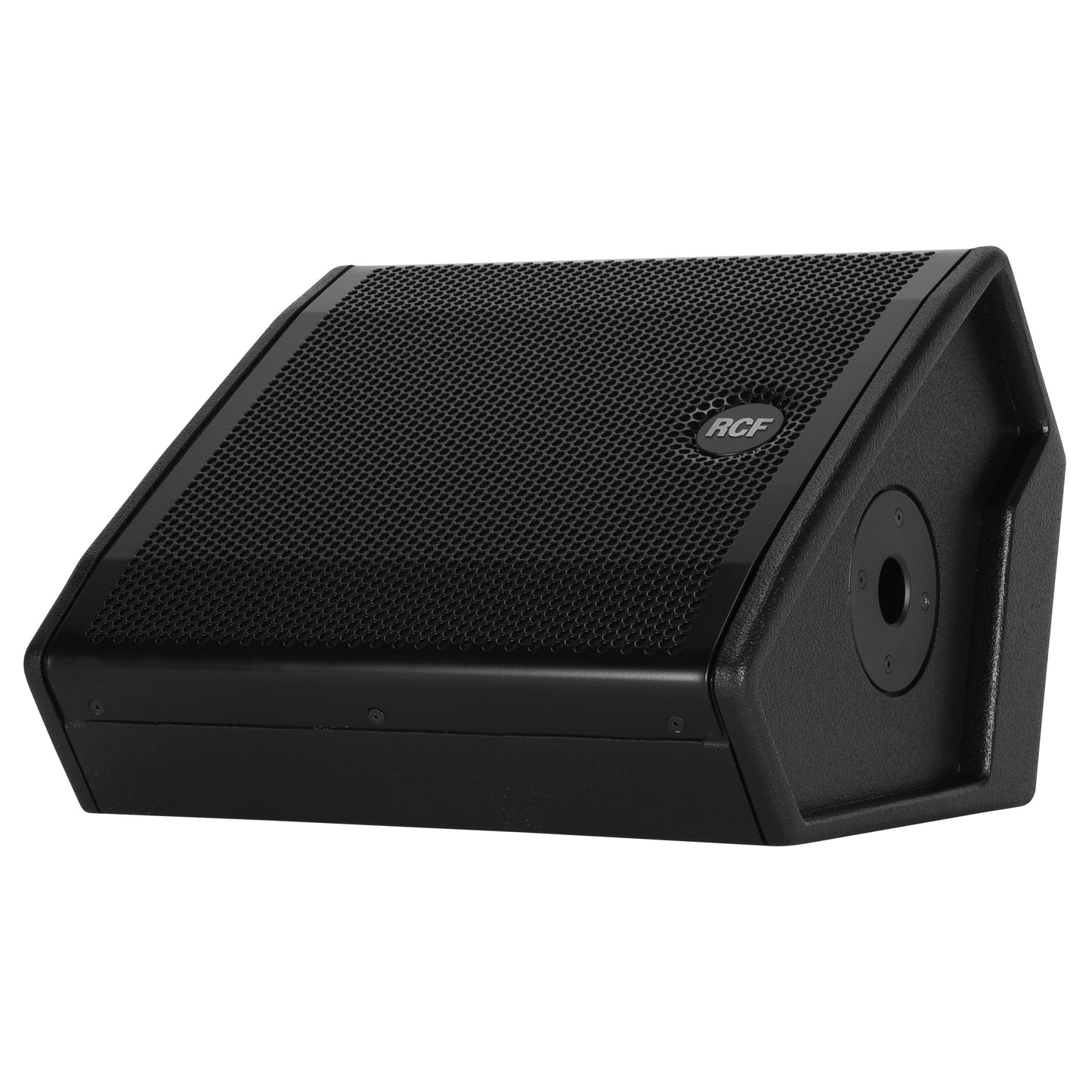

RCF NX10-SMA Active 10" 2-way Coaxial Powered Monitor

SKU: NX10-SMA
$1,699.00 inc. VAT
-19% $2,099.00 $1,699.00 inc. VAT
NX 10-SMA
ACTIVE COAXIAL STAGE MONITOR
  • 800 WATT PEAK, 400 WATT RMS DIGITAL BI-AMPLIFICATION
  • 10" HIGH POWER NEODYMIUM WOOFER, 2.5" VOICE COIL
  • 1.7 KAPTON DOME, 1" EXIT, NEODYMIUM HIGH FREQUENCY DRIVER
  • 127 DB MAX SPL
  •  800 Watt Peak, 400 Watt RMS digital bi-amplification
  •  127 dB max spl
  •  60° x 60° constant directivity horn
  •  10" High power neodymium woofer, 2.5" voice coil
  •  1.7 kapton dome, 1" exit, neodymium high frequency driver
  •  DSP processing, floor - free field equalization, soft limiter and protection
  •  Combo xlr/jack input, xlr signal output
The NX 10-SMA is equipped with new high power 400 W digital amplifier and a newly designed 10 " coaxial neodymium transducer that guarantees outstanding audio quality and definition as well as an extremely lightweight of the final system.
The NX 10-SMA can be also used as a portable PA system, thanks to the rugged powder coated steel pole mount installed on the side. In order to control the response of the speaker in such different applications, RCF has incorporated two special Equalization Modes: - Floor, for stage monitoring; - Free Field, for the use of the speakers as a stand-alone PA system. Cabinet is made in Baltic Birch plywood, finished with an extremely resistant paint for an extensive use on the road. An ergonomic side handle, integrated with the input panel, is provided for an easier transport of the speaker.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
127 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
Coaxial 1.0'' neo, 1.75'' v.c

WOOFER:
10'' neo, 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
+4 dBu
Processor section
PROTECTIONS:
RMS, HF

LIMITER:
Soft Limiter

CONTROLS:
Freefield, Floor
Power section
TOTAL POWER:
800 W Peak, 400 W RMS

HIGH FREQUENCIES:
200 W Peak, 100 W RMS

LOW FREQUENCIES:
600 W Peak, 300 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
1 on side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
324 mm / 12.76 inches

WIDTH:
450 mm / 17.72 inches

DEPTH:
417 mm / 16.42 inches

WEIGHT:
14.3 kg / 31.53 lbs
Shipping informations
PACKAGE HEIGHT:
504 mm / 19.84 inches

PACKAGE WIDTH:
504 mm / 19.84 inches

PACKAGE DEPTH:
404 mm / 15.91 inches

PACKAGE WEIGHT:
17.4 kg / 38.36 lbs
