Home » RCF NX32-A Active 12" 2-way Powered Speaker w/ 3" HF
RCF

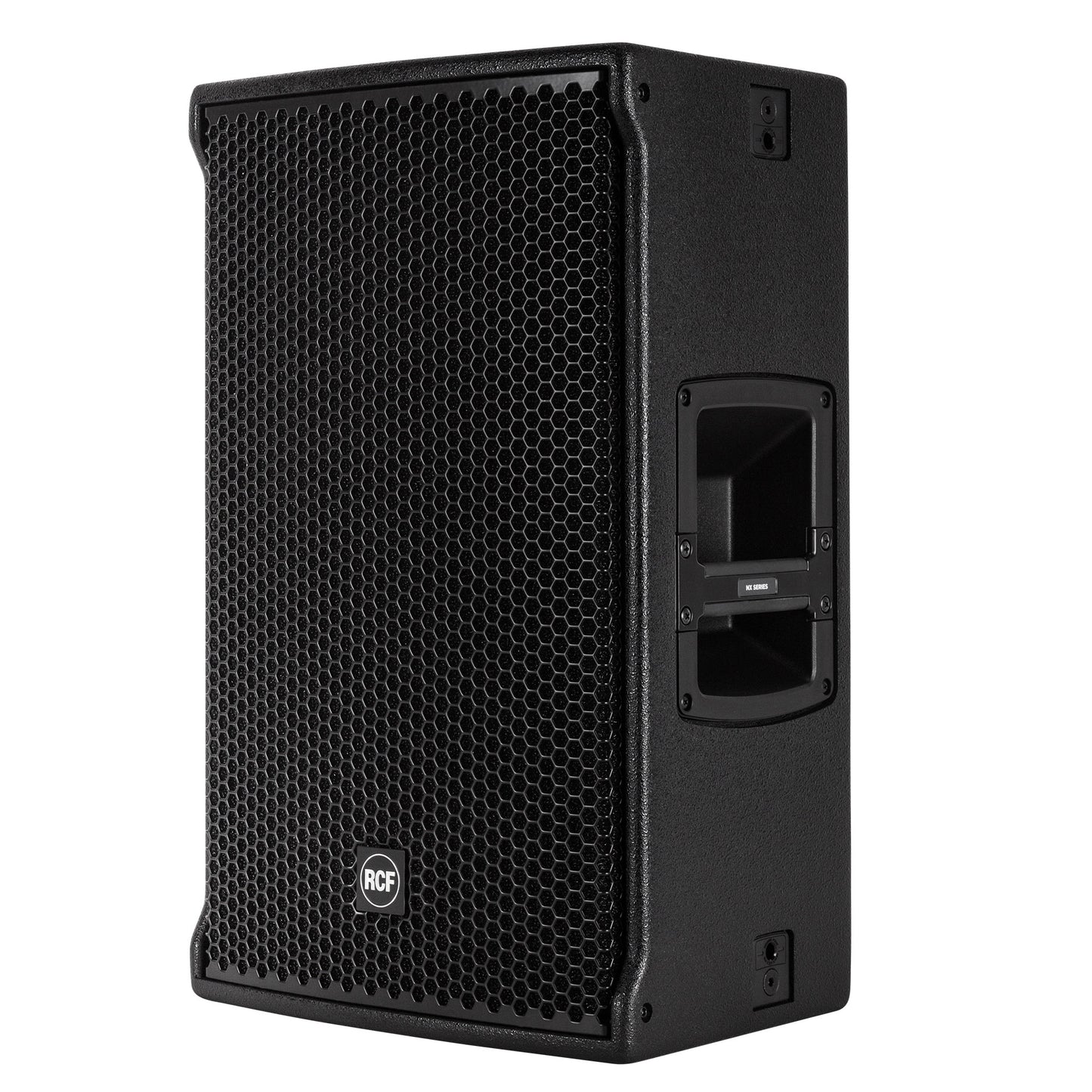

RCF NX32-A Active 12" 2-way Powered Speaker w/ 3" HF

SKU: NX32-A
$1,499.00 inc. VAT
-25% $1,999.00 $1,499.00 inc. VAT
NX 32-A
ACTIVE TWO WAY MULTIPURPOSE SPEAKER
  • 1400 W 2-WAY CLASS-D AMPLIFIER
  • 131 DB SPL MAX
  • 50 – 20000 HZ FREQUENCY RANGE
  • 90° X 60° CONSTANT DIRECTIVITY COVERAGE
  • 1400 W 2-way class-D amplifier
  • 131 dB SPL Max
  • 50 – 20000 Hz Frequency Range
  • 90° x 60° constant directivity coverage
  • 12" woofer, 2.5" voice coil
  • Horn loaded 3.0''neodymium c. driver
  • Multiple rigging points
The NX 32-A is an active speaker specifically designed to be the everyday tool for rental companies and professional musicians. It’s one of the most flexible speaker for deploying high-quality sound as a stand-alone FOH system or as a satellite (with subwoofer) but either as a stage monitor or a or a front, down or side fill speaker.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.4'' neo, 3.0'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XRL, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu

MIC. INPUT SENSITIVITY:
-32 dBu
Processor section
CROSSOVER FREQUENCIES:
700 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, boost, Mic/Line
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
1000 W Peak, 500 W RMS

COOLING:
Convection

CONNECTIONS:
Powercon IN/OUT
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HARDWARE:
5 x M10, 4 x quick lock

HANDLES:
2 Side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
600 mm / 23.62 inches

WIDTH:
365 mm / 14.37 inches

DEPTH:
378 mm / 14.88 inches

WEIGHT:
20.6 kg / 45.42 lbs
Shipping informations
PACKAGE HEIGHT:
655 mm / 25.79 inches

PACKAGE WIDTH:
425 mm / 16.73 inches

PACKAGE DEPTH:
440 mm / 17.32 inches

PACKAGE WEIGHT:
23.6 kg / 52.03 lbs
