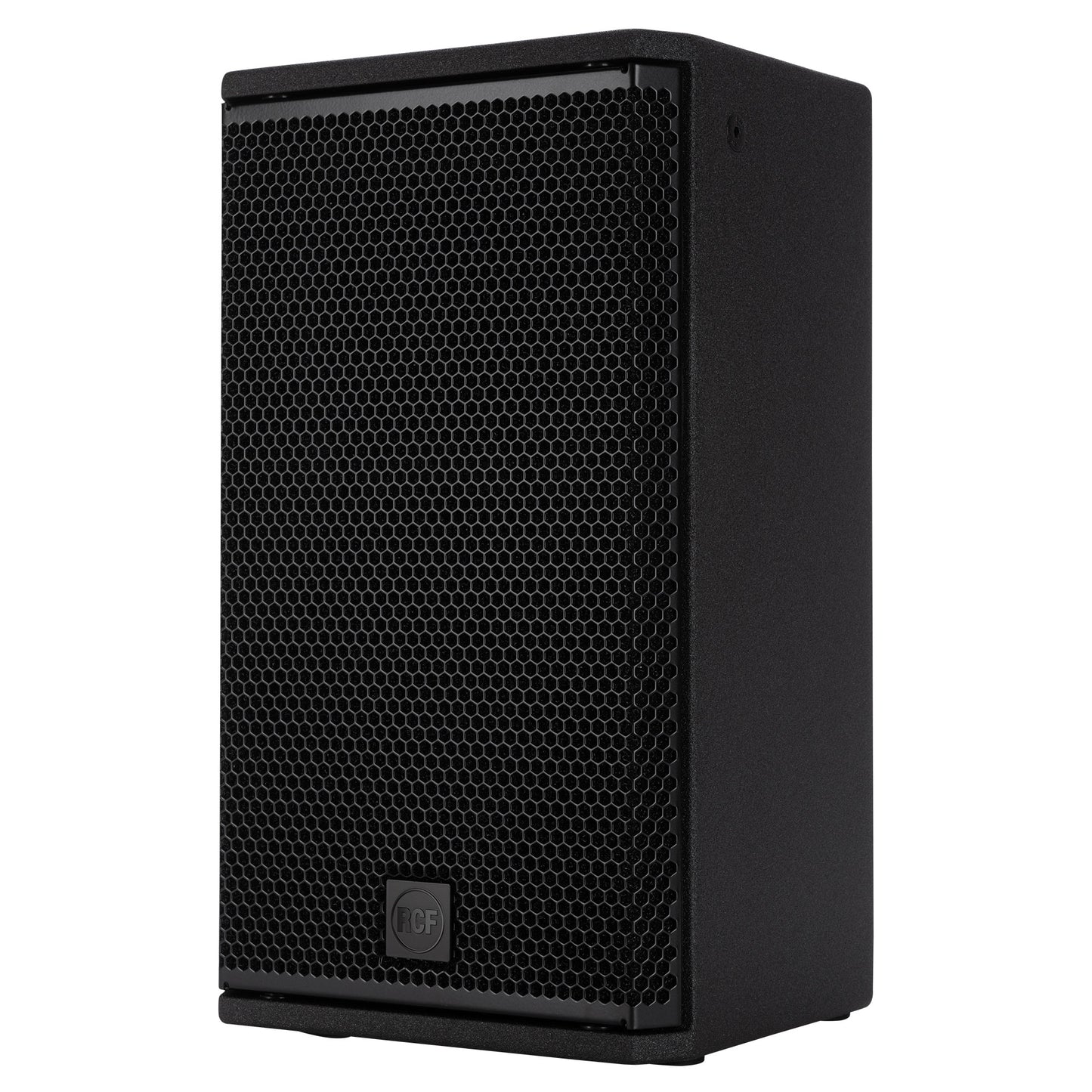

RCF NX-910A Active 10" 2-way Powered Speaker

SKU: NX-910A
$1,099.00 inc. VAT
-45% $1,999.00 $1,099.00 inc. VAT
NX 910-A
PROFESSIONAL ACTIVE SPEAKER
  • UP TO 130 DB SOUND PRESSURE LEVEL
  • 2100W CLASS-D BI-AMPLIFICATION
  • 50-20000 HZ LINEAR FREQUENCY RESPONSE
  • 1.75" COMPRESSION DRIVER
  • Up to 130 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • 50-20000 Hz linear frequency response
  • 1.75" Compression Driver
  • 10" Woofer
  • FiRPHASE zero degrees phase technology
  • Bass Motion Control woofer excursion management
NX 910-A is masterfully engineered from the ground up to deliver stellar audio performance for solo musicians, bands, and DJs. The combination of 1.75" compression driver, 10" woofer, two-channel 2100W amplifier, and a constant directivity waveguide produces coherent 100° x 60° coverage for the listening area with up to 130 dB SPL of distortion-free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 910-A blends high-performance and reliability in a compact package. Built specifically for demanding live sound applications, it also features multiple rigging points for fixed installation. Blending RCF proprietary FiRPHASE and Bass Motion Control DSP processing, NX 9 Series speakers are perfectly tuned for each model, delivering absolute clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
50 Hz ÷ 20000 Hz

MAX SPL @ 1M:
130 dB

HORIZONTAL COVERAGE ANGLE:
100°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.75'' v.c

WOOFER:
10'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
1600 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Linear, Boost, Stage, Volume
Power section
TOTAL POWER:
2100 W Peak

HIGH FREQUENCIES:
700 W Peak

LOW FREQUENCIES:
1400 W Peak

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Plywood

HARDWARE:
2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear

HANDLES:
1 Top

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
510 mm / 20.08 inches

WIDTH:
295 mm / 11.61 inches

DEPTH:
333 mm / 13.11 inches

WEIGHT:
16.4 kg / 36.16 lbs
Shipping informations
PACKAGE HEIGHT:
556 mm / 21.89 inches

PACKAGE WIDTH:
388 mm / 15.28 inches

PACKAGE DEPTH:
348 mm / 13.7 inches

PACKAGE WEIGHT:
18.1 kg / 39.9 lbs
