RCF

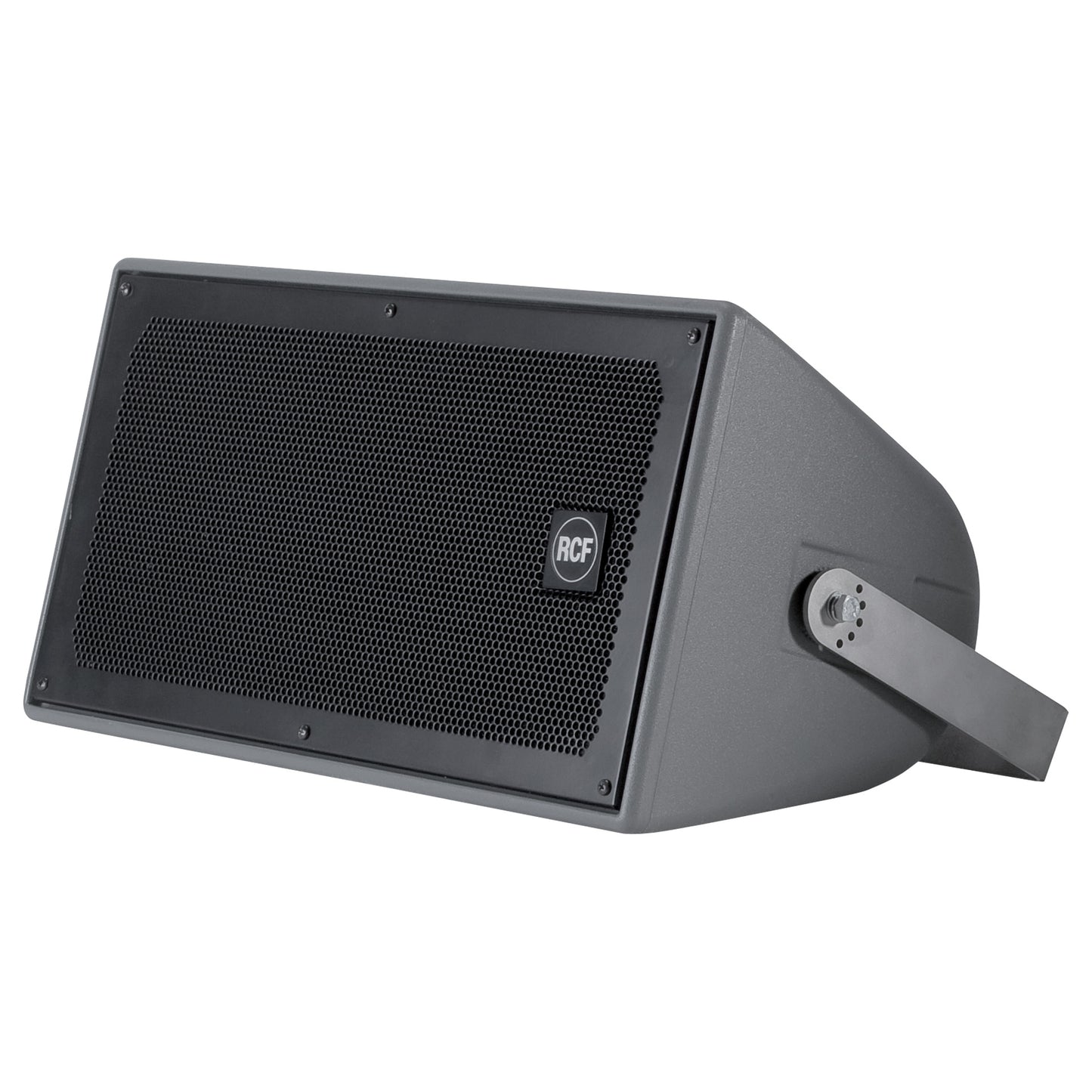

RCF P1108-T-W Passive 8" 2-way Outdoor Weatherproof Speaker (16 ohm/70V, IP55)

SKU: P1108-T-W
Regular price $699.00 inc. VAT
Regular price -13% $799.00 Sale price $699.00 inc. VAT
P 1108T
WEATHERPROOF TWO-WAY SPEAKER
  • 121 DB MAX SPL, 100W RMS
  • WEATHERPROOF CABINET IP 55 WITH UV PROTECTION
  • 100 V LINE TRANSFORMER
  • 90° X 60° CONSTANT DIRECTIVITY HORN

  • 121 dB Max SPL, 100W RMS
  • Weatherproof cabinet IP 55 with UV protection
  • 100 V line transformer
  • 90° x 60° constant directivity horn
  • Rotomoulded cabinet available in grey or white
  • Built-in passive LICC crossover with AMCDP protection
  • 1 x 8" woofer with 1.5" voice coil
  • 1 x 1.4" voice coil RCF Precision neodymium compression driver
The P 1108T is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The high-frequency section includes a constant directivity CMD horn-loaded enclosure with a 1.4" voice coil RCF Precision neodymium compression driver for smooth, highly-controlled coverage. The low-frequency section features a 8" woofer with a 1.5" voice coil. The P 1108T also features a selectable line transformer for 100 V applications, with built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece rotomolded cabinet is fully UV protected and is equipped with M8 (4x) brass inserts and one electroplated steel U-bracket. The aluminum grille cover is powder coated with a water-repellent backing material, and a rotatable logo plate. The P 1108T meets IP 55 standard requirements (International Protection Rating).
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
121 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
95 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
100 W RMS

PEAK POWER HANDLING:
400 W PEAK

RECOMMENDED AMPLIFIER:
200 W

PROTECTIONS:
PTC

CROSSOVER FREQUENCIES:
2200 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
35 W AES, 70 W PROGRAM POWER

SENSITIVITY (DB, 1W @ 1M):
102 dB, 1W @ 1m

WOOFER:
8'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
100 W AES, 200 W PEAK

SENSITIVITY (DB, 1W @ 1M):
91 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Neoprene Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
60 W - 167 ohm

POWER SELECTION 2 (100 V):
30 W - 333 ohm

POWER SELECTION 3 (100 V):
15 W - 667 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey, White - RAL 9003

HARDWARE:
4 x M8 + U-Bracket and Pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
493 mm / 19.41 inches

DEPTH:
250 mm / 9.84 inches

HEIGHT:
266 mm / 10.47 inches

WEIGHT:
11.8 kg / 26.01 lbs
Shipping informations
PACKAGE WEIGHT:
13.2 kg / 29.1 lbs

PACKAGE DEPTH:
289 mm / 11.38 inches

PACKAGE WIDTH:
289 mm / 11.38 inches

PACKAGE HEIGHT:
534 mm / 21.02 inches
