Home » RCF P2110-T Passive 10" 2-way Outdoor Weatherproof Speaker (16 ohm/70V, IP55)
RCF

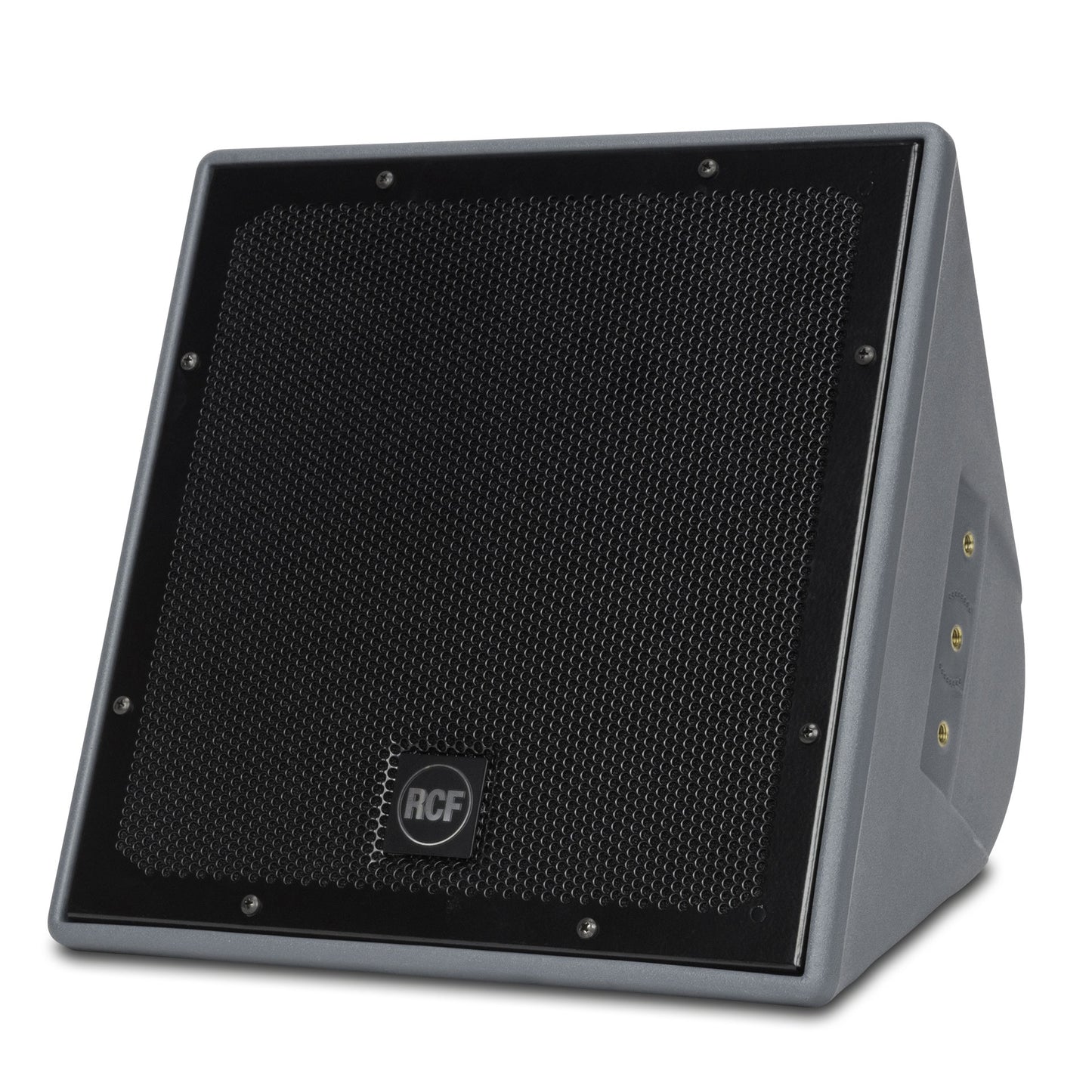

RCF P2110-T Passive 10" 2-way Outdoor Weatherproof Speaker (16 ohm/70V, IP55)

SKU: P2110-T
$999.00 inc. VAT
-23% $1,299.00 $999.00 inc. VAT
P 2110T
WEATHERPROOF COAXIAL TWO-WAY SPEAKER
  • 124 DB SPL MAX, 200W RMS
  • WEATHERPROOF IP55 CABINET WITH UV PROTECTION
  • LINE TRANSFORMER
  • 90° X 40° CMD CONSTANT DIRECTIVITY HORN
  • 124 dB SPL Max, 200W RMS
  • Weatherproof IP55 cabinet with UV protection
  • Line transformer
  • 90° x 40° CMD constant directivity horn
  • 10" high-output LF transducer with 2.5" voice coil
  • RCF Precision 1" C. Driver with 1.5" voice coil
  • 12 brass suspension points (M10)
  • Roto-moulded single piece cabinet
The P 2110T is a weatherproof full-range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 10” woofer with a 2.5” voice coil. The high-frequency section combines a 1” RCF Precision compression driver with a 1.5” diaphragm assembly centrally-mounted in the throat of the LF driver, and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P 2110T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements. Included are M10 brass inserts (12 x) and one durable corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and a rotatable logo plate.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
95 Hz ÷ 20000 Hz

MAX SPL @ 1M:
124 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
40°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
95 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
200 W RMS

PEAK POWER HANDLING:
800 W PEAK

RECOMMENDED AMPLIFIER:
400 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
2000 Hz
Transducers
COMPRESSION DRIVER:
1.0'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PEAK

SENSITIVITY (DB, 1W @ 1M):
106 dB, 1W @ 1m

WOOFER:
Coaxial 10'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
180 W AES, 360 W PEAK

SENSITIVITY (DB, 1W @ 1M):
95 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Neoprene Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
60 W - 167 ohm

POWER SELECTION 2 (100 V):
30 W - 333 ohm

POWER SELECTION 3 (100 V):
15 W - 667 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey

HARDWARE:
12 x M8 inserts + U-brackets and pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
350 mm / 13.78 inches

DEPTH:
320 mm / 12.6 inches

HEIGHT:
350 mm / 13.78 inches

WEIGHT:
13.4 kg / 29.54 lbs
Shipping informations
PACKAGE WEIGHT:
16.3 kg / 35.94 lbs

PACKAGE DEPTH:
370 mm / 14.57 inches

PACKAGE WIDTH:
370 mm / 14.57 inches

PACKAGE HEIGHT:
400 mm / 15.75 inches
