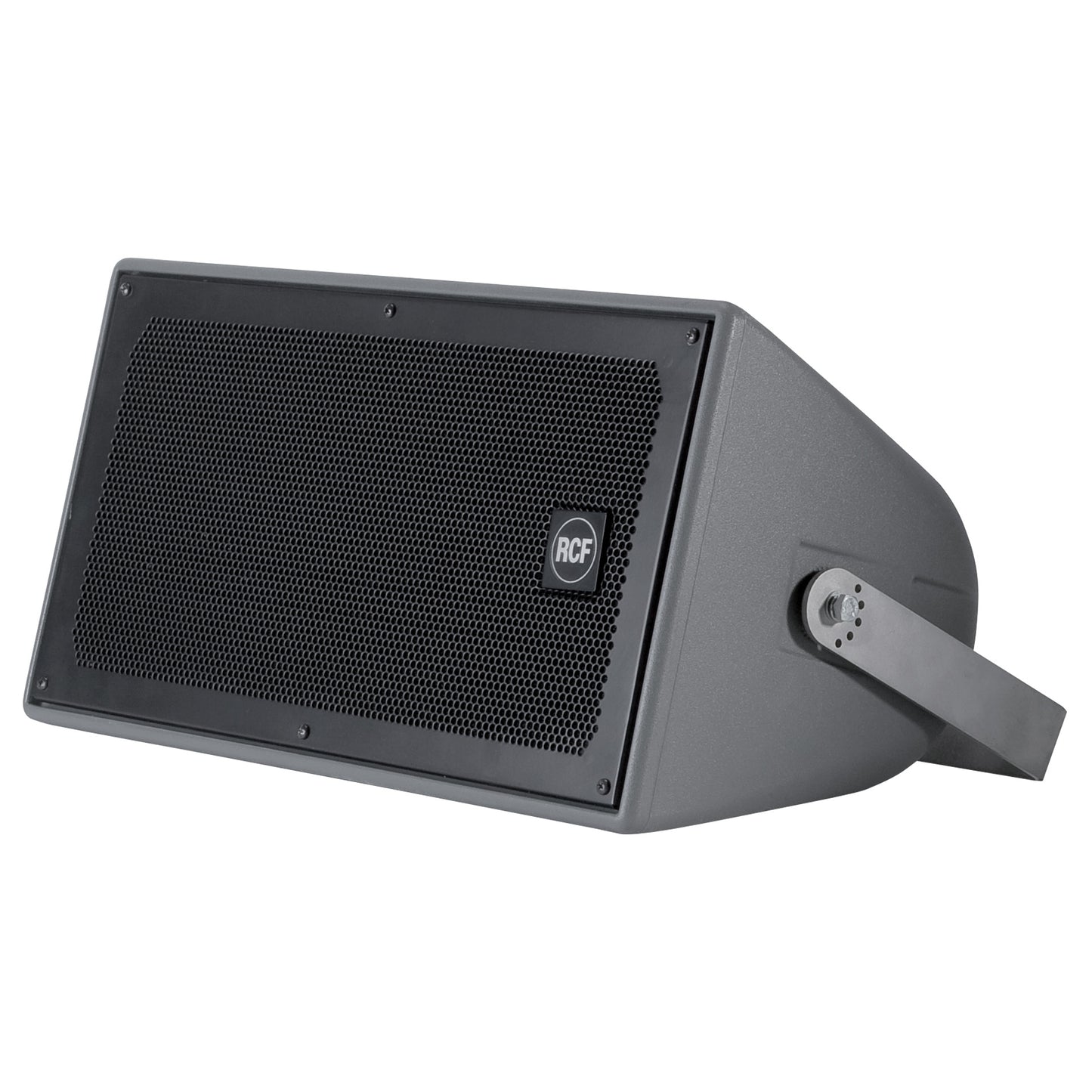

RCF P3108 Passive 8" 2-way Outdoor Weatherproof Speaker (8 ohm, IP55)

SKU: P3108
$999.00 inc. VAT
-23% $1,299.00 $999.00 inc. VAT
P 3108
WEATHERPROOF TWO-WAY SPEAKER
  • 125 DB MAX SPL, 300W RMS
  • WEATHERPROOF IP55 CABINET WITH UV PROTECTION
  • ROTOMOULDED SINGLE PIECE CABINET
  • 90° X 60° CONSTANT DIRECTIVITY HORN
  • 125 dB Max SPL, 300W RMS
  • Weatherproof IP55 cabinet with UV protection
  • Rotomoulded single piece cabinet
  • 90° x 60° constant directivity horn
  • 1 x 8" woofer with 2.5" voice coil
  • 1 x 1.5" voice coil RCF Precision compression driver
  • Built-in LICC crossover with AMCDP protection
  • Amphenol IP67 4 pole input connector
The P 3108 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations.The high-frequency section includes two constant directivity CMD horns, each loaded with a 1" RCF Precision neodymium compression driver, and a 1.5" diaphragm assembly. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 (4x) brass inserts and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The front aluminum grille cover is powder coated with a water-repellent backing material, with a rotatable logo plate.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
125 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
11

SYSTEM SENSITIVITY:
94 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1800 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PEAK

SENSITIVITY (DB, 1W @ 1M):
109 dB, 1W @ 1m

WOOFER:
8'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
95 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Amphenol eco/mat IP 67
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey

HARDWARE:
4 x M8 + U-bracket and pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
493 mm / 19.41 inches

DEPTH:
250 mm / 9.84 inches

HEIGHT:
266 mm / 10.47 inches

WEIGHT:
10.6 kg / 23.37 lbs
Shipping informations
PACKAGE WEIGHT:
11.5 kg / 25.35 lbs

PACKAGE DEPTH:
415 mm / 16.34 inches

PACKAGE WIDTH:
660 mm / 25.98 inches

PACKAGE HEIGHT:
415 mm / 16.34 inches
