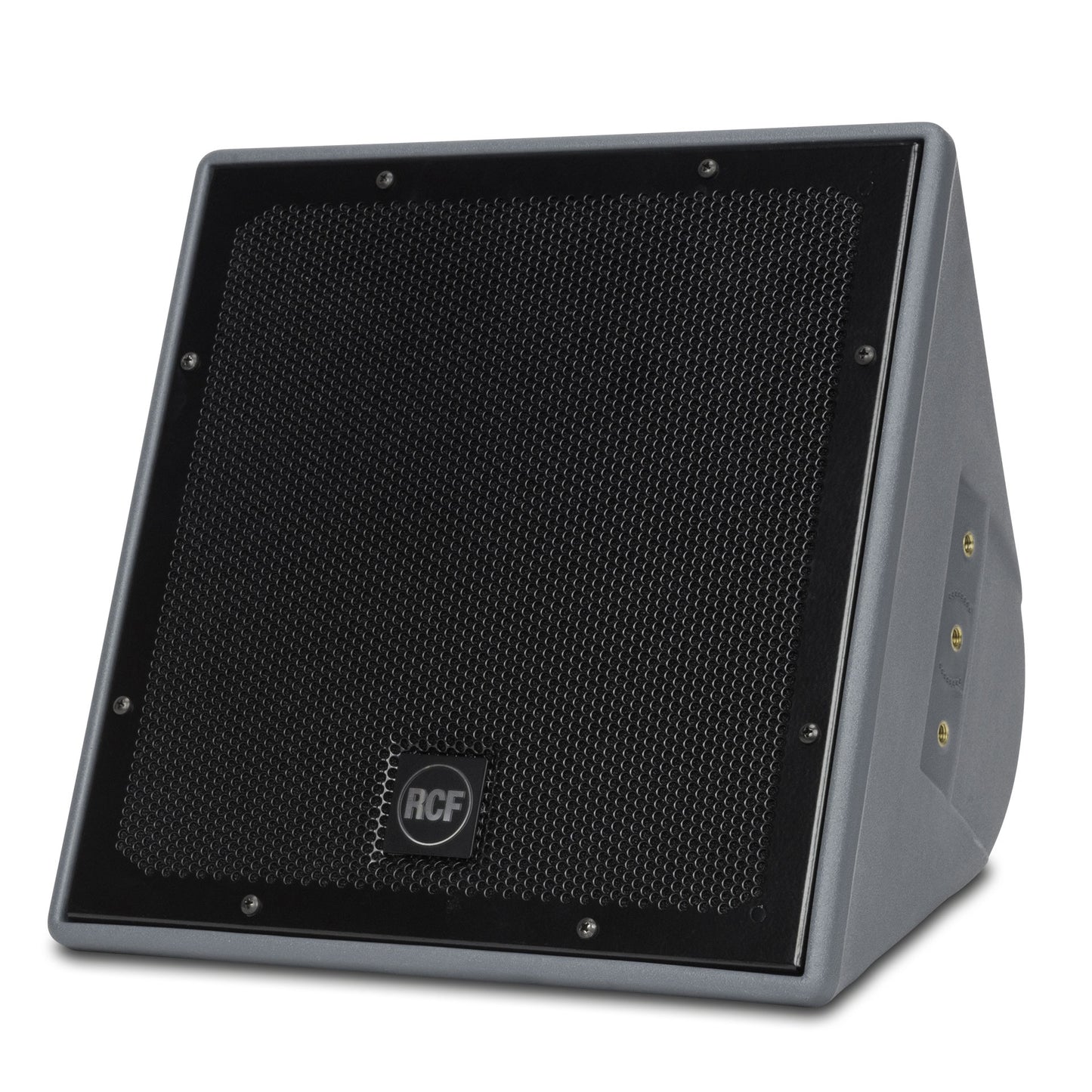

RCF P3115-T Passive 15" 2-way Outdoor Weatherproof Speaker (16 ohm/70V, IP55)

SKU: P3115-T
Regular price $1,399.00 inc. VAT
Regular price -21% $1,779.00 Sale price $1,399.00 inc. VAT
P 3115T
WEATHERPROOF COAXIAL TWO-WAY SPEAKER
  • 129 DB SPL MAX, 300W RMS
  • WEATHERPROOF IP55 CABINET WITH UV PROTECTION
  • LINE TRANSFORMER
  • 90° X 60° CMD CONSTANT DIRECTIVITY HORN
  • 129 dB SPL Max, 300W RMS
  • Weatherproof IP55 cabinet with UV protection
  • Line Transformer
  • 90° x 60° CMD constant directivity horn
  • 15" high-output LF transducer with 3" voice coil
  • RCF Precision 1.3" C. Driver with 2.5" voice coil
  • 12 brass suspension points (M10)
  • Rotomoulded cabinet available in white or black
The P 3115T is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” woofer with a 3” voice coil. The high-frequency section combines a 1.3” RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. The P3115-T features a selectable line transformer for 70 - 100 volt applications, built-in LICC crossover, and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and a durable and corrosion-resistant 316P stainless steel U-Bracket with spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
75 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
13

SYSTEM SENSITIVITY:
98 dB
Power section
NOMINAL IMPEDANCE (OHM):
16 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1300 Hz
Transducers
COMPRESSION DRIVER:
1.0'', 1.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
25 W AES, 50 W PEAK

SENSITIVITY (DB, 1W @ 1M):
108 dB, 1W @ 1m

WOOFER:
Coaxial 15'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
250 W AES, 500 W PEAK

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Neoprene Cable

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
120 W - 83 ohm

POWER SELECTION 2 (100 V):
60 W - 167 ohm

POWER SELECTION 3 (100 V):
30 W - 333 ohm
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey

HARDWARE:
12 x M10 inserts + U-brackets and pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
463 mm / 18.23 inches

DEPTH:
433 mm / 17.05 inches

HEIGHT:
463 mm / 18.23 inches

WEIGHT:
18.4 kg / 40.57 lbs
Shipping informations
PACKAGE WEIGHT:
23.2 kg / 51.15 lbs

PACKAGE DEPTH:
490 mm / 19.29 inches

PACKAGE WIDTH:
490 mm / 19.29 inches

PACKAGE HEIGHT:
530 mm / 20.87 inches
