RCF P4228 Passive Dual 8" 2-way Outdoor Weatherproof Speaker (8 ohm, IP55)

SKU: P4228
$1,599.00 inc. VAT
-20% $1,999.00 $1,599.00 inc. VAT
P 4228
WEATHERPROOF TWO-WAY SPEAKER
  • 129 DB MAX SPL, 400W RMS
  • WEATHERPROOF CABINET IP55 WITH UV PROTECTION
  • ROTOMOULDED CABINET AVAILABLE IN WHITE OR BLACK
  • 110° X 60° CONSTANT DIRECTIVITY HORN
  • 129 dB Max SPL, 400W RMS
  • Weatherproof cabinet IP55 with UV protection
  • 110° x 60° constant directivity horn
  • Rotomoulded cabinet available in white or black
  • Built-in passive LICC crossover with AMCDP protection
  • 2 x 8" woofer with 2.5" voice coil
  • 1 x 2.5" voice coil RCF Precision neodymium compression driver
  • Amphenol IP67 4 pole input connector

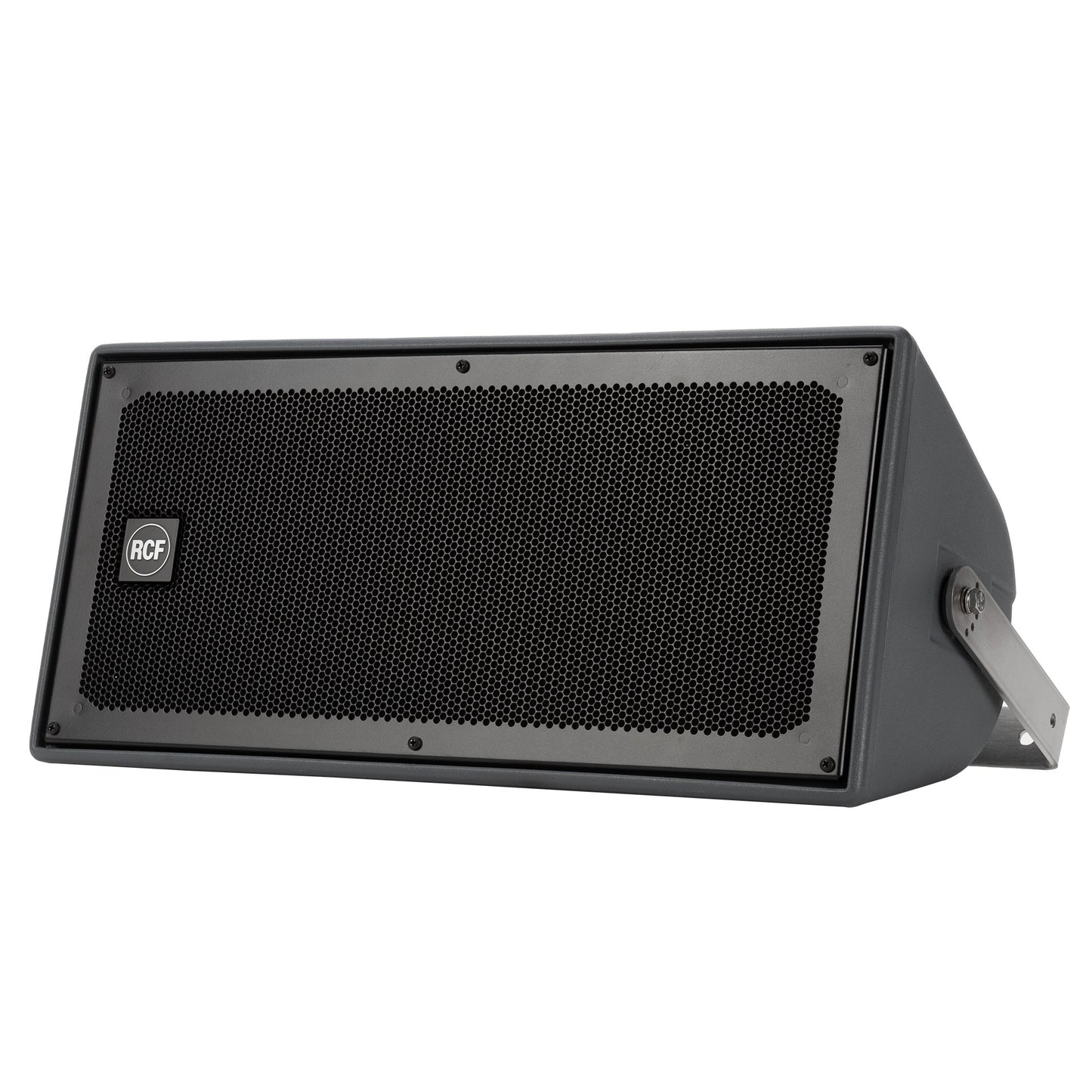

The P 4228 is a weatherproof full range, two-way speaker, suitable for a variety of professional indoor or outdoor applications. The speaker can be installed individually or coupled in array configurations. The high-frequency section includes two constant directivity CMD horns, each loaded with a 1.4" RCF Precision neodymium compression driver with a 2.5" diaphragm assembly for smooth, highly controlled coverage. The low-frequency section combines two 8" woofers with a 2.5" voice coil. The symmetrical arrangement of the transducers delivers a controlled horizontal dispersion. Internal circuitry provides LICC crossover and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP 55 standard requirements, equipped with M8 brass inserts (4x) and one corrosion-resistant 316P stainless steel U-bracket. Connections to the amplifier are made through a watertight multi-pole connector. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
80 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
110°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
9

SYSTEM SENSITIVITY:
97 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
400 W RMS

PEAK POWER HANDLING:
1600 W PEAK

RECOMMENDED AMPLIFIER:
800 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1100 Hz
Transducers
COMPRESSION DRIVER:
1 x 1.4'' neo, 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
90 W AES, 180 W PEAK

SENSITIVITY (DB, 1W @ 1M):
110 dB, 1W @ 1m

WOOFER:
2 x 8'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
16 ohm

INPUT POWER RATING:
300 W AES, 600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
95 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Amphenol eco/mat IP 67
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Grey, White - RAL 9003

HARDWARE:
4 x M8 + U-bracket and pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
566 mm / 22.28 inches

DEPTH:
250 mm / 9.84 inches

HEIGHT:
268 mm / 10.55 inches

WEIGHT:
14 kg / 30.86 lbs
Shipping informations
PACKAGE WEIGHT:
15.6 kg / 34.39 lbs

PACKAGE DEPTH:
394 mm / 15.51 inches

PACKAGE WIDTH:
429 mm / 16.89 inches

PACKAGE HEIGHT:
684 mm / 26.93 inches
