RCF

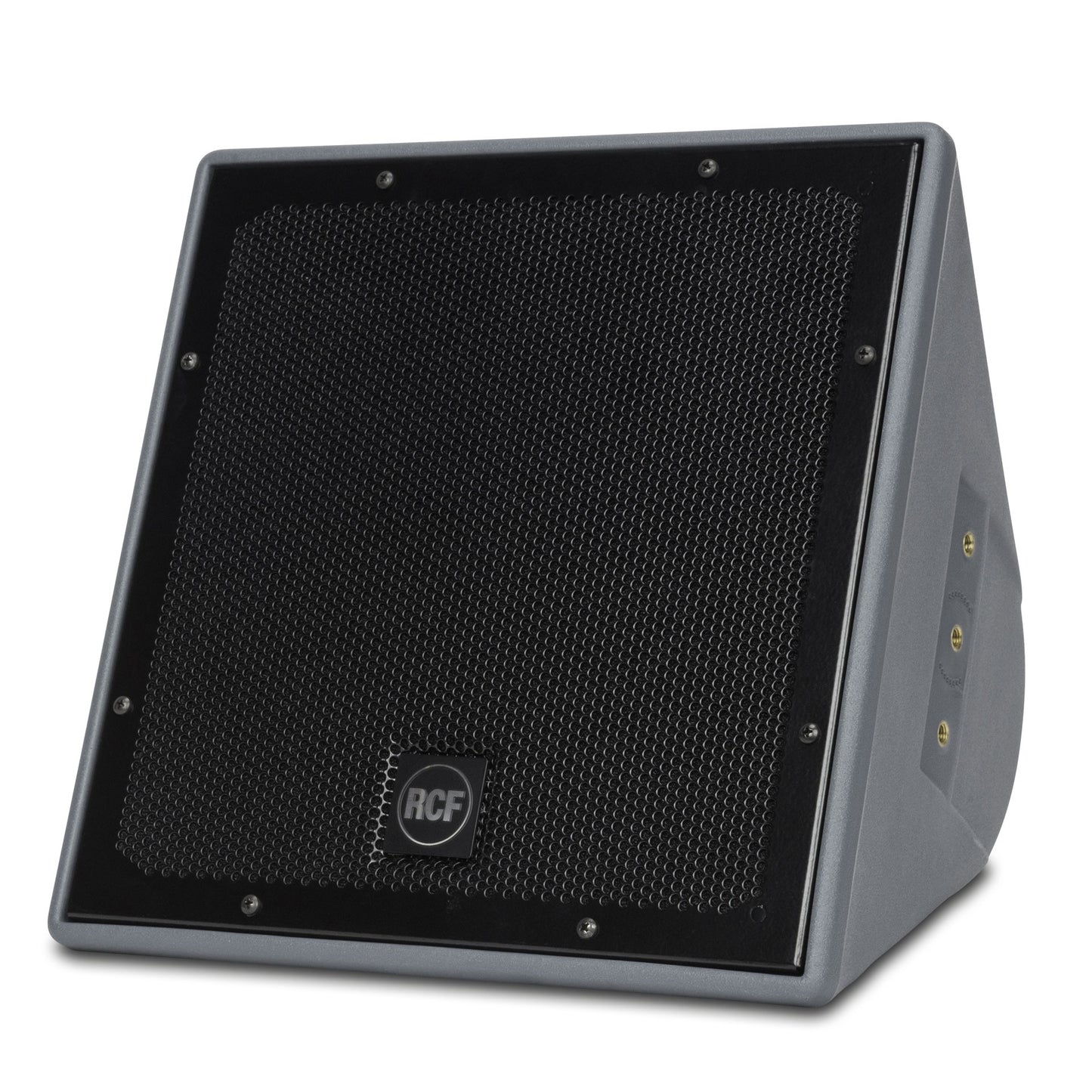

RCF P6215- W Passive 15" 2-way Outdoor Weatherproof Speaker (16 ohm/70V, IP55)

SKU: P6215- W
$1,699.00 inc. VAT
-21% $2,149.00 $1,699.00 inc. VAT
P 6215
WEATHERPROOF COAXIAL TWO-WAY SPEAKER
  • 134 DB SPL MAX, 600W RMS
  • WEATHERPROOF IP55 CABINET WITH UV PROTECTION
  • ROTOMOULDED CABINET AVAILABLE IN WHITE OR BLACK
  • 60° X 60° CONICAL CMD HORN
  • 134 dB SPL Max, 600W RMS
  • Weatherproof IP55 cabinet with UV protection
  • Rotomoulded cabinet available in white or black
  • 60° x 60° conical CMD horn
  • One 15" high-output neodymium LF transducer
  • One RCF Precision 2.5" neodymium C. Driver
  • Active Mosfet Compression Driver Protection
  • 12 brass suspension points (M10)
The P 6215 is a weatherproof full range, wide-dispersion, coaxial two-way loudspeaker system for very high output and long-throw applications. The speaker can be installed individually or coupled in array configurations. The low-frequency transducer is a 15” neodymium woofer, the high-frequency section combines a 1.3” neodymium RCF Precision compression driver with a 2.5” diaphragm assembly centrally mounted in the throat of the LF driver and loaded on a constant directivity CMD horn for smooth, wide dispersion. Internal circuit provides low crossover frequency for accurate vocal intelligibility and Active Mosfet Compression Driver Protection (AMCDP). The single-piece roto-molded cabinet is fully UV protected and meets IP-55 standard requirements, equipped with M10 brass inserts (12x), and one durable and corrosion-resistant 316P stainless steel U-Bracket with f spacers (2x) for 90° mounting. The aluminum grille cover is powder coated with water-repellent backing material and has a rotatable logo plate.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
75 Hz ÷ 20000 Hz

MAX SPL @ 1M:
134 dB

HORIZONTAL COVERAGE ANGLE:
60°

VERTICAL COVERAGE ANGLE:
60°

DIRECTIVITY INDEX Q:
13

SYSTEM SENSITIVITY:
100 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
600 W RMS

PEAK POWER HANDLING:
2400 W PEAK

RECOMMENDED AMPLIFIER:
1200 W

PROTECTIONS:
Dynamic active mosfet

CROSSOVER FREQUENCIES:
1100 Hz
Transducers
COMPRESSION DRIVER:
Coaxial 1.3'' neo, 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
90 W AES, 180 W PEAK

SENSITIVITY (DB, 1W @ 1M):
108 dB, 1W @ 1m

WOOFER:
Coaxial 15'' neo, 3.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
450 W AES, 900 W PEAK

SENSITIVITY (DB, 1W @ 1M):
101 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Neoprene Cable
Standard compliance
IP PROTECTION GRADE:
IP 55

CE MARKING:
Yes
Physical specifications
COLOR:
Grey

HARDWARE:
12 x M10 + U-Bracket and Pair of spacers

GRILLE:
Aluminum with waterproof clothing

CABINET/CASE MATERIAL:
PE Low Density
Size
WIDTH:
463 mm / 18.23 inches

DEPTH:
433 mm / 17.05 inches

HEIGHT:
463 mm / 18.23 inches

WEIGHT:
17 kg / 37.48 lbs
Shipping informations
PACKAGE WEIGHT:
21.4 kg / 47.18 lbs

PACKAGE DEPTH:
489 mm / 19.25 inches

PACKAGE WIDTH:
489 mm / 19.25 inches

PACKAGE HEIGHT:
519 mm / 20.43 inches
