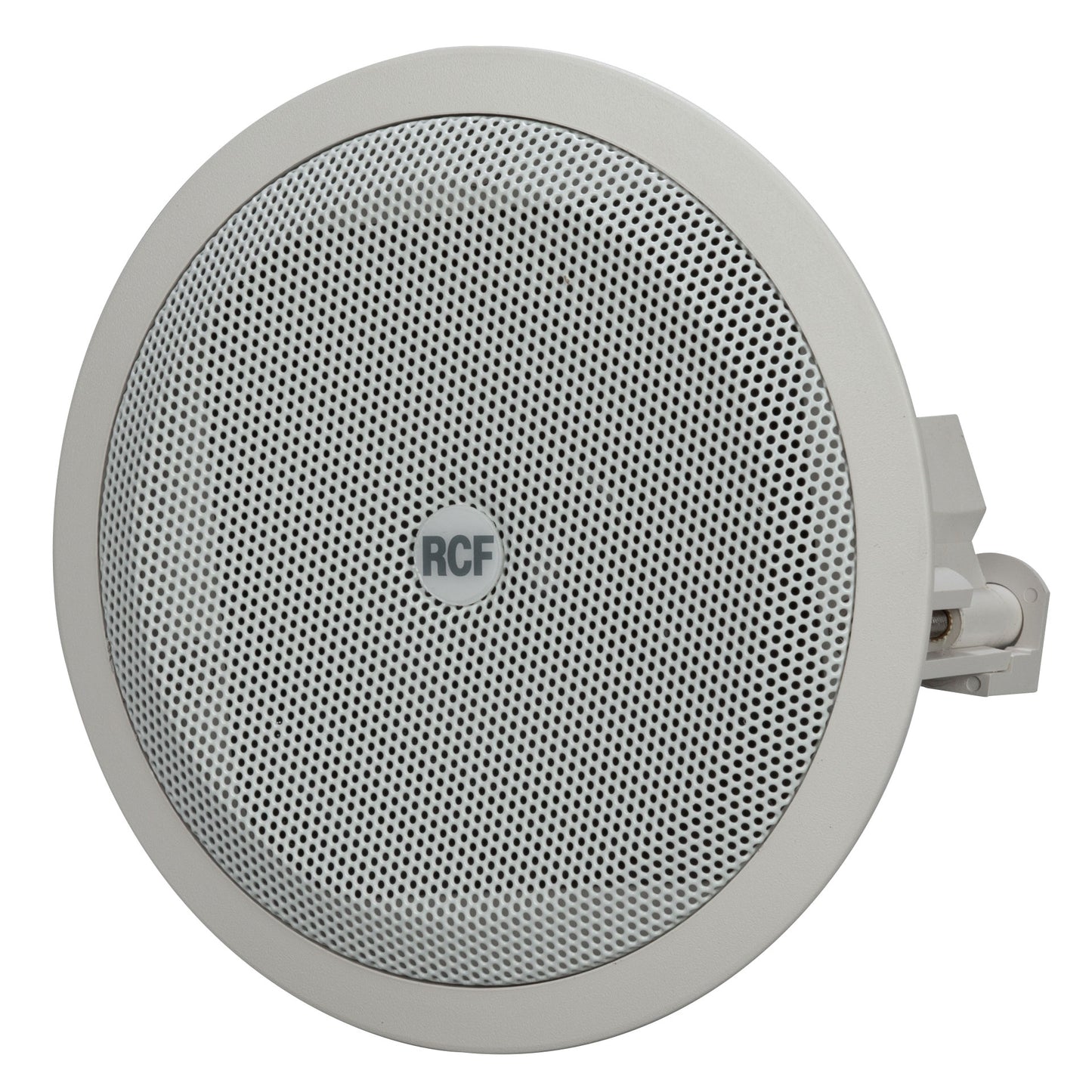

RCF PL40 Passive 3.5" Ceiling Speaker (8 ohm/70V/IP44/Dog Ears)

SKU: PL40
Regular price $49.00 inc. VAT
Regular price -17% $59.00 Sale price $49.00 inc. VAT
PL 40
CEILING SPEAKER
  • 3.5" FULLRANGE TRANSDUCER
  • POWER SELECTABLE (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 DB SENSITIVITY
  • COLOUR WHITE RAL 9003
  • 3.5" fullrange transducer
  • Power selectable (100 V): 8 W – 6 W – 4 W – 2 W
  • 88 dB sensitivity
  • Colour white RAL 9003
  • Plastic frame UL 94 V0, steel grille
PL 40 is a ceiling speakers featuring elegant and innovative design that can be flushmounted in false ceilings or panels. Incorporating a 3.5” fullrange transducer, PL 40 is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
90 Hz ÷ 20000 Hz

MAX SPL @ 1M:
100 dB

COVERAGE ANGLE:
120°

SYSTEM SENSITIVITY:
88 dB
Power section
POWER HANDLING:
8 W RMS

PEAK POWER HANDLING:
32 W PEAK

RECOMMENDED AMPLIFIER:
16 W
Transducers
FULLRANGE:
3.5''
Input/Output section
INPUT CONNECTORS:
Screw Terminals

OUTPUT CONNECTORS:
Screw Terminals

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
8 W - 1250 ohm

POWER SELECTION 2 (100 V):
6 W - 1667 ohm

POWER SELECTION 3 (100 V):
4 W - 2500 ohm

POWER SELECTION 4 (100 V):
2 W - 5000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 44

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003

HARDWARE:
Plastic Material

GRILLE:
Steel

CABINET/CASE MATERIAL:
Plastic
Size
DEPTH:
110 mm / 4.33 inches

RECESSED DEPTH:
103 mm / 4.06 inches

DIAMETER:
130 mm / 5.12 inches

WEIGHT:
0.38 kg / 0.84 lbs

CUT OUT DIAMETER:
122 mm / 4.8 inches
Shipping informations
PACKAGE WEIGHT:
1.2 kg / 2.65 lbs

PACKAGE DEPTH:
175 mm / 6.89 inches

PACKAGE WIDTH:
175 mm / 6.89 inches

PACKAGE HEIGHT:
120 mm / 4.72 inches
