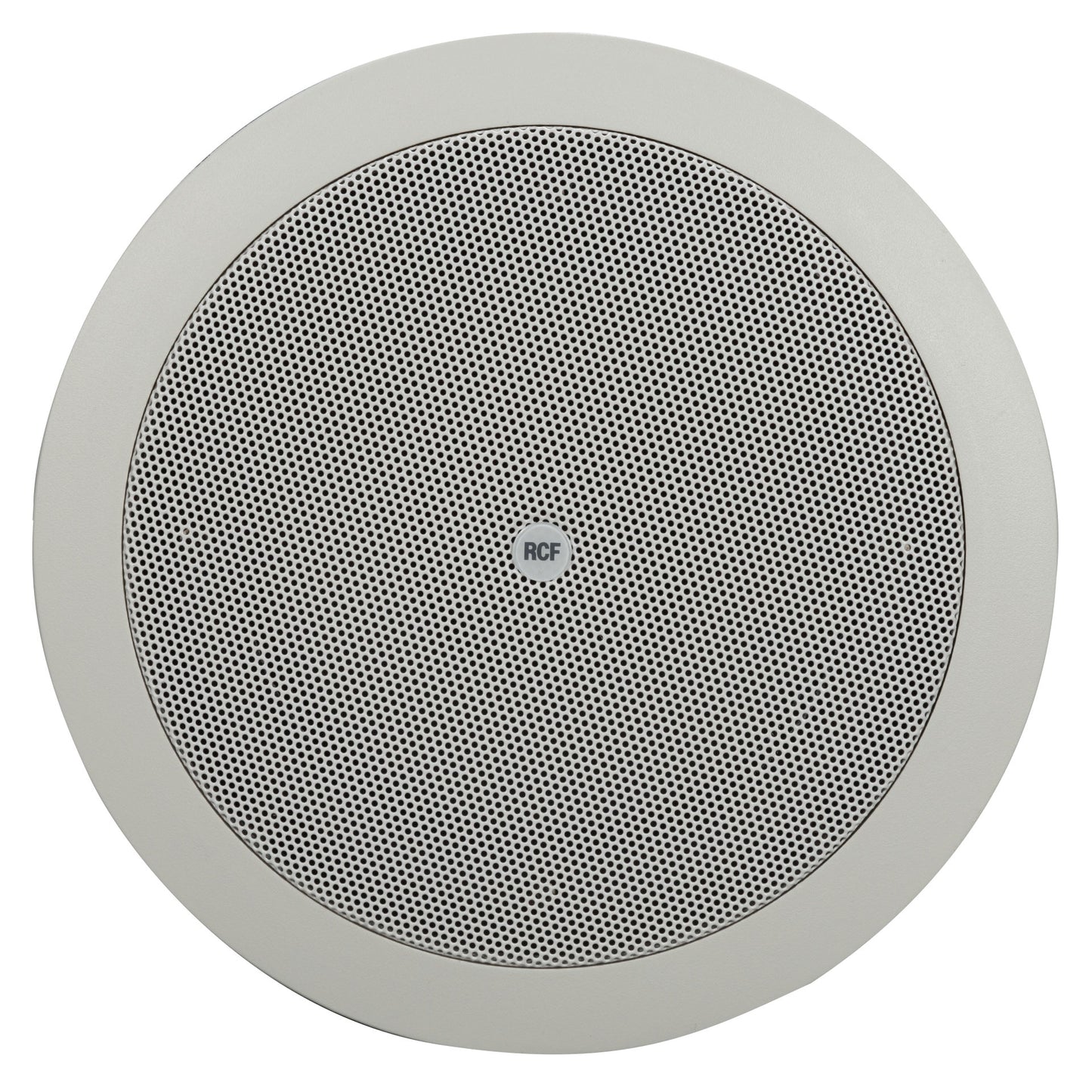

RCF PL60-FD Passive 6" Ceiling Speaker with backcan (8 ohm/70V)

SKU: PL60-FD
$69.00 inc. VAT
-22% $89.00 $69.00 inc. VAT
PL 60FD
CEILING SPEAKER FIRE DOME
  • EXPECIALLY SUITABLE FOR ALARM/EVAC APPLICATIONS
  • 6" DUAL CONE WIDE BAND LOUDSPEAKER
  • SOUND PRESSURE LEVEL AT MUSIC POWER: 105 DB/1 M
  • LOW IMPEDANCE (8?) OR 100V
  • Expecially suitable for alarm/evac applications
  • 6" dual cone wide band loudspeaker
  • Sound pressure level at music power: 105 dB/1 m
  • Low impedance (8?) or 100V
  • Built-in multi-tapped transformer for 100/70V constant voltage connection
  • Metal back cover, RAL 3020 red
  • Ceramic termination blocks, thermal fuse, fi re resistant cable
The PL 60FD ceiling speaker can insulate itself from the line in case of fire. Thanks to its ceramic termination blocks (capable of withstanding temperatures in excess of 650° C/202 °F), its thermal fuse ( threshold: 150 °C/ 302 °F) and its fire-resistant cable, the speaker does not allow fire to move to the audio system. It is ideal for the reproduction of announcements and background music and features a 4 position manual switch) to select the speaker power.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
150 Hz ÷ 15000 Hz

MAX SPL @ 1M:
105 dB

MAX SPL @ 4M:
93 dB

HORIZONTAL COVERAGE ANGLE:
150°

VERTICAL COVERAGE ANGLE:
150°

SYSTEM SENSITIVITY:
94 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
5 W RMS

PEAK POWER HANDLING:
20 W PEAK

RECOMMENDED AMPLIFIER:
10 W
Transducers
FULLRANGE:
6.0''
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals

OUTPUT CONNECTORS:
Ceramic screw terminals

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
6 W - 1667 ohm

POWER SELECTION 2 (100 V):
3 W - 3333 ohm
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003

HARDWARE:
Metal back cover

GRILLE:
Steel
Size
WIDTH:
230 mm / 9.06 inches

DEPTH:
230 mm / 9.06 inches

HEIGHT:
150 mm / 5.91 inches

WEIGHT:
1.49 kg / 3.28 lbs
Shipping informations
PACKAGE WEIGHT:
2.12 kg / 4.67 lbs

PACKAGE DEPTH:
260 mm / 10.24 inches

PACKAGE WIDTH:
260 mm / 10.24 inches

PACKAGE HEIGHT:
170 mm / 6.69 inches
