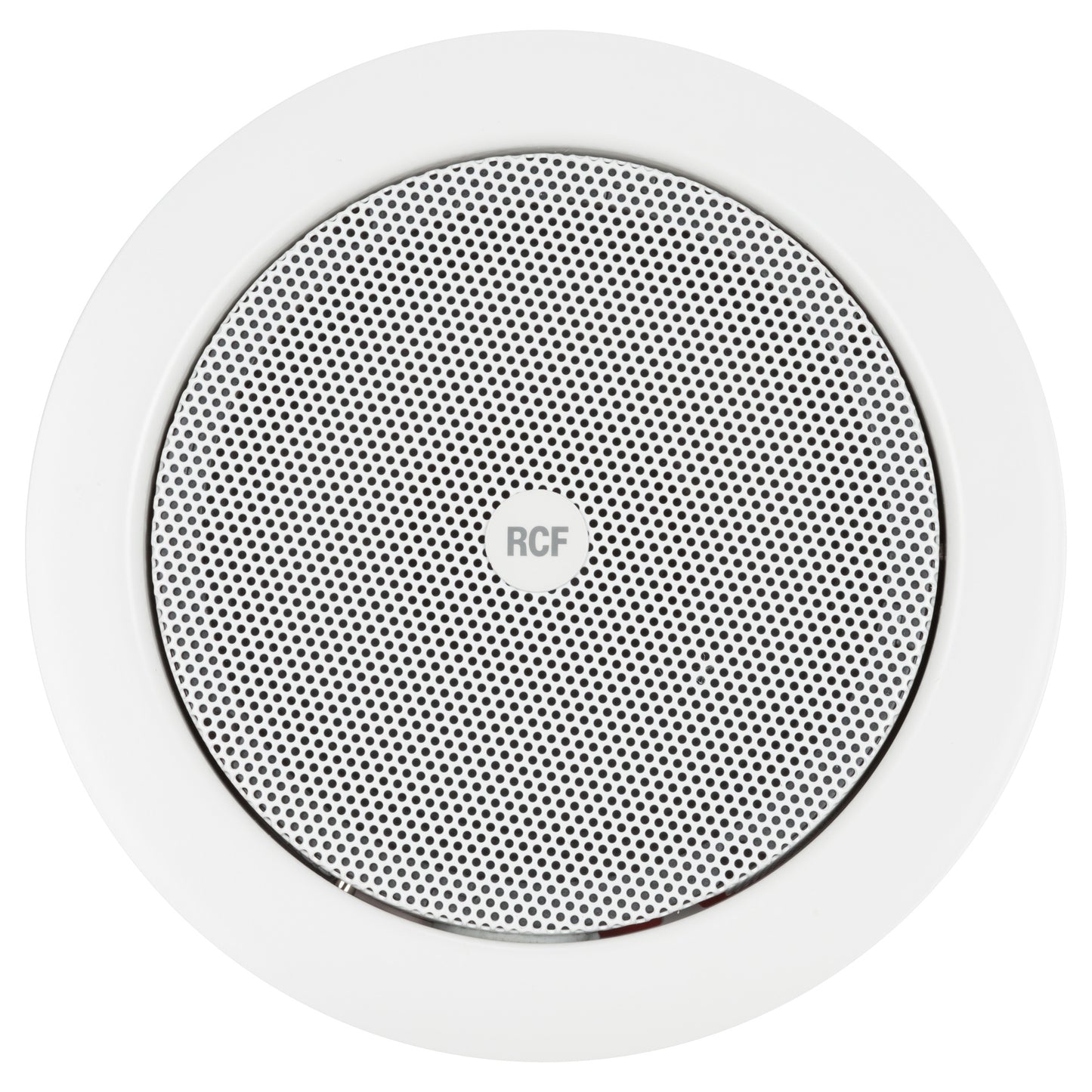

RCF PL68-EN Passive 6" Coaxial Ceiling Speaker (8 ohm/70V/Dog Ears)

SKU: PL68-EN
$99.00 inc. VAT
-17% $119.00 $99.00 inc. VAT
PL 68EN
CEILING SPEAKER WITH FIRE DOME
  • 6" FULLRANGE TRANSDUCER.
  • POWER SELECTABLE (100 V): 6 W – 3 W – 1.5 W.
  • 94 DB SENSITIVITY.
  • COLOUR WHITE RAL 9003.
  • 6" fullrange transducer.
  • Power selectable (100 V): 6 W – 3 W – 1.5 W.
  • 94 dB sensitivity.
  • Colour white RAL 9003.
  • Steel frame, grille and back can.
  • In/out ceramic terminal block.
  • Thermal fuse protection.
PL 68EN is a ceiling speaker featuring a flameproof steel back can, designed for recess installation into ceilings or panels. It is especially suitable for broadcasting alarm messages thanks to the highly intelligible sound reproduction and its resistance to high temperatures reached during fires. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Ground screw available (if needed). Cables inside speaker made using flameproof leads.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
230 Hz ÷ 20000 Hz

MAX SPL @ 1M:
102 dB

MAX SPL @ 4M:
90 dB

COVERAGE ANGLE:
126°

SYSTEM SENSITIVITY:
94 dB

SYSTEM SENSITIVITY 1W @ 4M:
82 dB
Power section
POWER HANDLING:
6 W RMS

PEAK POWER HANDLING:
24 W PEAK

RECOMMENDED AMPLIFIER:
12 W

PROTECTIONS:
Thermal fuse
Transducers
FULLRANGE:
6.0''
Input/Output section
INPUT CONNECTORS:
Ceramic screw terminals

OUTPUT CONNECTORS:
Ceramic screw terminals

CONSTANT VOLTAGE TRANSFORMER:
100 V

POWER SELECTION 1 (100 V):
6 W - 1667 ohm

POWER SELECTION 2 (100 V):
3 W - 3333 ohm

POWER SELECTION 3 (100 V):
1.5 W - 6667 ohm
Standard compliance
CPR NUMBER:
1488-CPR-0486/W

EN54-24 CERTIFIED:
Yes

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003

HARDWARE:
Steel back cover

GRILLE:
Steel

CABINET/CASE MATERIAL:
Metal
Size
RECESSED DEPTH:
90 mm / 3.54 inches

DIAMETER:
220 mm / 8.66 inches

HEIGHT:
91 mm / 3.58 inches

WEIGHT:
1.12 kg / 2.47 lbs

CUT OUT DIAMETER:
200 mm / 7.87 inches
Shipping informations
PACKAGE WEIGHT:
1.6 kg / 3.53 lbs

PACKAGE DEPTH:
230 mm / 9.06 inches

PACKAGE WIDTH:
230 mm / 9.06 inches

PACKAGE HEIGHT:
120 mm / 4.72 inches
