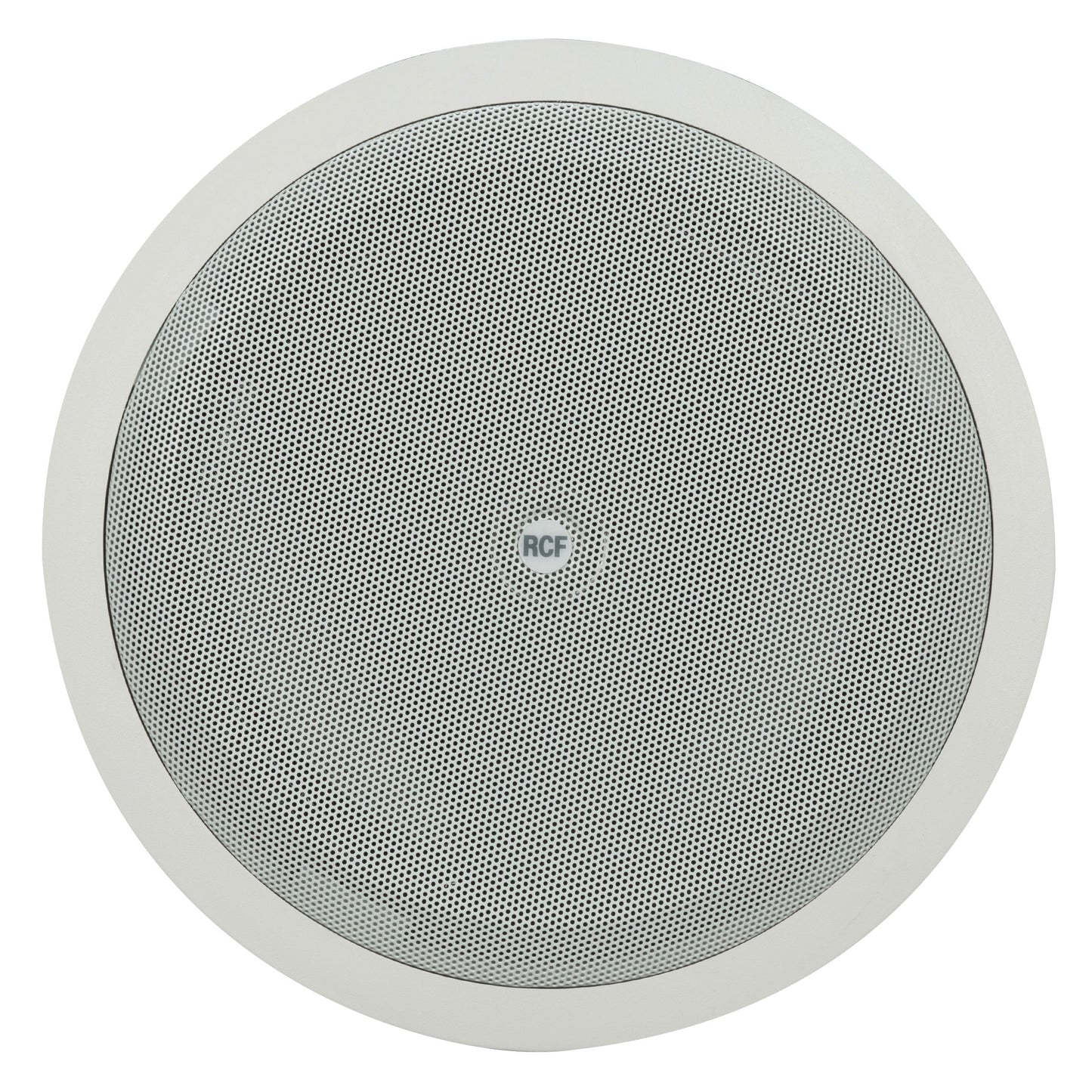

RCF PL8X Passive 8" Coaxial Ceiling Speaker (8 ohm/70V/Dog Ears)

SKU: PL8X
$79.00 inc. VAT
-25% $105.00 $79.00 inc. VAT
PL 8X
COAXIAL CEILING SPEAKER
  • WOOFER DA 6" CON TWEETER DA 1"
  • POWER SELECTABLE (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 DB SENSITIVITY
  • COLOUR WHITE RAL 9003 AND BLACK RAL 9005
  • Woofer da 6" con tweeter da 1"
  • Power selectable (70 V / 100 V): 20 W – 10 W – 5 W – 2.5 W
  • 93 dB sensitivity
  • Colour white RAL 9003 and black RAL 9005
  • Plastic frame UL 94 V0, steel grille
PL 8X is a ceiling speakers featuring elegant and innovative design that can be flush-mounted in false ceilings or panels. Incorporating a 8” coaxial woofer with a 1” tweeter placed on a bridge support. PL 8X is equipped with a line transformer that enables direct connection to constant voltage systems at 70 V or 100 V. The multiple sockets on the transformer make possible to select the output power from among several values. Installation is quick and easy thanks to a special three-hook system that avoids the need for using screws and pallet or other attachment elements.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
60 Hz ÷ 20000 Hz

MAX SPL @ 1M:
109 dB

COVERAGE ANGLE:
80°

SYSTEM SENSITIVITY:
93 dB
Power section
POWER HANDLING:
20 W RMS

PEAK POWER HANDLING:
80 W PEAK

RECOMMENDED AMPLIFIER:
40 W
Transducers
DOME TWEETER:
1.0''

WOOFER:
8''
Input/Output section
INPUT CONNECTORS:
Screw Terminals

OUTPUT CONNECTORS:
Screw Terminals

CONSTANT VOLTAGE TRANSFORMER:
70/100 V

POWER SELECTION 1 (100 V):
20 W - 500 ohm

POWER SELECTION 2 (100 V):
10 W - 1000 ohm

POWER SELECTION 3 (100 V):
5 W - 2000 ohm

POWER SELECTION 4 (100 V):
2.5 W - 4000 ohm
Standard compliance
IP PROTECTION GRADE:
IP 44

CE MARKING:
Yes
Physical specifications
COLOR:
White - RAL 9003, Black - RAL 9005

HARDWARE:
Plastic Material

GRILLE:
Aluminium

CABINET/CASE MATERIAL:
Plastic
Size
DEPTH:
88 mm / 3.46 inches

RECESSED DEPTH:
80 mm / 3.15 inches

DIAMETER:
247 mm / 9.72 inches

WEIGHT:
1.23 kg / 2.71 lbs

CUT OUT DIAMETER:
224 mm / 8.82 inches
Shipping informations
PACKAGE WEIGHT:
2.09 kg / 4.61 lbs

PACKAGE DEPTH:
130 mm / 5.12 inches

PACKAGE WIDTH:
280 mm / 11.02 inches

PACKAGE HEIGHT:
280 mm / 11.02 inches
