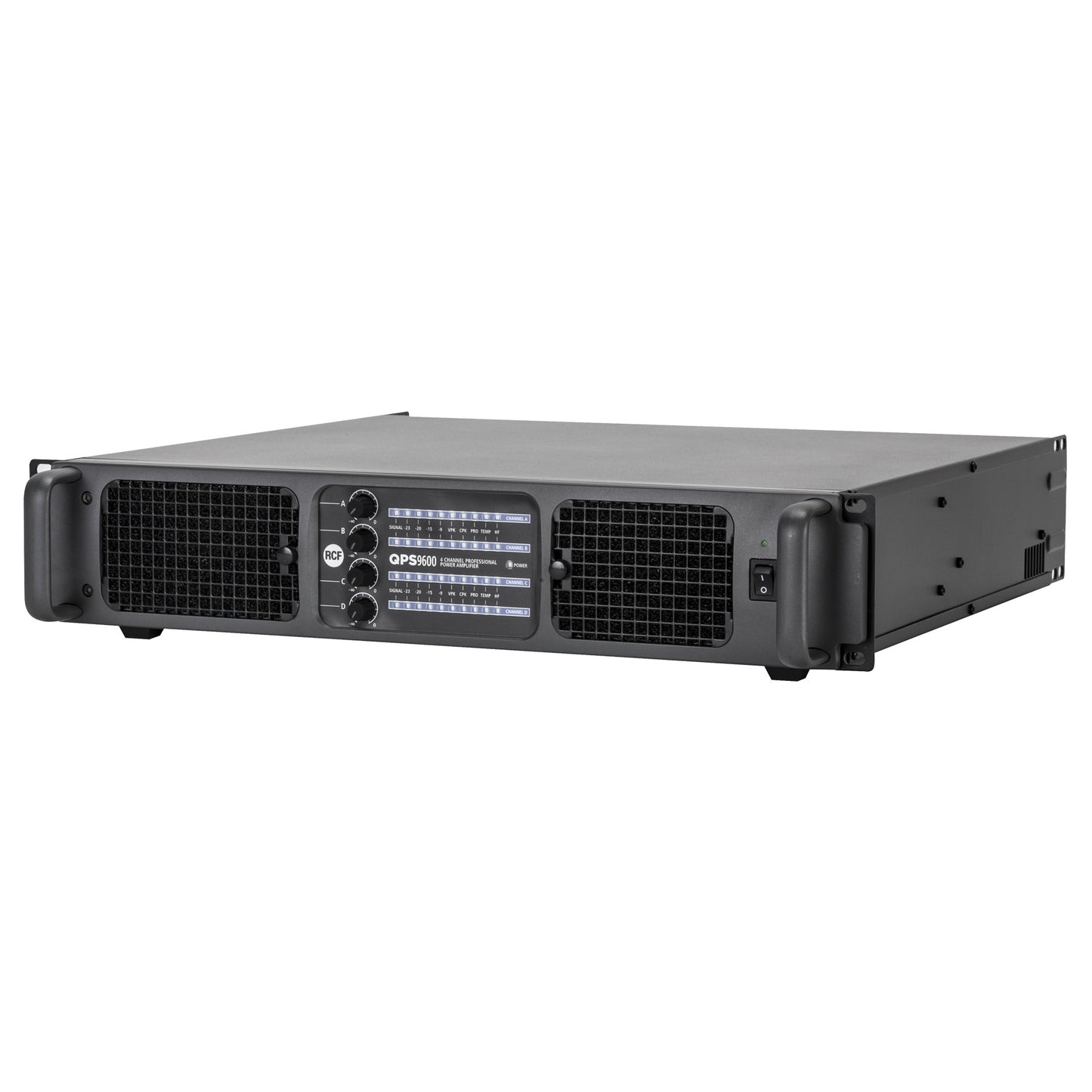

RCF QPS-9600 4 Channel HD Power Amplifier

SKU: QPS-9600
$3,499.00 inc. VAT
-13% $3,999.00 $3,499.00 inc. VAT
QPS 9600
HIGH POWER AMPLIFIER
  • FAST RESPONSE AND LOW DISTORTION
  • EASY TO CONFIGURE IN STEREO / MONO / BRIDGE MODES
  • EXTENSIVE PROTECTIVE CIRCUITS ENSURE HIGH RELIABILITY AND OPERATING SAFETY
  • FRONT PANEL SIGNAL / CLIPPINGS / PROTECTION/ TEMPERATURE LEDS INDICATORS
  • Fast response and low distortion
  • Easy to configure in stereo / mono / bridge modes
  • Extensive protective circuits ensure high reliability and operating safety
  • Front panel signal / clippings / protection/ temperature LEDs indicators
  • Minimum load impedance (stereo / mono): 2 Ohm
  • XLR input connectors
  • SPEAKON NL4 output connectors
  • Voltage clip switchable limiters
QPS 9600 is a 4 channel power amplifier that can handle exceptionally high power in a compact and lightweight 2 rack units space. Thanks to the class HD technology, this amplifier delivers up to 4 x 2400 W RMS @ 2 Ohm (4800 W RMS bridged @ 4 Ohm), weighting just 16 kg. It comes with switched mode power supply which ensures that a predominantly resistive load is presented to the mains power supply; this also leads to an improved amplifier performance at high output levels. Thanks to its high efficiency heat sinks and variable speed DC fans, the QPS 9600 can withstand the hardest heat conditions ensuring great reliability.
SPECIFICATIONS
Amplifier specifications
NUMBER OF CHANNELS:
4

POWER OUTPUT PER CHANNEL (@ 2 OHM):
2400W RMS

POWER OUTPUT PER CHANNEL (@ 4 OHM):
2200 W RMS

POWER OUTPUT PER CHANNEL (@ 8 OHM):
1300 W RMS

POWER OUTPUT (BRIDGED @ 4 OHM):
4800 W RMS

POWER OUTPUT (BRIDGED @ 8 OHM):
4400 W RMS

FREQUENCY RESPONSE (-3DB):
20 Hz ÷ 25 kHz

SIGNAL/NOISE RATE (”A” WEIGHTED):
>110 dB dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.1 %%
Input section
BALANCED:
4

LINE CONNECTORS:
XLR

LINE INPUTS:
4

MONO:
4

TOTAL NUMBER OF INPUTS:
4
Output section
SIGNAL OUTPUT NUMBER:
2

SIGNAL OUTPUT CONNECTORS:
XLR

POWER OUTPUT CONNECTORS:
Speakon
Controls
CONFIGURATION:
DIP switch, Front panel
Protections
COOLING:
Forced

THERMAL:
Yes

DC DELAY:
Yes

FUSES:
Yes

VHF:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz

POWER CONSUMPTION:
1950 W
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

RACK MOUNTING:
19", 2U
Size
DEPTH:
445 mm / 17.52 inches

HEIGHT:
88 mm / 3.46 inches

WEIGHT:
16 kg / 35.27 lbs

WIDTH:
482 mm / 18.98 inches
Shipping informations
PACKAGE DEPTH:
600 mm / 23.62 inches

PACKAGE HEIGHT:
150 mm / 5.91 inches

PACKAGE WEIGHT:
18.5 kg / 40.79 lbs

PACKAGE WIDTH:
580 mm / 22.83 inches
