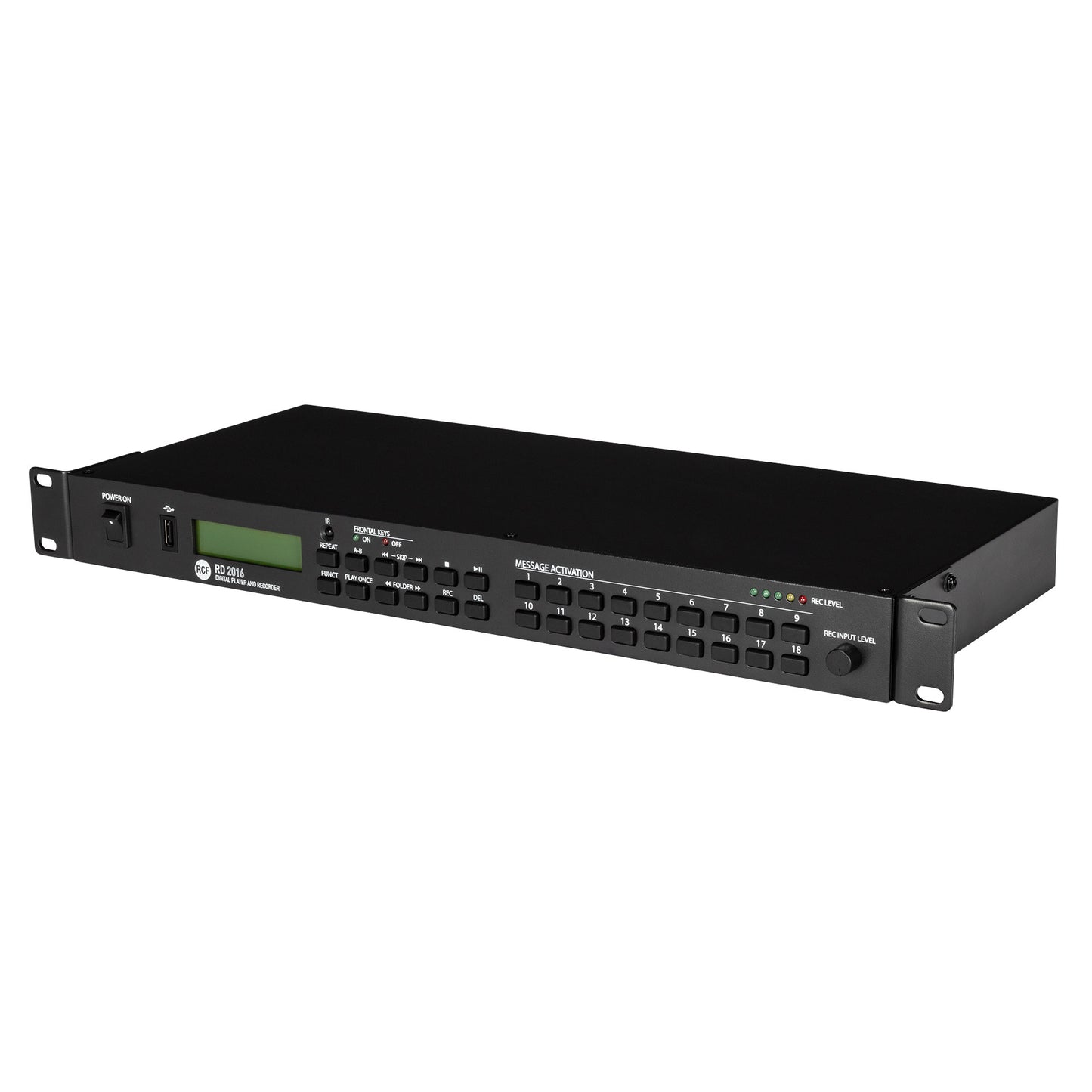

RCF RD-2016 Digital Voice Announcer w/ player-recorder

SKU: RD-2016
$649.00 inc. VAT
-19% $799.00 $649.00 inc. VAT
RD 2016
MP3 PLAYER / RECORDER
  • MP3 STEREO PLAYER/RECORDER
  • SUPPORTS SD CARDS AND USB FLASH DRIVES
  • 32 GB MAXIMUM SUPPORTED MEMORY
  • CAN PLAY/RECORD ONE FILE AT A TIME
  • MP3 stereo player/recorder
  • Supports SD cards and USB flash drives
  • 32 GB Maximum supported memory
  • Can play/record one file at a time
  • A sequence of 64 file can be programmed
  • Fixed MP3 recording format: 192 kbps
  • 1 AUX INPUT with parallel AUX OUTPUT
  • Disabled front buttons
  • IR remote control included
RD 2016 is a MP3 stereo player / recorder on SD cards and USB flash drives, with a maximum memory supported size of 32 GB. The unit can be programmed building up a user defined playing list (up to 64 files). Moreover, the first 7 files can also be triggered by remote commands, and the buttons on the front panel allow to access directly the first 18 files. An auxiliary input and its parallel output could work as priority on the audio signal of another devices when a RD 2016 MP3 file is played. The front panel buttons can be disabled, allowing the device control only via the dedicated remote control (included). SD card not included.
SPECIFICATIONS
Amplifier specifications
SIGNAL/NOISE RATE (”A” WEIGHTED):
>70 dB dB

CROSSTALK (@ 1 KHZ):
<60 dB dB

DISTORTION (THD+N) @ 1 KHZ NOMINAL POWER:
<0.2 %%
Input section
GENERAL PURPOSE INPUTS (GPI):
11

LINE CONNECTORS:
RCA

LINE INPUTS:
2

STEREO:
2

TOTAL NUMBER OF INPUTS:
2

UNBALANCED:
2
Output section
SIGNAL OUTPUT NUMBER:
2

SIGNAL OUTPUT CONNECTORS:
RCA

GENERAL PURPOSE OUTPUTS (GPO):
2
Controls
CONFIGURATION:
Front panel

PRIORITY:
Yes
Protections
COOLING:
Convection
Audio sources
SD CARD:
Yes
Power requirement
OPERATING VOLTAGE:
220-240/115 V~ 50/60HzV ~ Hz
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Metal

COLOR:
Black

RACK MOUNTING:
19", 1U
Size
DEPTH:
185 mm / 7.28 inches

HEIGHT:
44 mm / 1.73 inches

WEIGHT:
2.2 kg / 4.85 lbs

WIDTH:
482 mm / 18.98 inches
Shipping informations
PACKAGE DEPTH:
300 mm / 11.81 inches

PACKAGE HEIGHT:
110 mm / 4.33 inches

PACKAGE WEIGHT:
3.1 kg / 6.83 lbs

PACKAGE WIDTH:
550 mm / 21.65 inches
