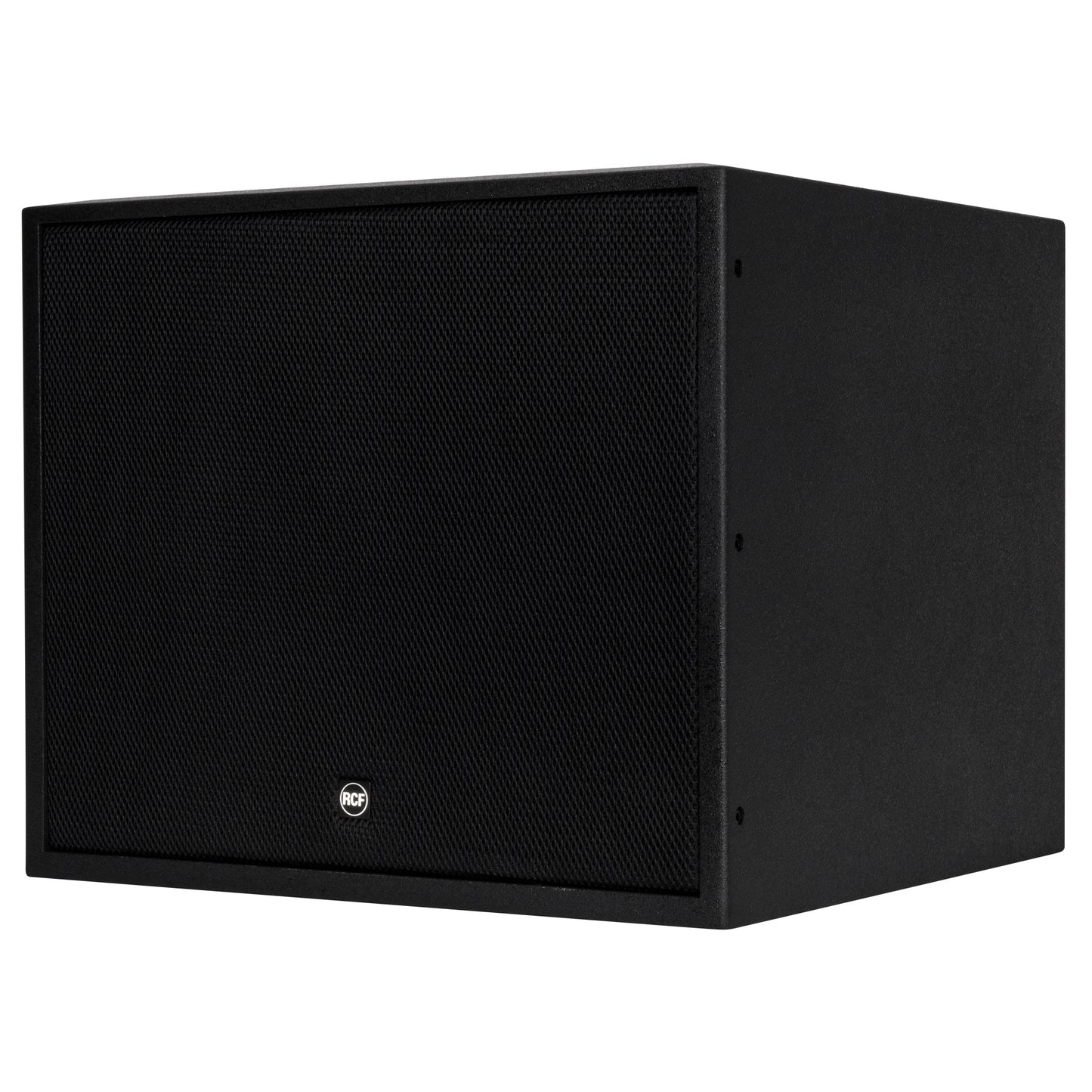

RCF S5012 Passive 12" Bass Reflex Subwoofer

SKU: S5012
$649.00 inc. VAT
-13% $749.00 $649.00 inc. VAT
S 5012
BASS REFLEX SUBWOOFER
  • SYSTEM POWER RATING 300 WATT RMS
  • 12" HIGH-EFFICIENCY 2.5" VOICE-COIL WOOFER
  • 127 DB MAXIMUM SOUND PRESSURE LEVEL
  • M20 STANDARD POLE MOUNT IN TOP SECTION OF CABINET
  • 12" high-efficiency 2.5" voice-coil woofer
  • 127 dB maximum sound pressure level
  • System Power rating 300 Watt RMS
  • M20 standard pole mount in top section of cabinet
  • Recessed Euroblock Input-Output connectors
  • Protective metal grille, polyester fabric coated
  • Integrated recessed hand carry points
The S 5012 is a vented, high output, compact subwoofer system where the physically small size and impact of a 12-inch driver is desired, and works equally well for portable or install situations. Extending the frequency response of these systems to below 40Hz this highly efficient design is capable of providing output levels normally associated with considerably larger enclosures. A system suited to background music playback in applications ranging from clubs, bars and cafes, right through to theatres and AV presentations. The low-frequency transducer is a 12” woofer with a 2,5” voice coil. This new woofer design is the result of the latest refinements in RCF experiences in compact active and passive subwoofer design, resulting in a fast and controlled reproduction of the bass frequency range. It is engineered to complement MEDIA series full-range loudspeakers and is particularly well-suited in high-quality multimedia applications.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
50 Hz ÷ 200 Hz

MAX SPL @ 1M:
127 dB

SYSTEM SENSITIVITY:
96 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
300 W RMS

PEAK POWER HANDLING:
1200 W PEAK

RECOMMENDED AMPLIFIER:
600 W
Transducers
WOOFER:
12'', 2.5'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
300 W AES, 600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
96 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Euroblock

OUTPUT CONNECTORS:
Euroblock
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

POLE MOUNT/CAP:
Yes

GRILLE:
Steel with robust double mesh polyester clothing

CABINET/CASE MATERIAL:
MDF
Size
WIDTH:
450 mm / 17.72 inches

DEPTH:
420 mm / 16.54 inches

HEIGHT:
380 mm / 14.96 inches

WEIGHT:
18 kg / 39.68 lbs
Shipping informations
PACKAGE WEIGHT:
20.6 kg / 45.42 lbs

PACKAGE DEPTH:
520 mm / 20.47 inches

PACKAGE WIDTH:
550 mm / 21.65 inches

PACKAGE HEIGHT:
480 mm / 18.9 inches
