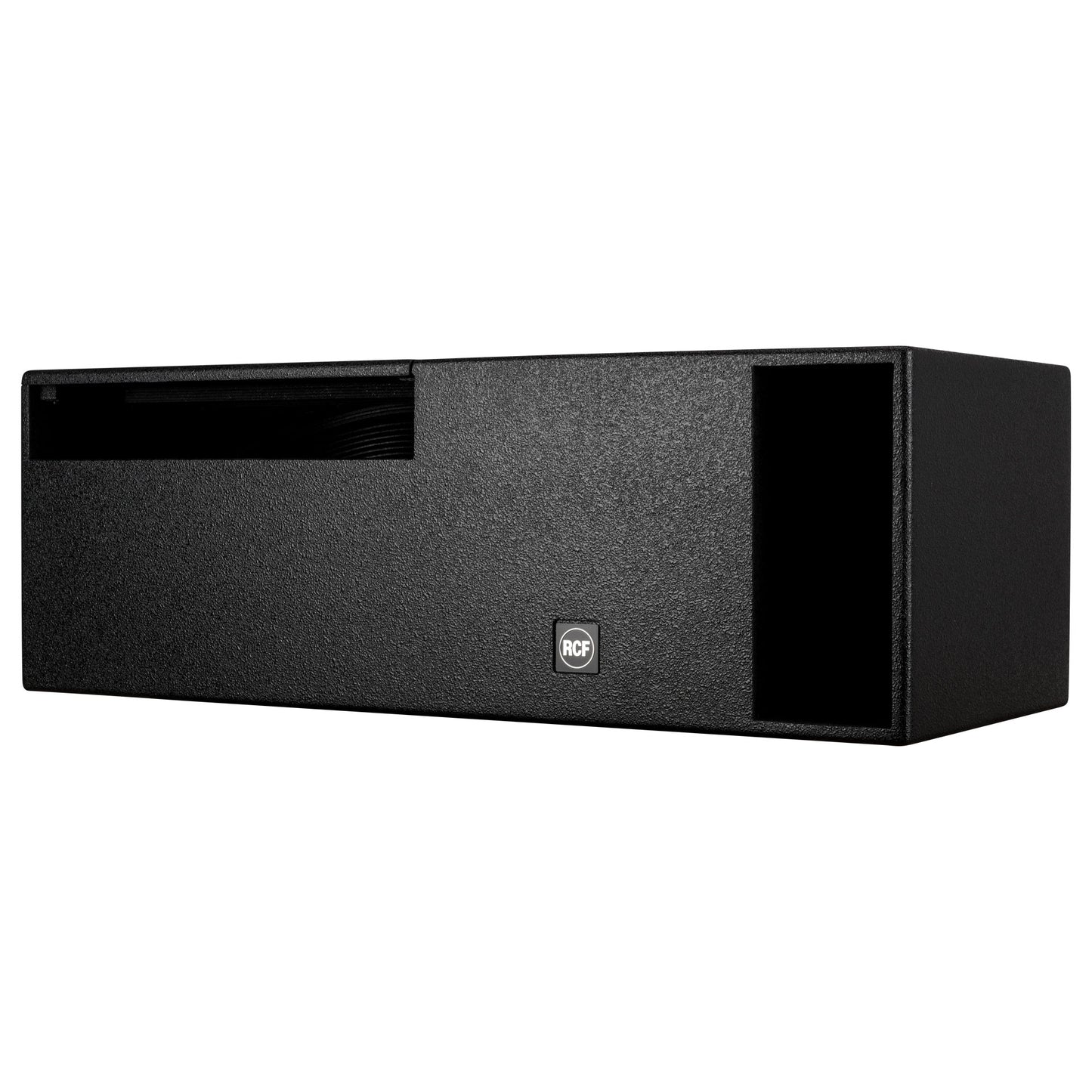

RCF S8015-LP Passive 15" Low Profile Subwoofer

SKU: S8015-LP
Regular price $1,599.00
Regular price -23% $2,089.00 Sale price $1,599.00
S 8015LP
BANDPASS SUBWOOFER
  • 15" HIGH-EFFICIENCY RCF PRECISION 4" VOICE-COIL WOOFER WITH INSIDE/OUTSIDE COIL TECHNOLOGY
  • BANDPASS WOOFER
  • 135 DB MAX SPL
  • RESPONSE DOWN TO 43 HZ
  • 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
  • Bandpass woofer
  • 135 dB Max SPL
  • Response down to 43 Hz
  • Rectangular box enclosure
  • Baltic Birch cabinet finished in a very resistant, textured black paint with rubber feet
The S8015 LP is an extremely compact, high output, band-pass subwoofer able to deliver tight and fast controlled bass response. The new high power high sensitivity 15" woofer is the result of the latest RCF experience in sub-bass transducers and compact subwoofer design and manufacturing. The band-pass configuration offers a significant acoustic impact resulting in a fast and controlled reproduction of the bass frequency range. It is capable of a power of 1 kW RMS and able to deliver a MAX SPL in excess of 135 dB. The cabinet's shape is unobtrusive rectangular low profile to be used under sofa or under limited height stages; the cabinet is constructed of Baltic Birch plywood and finished in a very resistant, textured black paint. Rubber feet are also installed.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
43 Hz ÷ 250 Hz

MAX SPL @ 1M:
135 dB

SYSTEM SENSITIVITY:
99 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
800 W RMS

PEAK POWER HANDLING:
3200 W PEAK

RECOMMENDED AMPLIFIER:
1600 W
Transducers
WOOFER:
15'', 4.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
800 W AES, 1600 W PEAK

SENSITIVITY (DB, 1W @ 1M):
97 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
900 mm / 35.43 inches

DEPTH:
380 mm / 14.96 inches

HEIGHT:
310 mm / 12.2 inches

WEIGHT:
25.2 kg / 55.56 lbs
Shipping informations
PACKAGE WEIGHT:
29 kg / 63.93 lbs

PACKAGE DEPTH:
305 mm / 12.01 inches

PACKAGE WIDTH:
900 mm / 35.43 inches

PACKAGE HEIGHT:
380 mm / 14.96 inches
