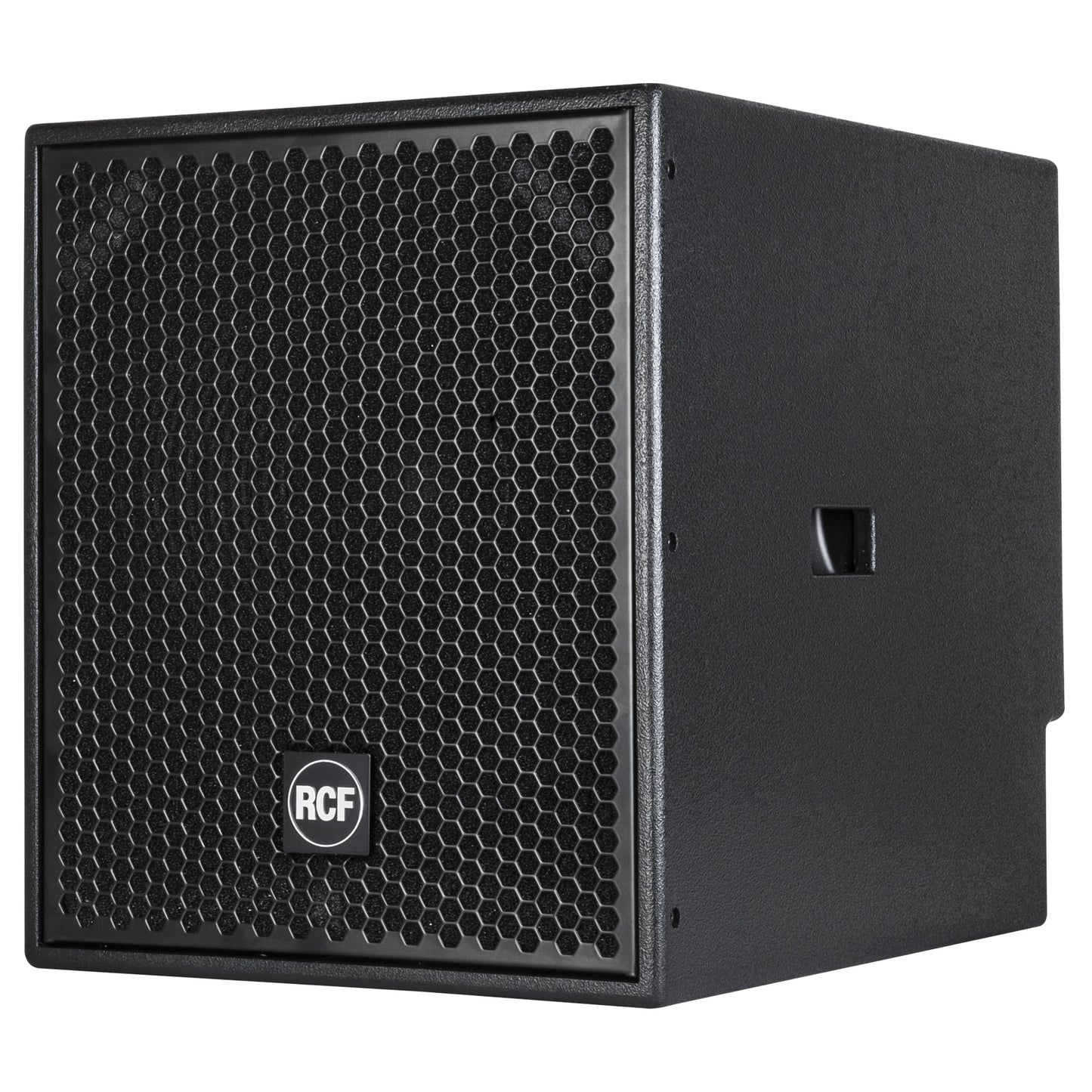

RCF S8015-MK2 Passive 15" Bass Reflex Subwoofer

SKU: S8015-MK2
$1,499.00 inc. VAT
-23% $1,939.00 $1,499.00 inc. VAT
S 8015 II
HIGH-EFFICIENCY SUBWOOFER
  • 15" HIGH-EFFICIENCY RCF PRECISION 4" VOICE-COIL WOOFER WITH INSIDE/OUTSIDE COIL TECHNOLOGY
  • 133 DB MAXIMUM SOUND PRESSURE LEVEL
  • RESPONSE DOWN TO 35 HZ
  • 35 MM STANDARD POLE MOUNT IN TOP SECTION OF CABINET
  • 15" high-efficiency RCF Precision 4" voice-coil woofer with Inside/Outside Coil Technology
  • 133 dB maximum sound pressure level
  • Response down to 35 Hz
  • Rectangular box enclosure with protective metal grille
  • 35 mm standard pole mount in top section of cabinet
  • Baltic Birch cabinet painted with black, heavy duty, textured epoxy
  • Integrated hand carry points
The S8015 II is a compact, high-output, bass reflex subwoofer. The system is equipped with an advanced, hypervented 15” RCF precision woofer. It features massive ceramic magnet and high excursion 4” copper voice coil. The cabinet is designed to achieve tight and maximised output. The system is able to produce a Max SPL of 133 dB and handles 1000 Watts AES. The loudspeaker enclosure shape is rectangular and the cabinet is constructed of multi-ply Baltic birch plywood and finished in a very resistant, textured, polyurethane black paint. It features a M20 polemount receptacle, rubber feet, 2 x recessed handles. The front steel grille is epoxy powder coated.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
35 Hz ÷ 200 Hz

MAX SPL @ 1M:
133 dB

SYSTEM SENSITIVITY:
98 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
1500 W RMS

PEAK POWER HANDLING:
6000 W PEAK

RECOMMENDED AMPLIFIER:
3000 W
Transducers
WOOFER:
15'' neo, 4.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
1500 W AES, 3000 W PEAK

SENSITIVITY (DB, 1W @ 1M):
98 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HANDLES:
Integrated hand carry points

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
440 mm / 17.32 inches

DEPTH:
615 mm / 24.21 inches

HEIGHT:
529 mm / 20.83 inches

WEIGHT:
34 kg / 74.96 lbs
Shipping informations
PACKAGE WEIGHT:
38 kg / 83.78 lbs

PACKAGE DEPTH:
565 mm / 22.24 inches

PACKAGE WIDTH:
805 mm / 31.69 inches

PACKAGE HEIGHT:
675 mm / 26.57 inches
