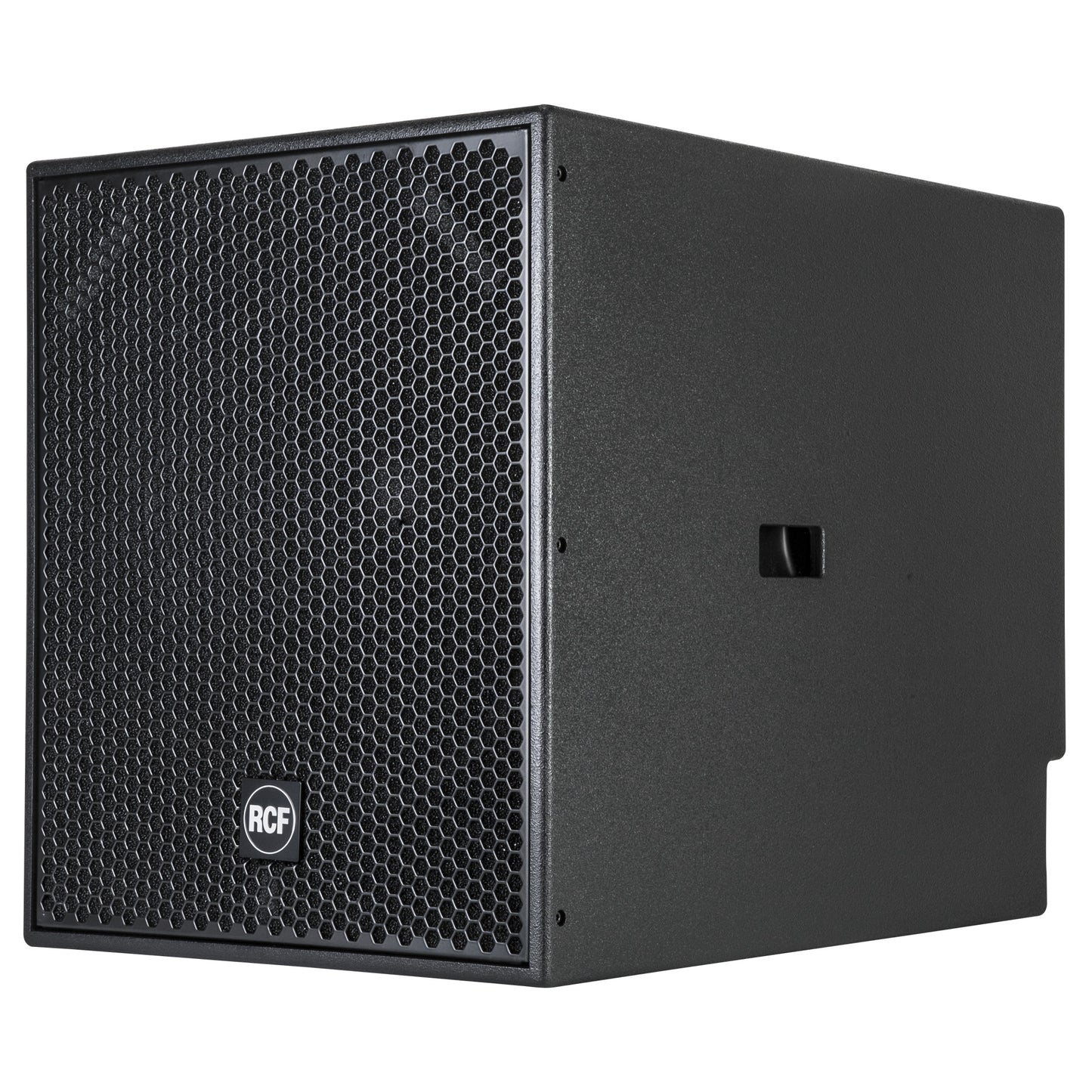

RCF S8018-MK2 Passive 18" Bass Reflex Subwoofer

SKU: S8018-MK2
$1,699.00 inc. VAT
-25% $2,259.00 $1,699.00 inc. VAT

S 8018 II
HIGH-EFFICIENCY SUBWOOFER
  • 18" HIGH-EFFICIENCY 4" VOICE-COIL WOOFER WITH INSIDE/OUTSIDE COIL TECHNOLOGY
  • 137 DB MAXIMUM SOUND PRESSURE LEVEL
  • RESPONSE DOWN TO 30 HZ
  • 35 MM STANDARD POLE MOUNT IN TOP SECTION OF CABINET
  • 18" high-efficiency 4" voice-coil woofer with Inside/Outside Coil Technology
  • 137 dB maximum sound pressure level
  • Response down to 30 Hz
  • Rectangular box enclosure with protective metal grille
  • 35 mm standard pole mount in top section of cabinet
  • Baltic Birch cabinet painted with black, heavy duty, textured epoxy
  • Integrated hand carry points
The S8018 II high-efficiency subwoofer is the ideal low-frequency extension to complement RCF installed systems. The low-frequency transducer is a hypervented vented, high excursion RCF Precision 18” woofer with a 4” inside/outside voice coil to minimize power compression and extend the life of the product. Using bass-reflex loading the subwoofer design ensures an efficient acoustic response down to 30 Hz. The Baltic birch plywood enclosure is painted with black, heavy duty, textured epoxy. The front is protected by a strong powder coated metal grille. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet, integrated hand carry points on the cabinet sides.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
30 Hz ÷ 200 Hz

MAX SPL @ 1M:
137 dB

SYSTEM SENSITIVITY:
100 dB
Power section
NOMINAL IMPEDANCE (OHM):
8 ohm

POWER HANDLING:
1500 W RMS

PEAK POWER HANDLING:
6000 W PEAK

RECOMMENDED AMPLIFIER:
3000 W
Transducers
WOOFER:
18'' neo, 4.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
1500 W AES, 3000 W PEAK

SENSITIVITY (DB, 1W @ 1M):
100 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HANDLES:
Integrated hand carry points

POLE MOUNT/CAP:
Yes

GRILLE:
Metal

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
530 mm / 20.87 inches

DEPTH:
770 mm / 30.31 inches

HEIGHT:
639 mm / 25.16 inches

WEIGHT:
43 kg / 94.8 lbs
Shipping informations
PACKAGE WEIGHT:
48 kg / 105.82 lbs

PACKAGE DEPTH:
565 mm / 22.24 inches

PACKAGE WIDTH:
805 mm / 31.69 inches

PACKAGE HEIGHT:
675 mm / 26.57 inches
