RCF

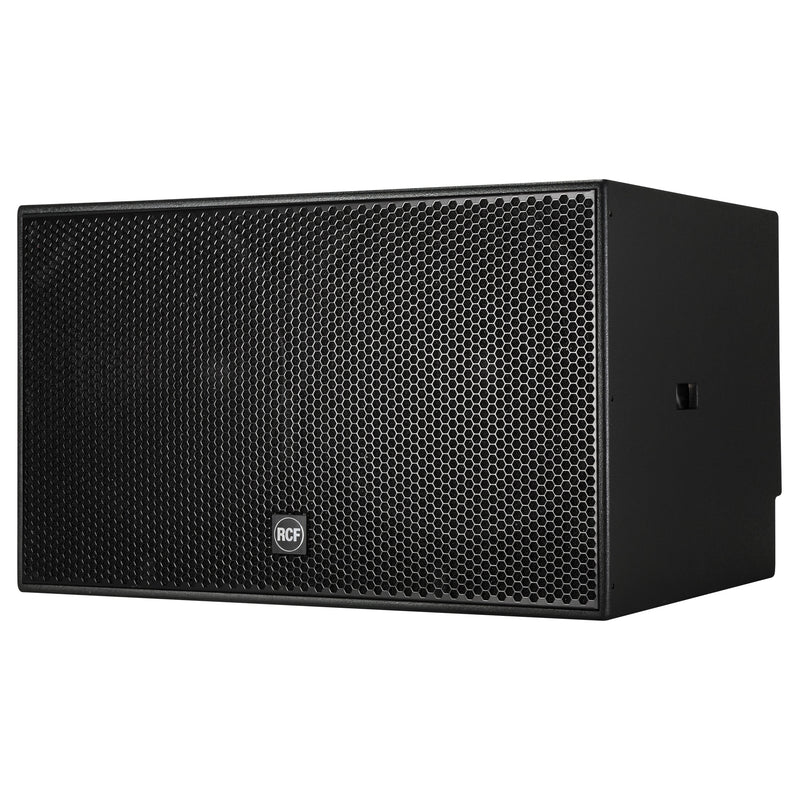

RCF S8028-MK2 Passive Dual 18" Bass Reflex Subwoofer

SKU: S8028-MK2
Regular price $2,799.00 inc. VAT
Regular price -26% $3,769.00 Sale price $2,799.00 inc. VAT
S 8028 II
BASS REFLEX SUBWOOFER
  • 2 X 18" HIGH-EFFICIENCY 4.0" VOICE-COIL WOOFER WITH INSIDE/OUTSIDE COIL TECHNOLOGY
  • SYSTEM POWER RATING 3000 WATT RMS
  • 141 DB MAXIMUM SOUND PRESSURE LEVEL
  • M20 STANDARD POLE MOUNT IN TOP SECTION OF CABINET

  • 2 x 18" high-efficiency 4.0" voice-coil woofer with Inside/Outside Coil Technology
  • 141 dB maximum sound pressure level
  • Response down to 30 Hz
  • System Power rating 3000 Watt RMS
  • M20 standard pole mount in top section of cabinet
  • Baltic Birch cabinet painted with black, heavy duty, textured epoxy
  • Recessed Speakon NL4 Input/Output
  • Protective metal grille, polyester fabric coated
The S8028 II is a very high-output, high power bass reflex subwoofer. The system is equipped with two advanced, hypervented 18” RCF precision woofers mounted in a bass reflex configuration. The cabinet design is optimised to achieve tight and maximised output. Each 18” features massive vented magnets and 4” copper voice coil and represents the state of the art of RCF precision transducers technology. The system is able to produce a Max SPL of 141 dB and handles 3000 Watts AES. The cabinet features two Neutrik Speakon™ connectors in a recessed input plate. A M20 pole mount adaptor is provided on the top of the cabinet.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE (-10DB):
30 Hz ÷ 200 Hz

MAX SPL @ 1M:
141 dB

SYSTEM SENSITIVITY:
101 dB
Power section
NOMINAL IMPEDANCE (OHM):
4 ohm

POWER HANDLING:
3000 W RMS

PEAK POWER HANDLING:
12000 W PEAK

RECOMMENDED AMPLIFIER:
6000 W
Transducers
WOOFER:
2 x 18'', 4.0'' v.c

NOMINAL IMPEDANCE (OHM):
8 ohm

INPUT POWER RATING:
1500 W AES, 3000 W PEAK

SENSITIVITY (DB, 1W @ 1M):
100 dB, 1W @ 1m
Input/Output section
INPUT CONNECTORS:
Speakon® NL4

OUTPUT CONNECTORS:
Speakon® NL4
Standard compliance
CE MARKING:
Yes
Physical specifications
COLOR:
Black

HANDLES:
Integrated hand carry points

POLE MOUNT/CAP:
Yes

GRILLE:
Metal

CABINET/CASE MATERIAL:
Baltic birch plywood
Size
WIDTH:
1045 mm / 41.14 inches

DEPTH:
770 mm / 30.31 inches

HEIGHT:
639 mm / 25.16 inches

WEIGHT:
80 kg / 176.37 lbs
Shipping informations
PACKAGE WEIGHT:
85 kg / 187.39 lbs

PACKAGE DEPTH:
805 mm / 31.69 inches

PACKAGE WIDTH:
1080 mm / 42.52 inches

PACKAGE HEIGHT:
675 mm / 26.57 inches
