RCF

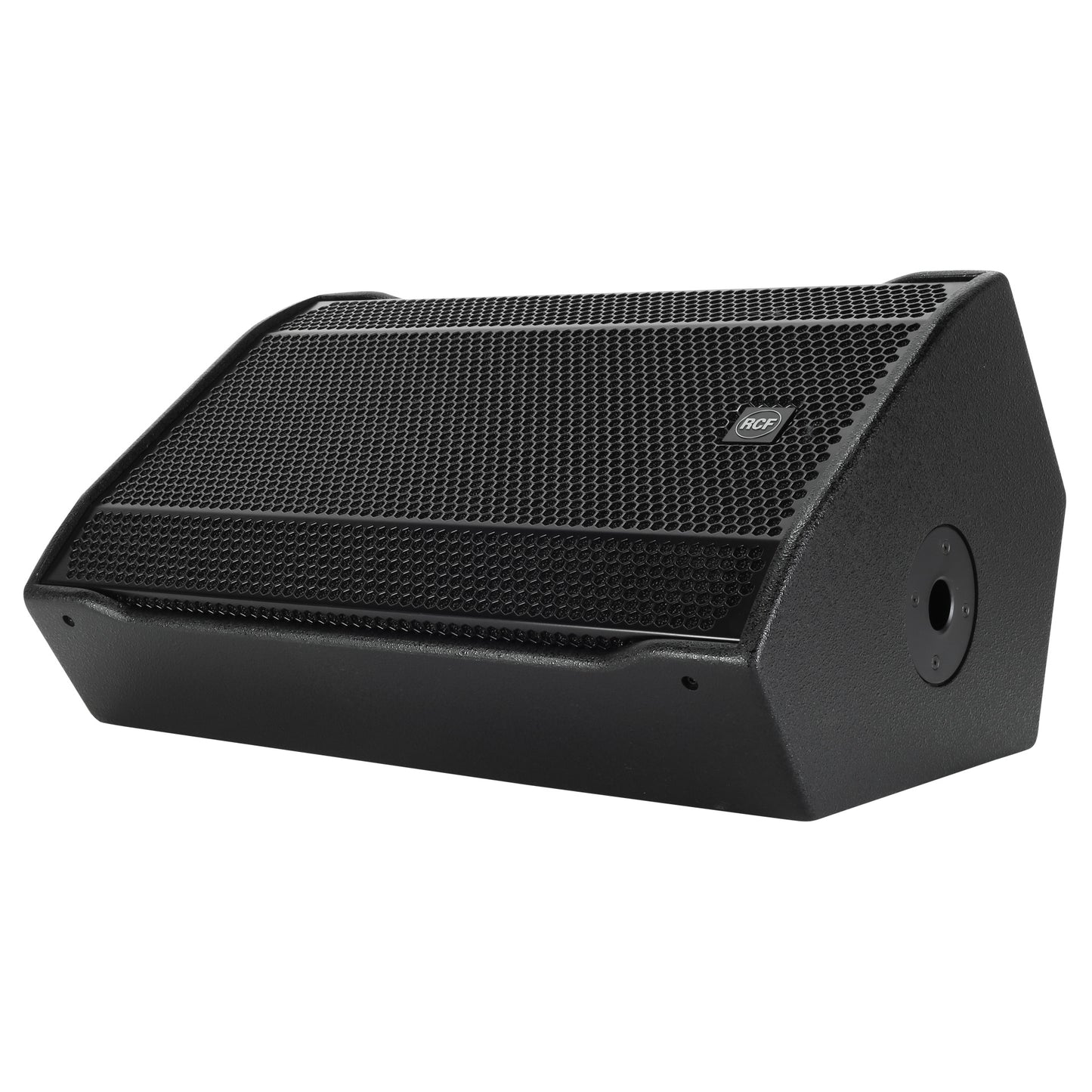

RCF ST12-SMA-II Active 12" 2-way High Output Stage Monitor

SKU: ST12-SMA-II
Regular price $1,349.00
Regular price -21% $1,699.00 Sale price $1,349.00
ST 12-SMA II
ACTIVE STAGE MONITOR
  • 1200 WATT
  • 130 DB MAX SPL
  • 90° X 60° COVERAGE
  • FIRPHASE FOR 0° PHASE RESPONSE
  • 1200 Watt
  • 130 dB max SPL
  • 90° x 60° coverage
  • FiRPHASE for 0° Phase Response
  • 12” Woofer, 2.5” v.c.
  • 1.0” C.Driver, 1.4 v.c.
  • Multifunctional cabinet
The ST 12 SMA II is an active ultra-compact and fully featured speaker for rental companies and musicians. Designed as a professional sound reinforcement solution with up to 130 dB SPL, low distortion and unmatched reliability, it shines in high powered music applications, DJ sets, and vocal reinforcement, with or without subwoofers.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
129 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1 x 1.0'', 1.4'' v.c

WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
1400 Hz

PROTECTIONS:
RMS, HF

LIMITER:
Soft Limiter
Power section
TOTAL POWER:
1200 W Peak, 600 W RMS

HIGH FREQUENCIES:
800 W Peak, 400 W RMS

LOW FREQUENCIES:
400 W Peak, 200 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
1 side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
318 mm / 12.52 inches

WIDTH:
594 mm / 23.39 inches

DEPTH:
400 mm / 15.75 inches

WEIGHT:
17.3 kg / 38.14 lbs
Shipping informations
PACKAGE HEIGHT:
604 mm / 23.78 inches

PACKAGE WIDTH:
352 mm / 13.86 inches

PACKAGE DEPTH:
412 mm / 16.22 inches

PACKAGE WEIGHT:
19 kg / 41.89 lbs
