Home » RCF ST15-SMA-II Active 15" 2-way High Output Stage Monitor
RCF

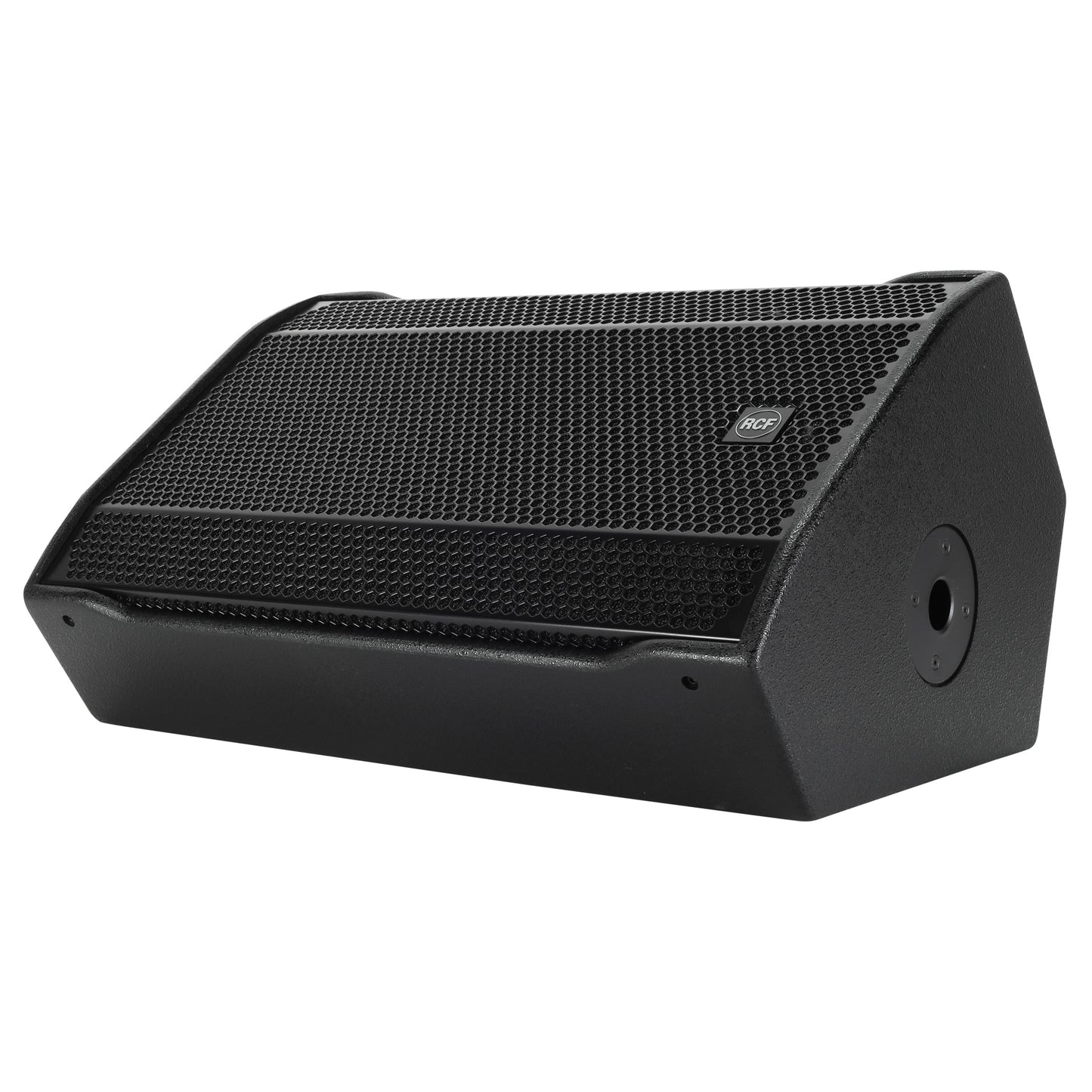

RCF ST15-SMA-II Active 15" 2-way High Output Stage Monitor

SKU: ST15-SMA-II
$1,499.00 inc. VAT
-25% $1,999.00 $1,499.00 inc. VAT
ST 15-SMA II
ACTIVE STAGE MONITOR
  • 1200 WATT
  • 131 DB MAX SPL
  • 90° X 60° COVERAGE
  • FIRPHASE FOR 0° PHASE RESPONSE
  • 1200 Watt
  • 131 dB max SPL
  • 90° x 60° coverage
  • FiRPHASE for 0° Phase Response
  • 15” Woofer, 2.5” v.c.
  • 1.0” C.Driver, 1.4 v.c.
  • Multifunctional cabinet
The ST 15 SMA II is an active ultra-compact and fully featured speaker for rental companies and musicians. Designed as a professional sound reinforcement solution with up to 131 dB SPL, low distortion and unmatched reliability, it shines in high powered music applications, DJ sets, and vocal reinforcement, with or without subwoofers.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
45 Hz ÷ 20000 Hz

MAX SPL @ 1M:
131 dB

HORIZONTAL COVERAGE ANGLE:
90°

VERTICAL COVERAGE ANGLE:
60°
Transducers
COMPRESSION DRIVER:
1.0'', 1.4'' v.c

WOOFER:
15'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR, Jack

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
CROSSOVER FREQUENCIES:
1400 Hz

PROTECTIONS:
RMS, HF

LIMITER:
Soft Limiter
Power section
TOTAL POWER:
1200 W Peak, 600 W RMS

HIGH FREQUENCIES:
400 W Peak, 200 W RMS

LOW FREQUENCIES:
800 W Peak, 400 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
1 side

POLE MOUNT/CAP:
Yes

GRILLE:
Steel

COLOR:
Black
Size
HEIGHT:
362 mm / 14.25 inches

WIDTH:
673 mm / 26.5 inches

DEPTH:
473 mm / 18.62 inches

WEIGHT:
20.3 kg / 44.75 lbs
Shipping informations
PACKAGE HEIGHT:
733 mm / 28.86 inches

PACKAGE WIDTH:
421 mm / 16.57 inches

PACKAGE DEPTH:
502 mm / 19.76 inches

PACKAGE WEIGHT:
21.7 kg / 47.84 lbs
