Home » RCF SUB-702AS-MK2 Active 12" Powered Subwoofer
RCF

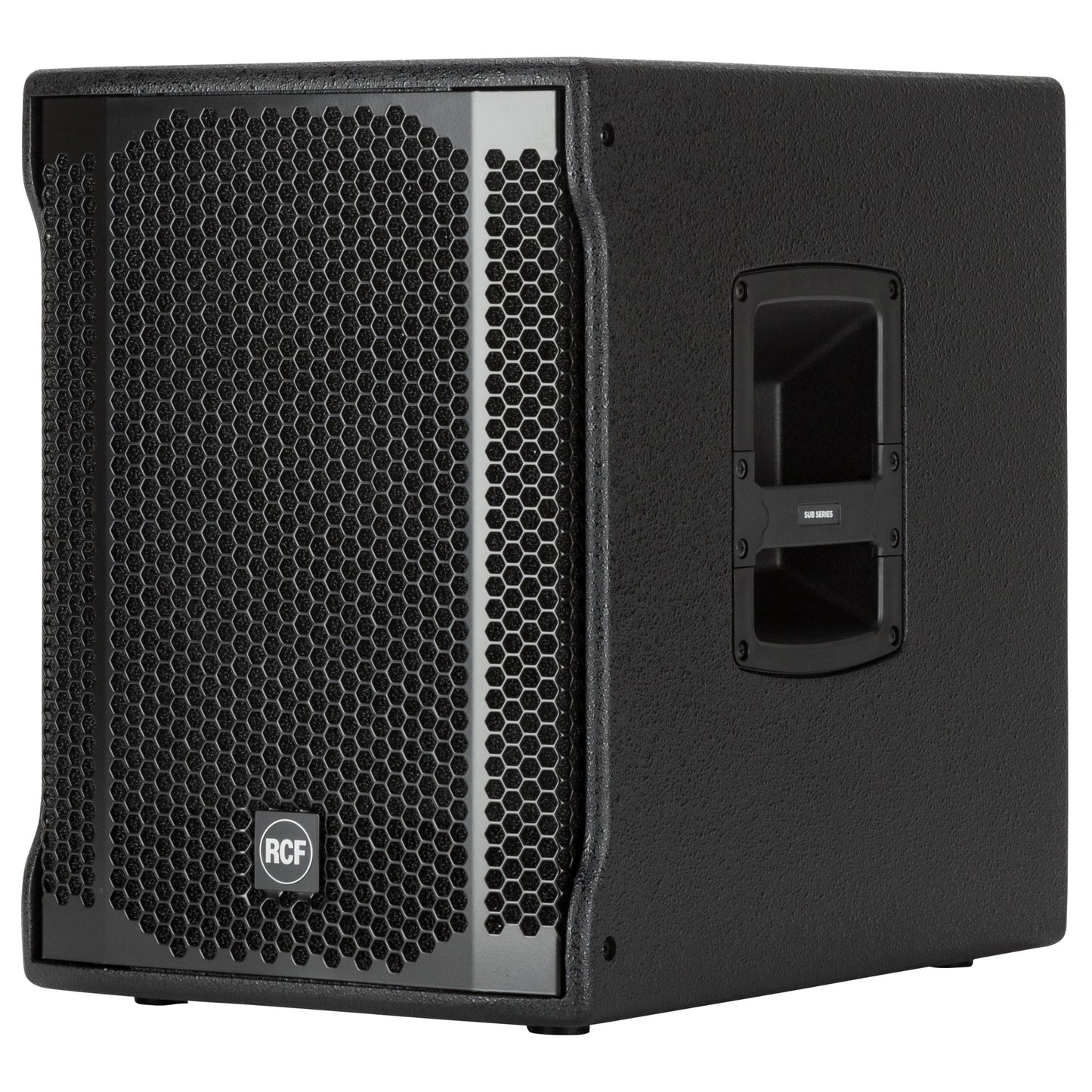

RCF SUB-702AS-MK2 Active 12" Powered Subwoofer

SKU: SUB-702AS-MK2
$949.00 inc. VAT
-23% $1,229.00 $949.00 inc. VAT

SUB 702-AS II
ACTIVE SUBWOOFER
  • 1400 WATT DIGITAL AMPLIFIER
  • 12" WOOFER, BASS REFLEX HOUSING
  • STEREO CROSSOVER
  • SWITCHABLE CROSSOVER FREQUENCIES
  • 1400 Watt Digital Amplifier
  • 12" Woofer, bass reflex housing
  • Stereo crossover
  • Switchable crossover frequencies
  • Phase-reverse switch
  • Electronic equalization, soft limiter and protection
  • Stereo XLR input, Stereo XLR signal output
Housing a 12” woofer, the SUB 702-AS II, is a very compact active sub enclosure and features a 1400 W powerful digital amplifier. It is the ideal complement to 8” or 10” speakers, creating small but powerful satellite systems with outstanding performance. Thanks to its compact size it can easily be carried and is very quick and easy to start using the built-in digital stereo crossover (DSP) with adjustable crossover frequency to connect the satellite.
SPECIFICATIONS
Acoustical specifications
FREQUENCY RESPONSE:
40 Hz ÷ 120 Hz

MAX SPL @ 1M:
129 dB
Transducers
WOOFER:
12'', 2.5'' v.c
Input/Output section
INPUT SIGNAL:
bal/unbal

INPUT CONNECTORS:
XLR

OUTPUT CONNECTORS:
XLR

INPUT SENSITIVITY:
-2 dBu/+4 dBu
Processor section
HI-PASS FREQUENCIES:
110 Hz

LOW-PASS FREQUENCIES:
80 Hz

PROTECTIONS:
Thermal, RMS

LIMITER:
Soft Limiter

CONTROLS:
Volume, EQ, Phase, Xover
Power section
TOTAL POWER:
1400 W Peak, 700 W RMS

LOW FREQUENCIES:
1400 W Peak, 700 W RMS

COOLING:
Convection

CONNECTIONS:
VDE
Standard compliance
CE MARKING:
Yes
Physical specifications
CABINET/CASE MATERIAL:
Baltic birch plywood

HANDLES:
2 Side

POLE MOUNT/CAP:
Yes

COLOR:
Black
Size
HEIGHT:
487 mm / 19.17 inches

WIDTH:
354 mm / 13.94 inches

DEPTH:
498 mm / 19.61 inches

WEIGHT:
19 kg / 41.89 lbs
Shipping informations
PACKAGE HEIGHT:
524 mm / 20.63 inches

PACKAGE WIDTH:
536 mm / 21.1 inches

PACKAGE DEPTH:
400 mm / 15.75 inches

PACKAGE WEIGHT:
22.4 kg / 49.38 lbs
